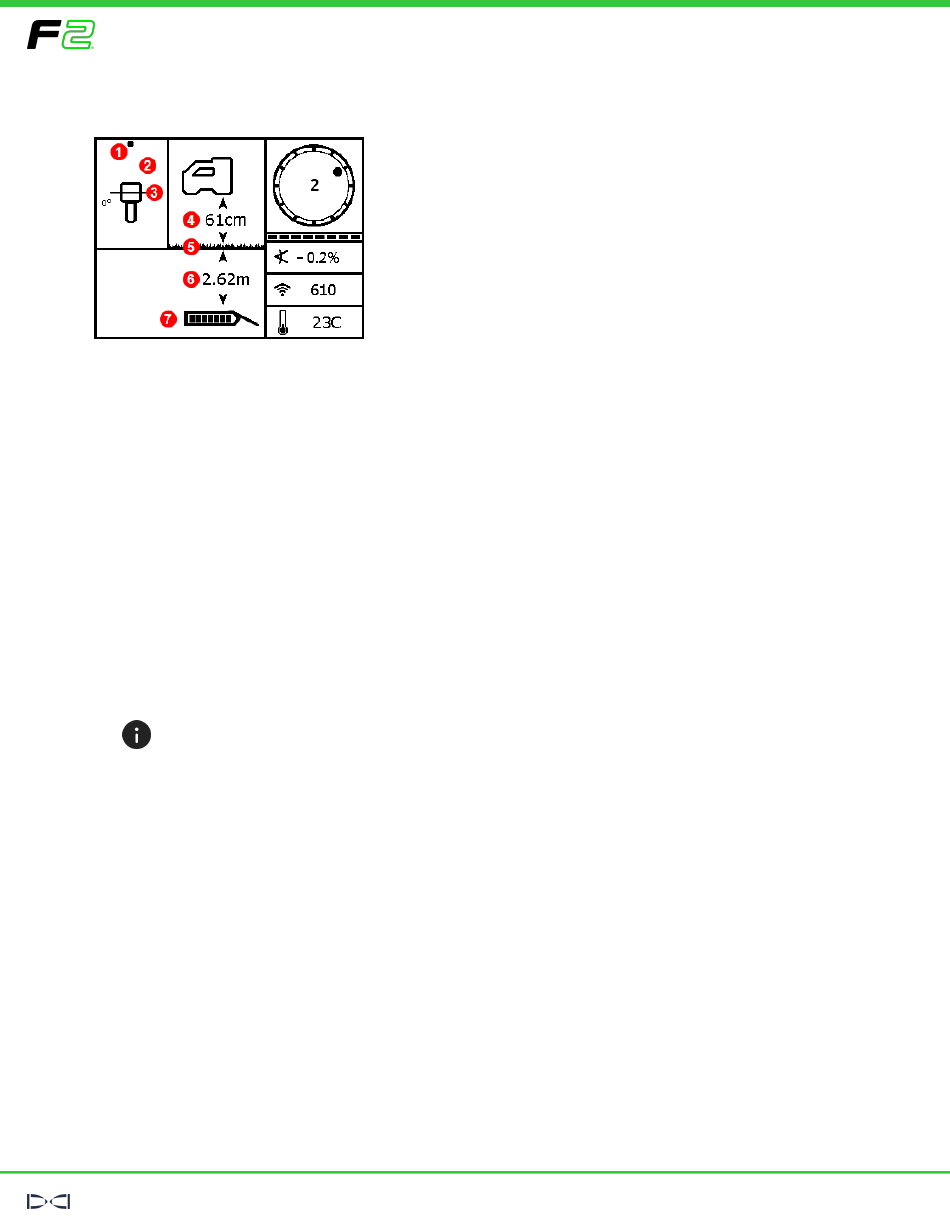

1. Locate point (front or rear)
2. Bird's-eye view
3. Locate Line (LL)
4. Height-Above-Ground (HAG) setting on
5. Ground level
6. Transmitter depth
7. Transmitter battery strength
When the HAG setting is disabled, the locator displays at ground
level and must be placed on the ground during depth readings.

PREDICTED DEPTH SCREEN

The Predicted Depth screen displays when the trigger is held with the locator
at the Front Locate Point (FLP).
DIGITAL CONTROL, INC
DIGITRAK FALCON F2 TOP TOGGLE
USER MANUAL
DCI DigiGuide
05.18.2024
11
