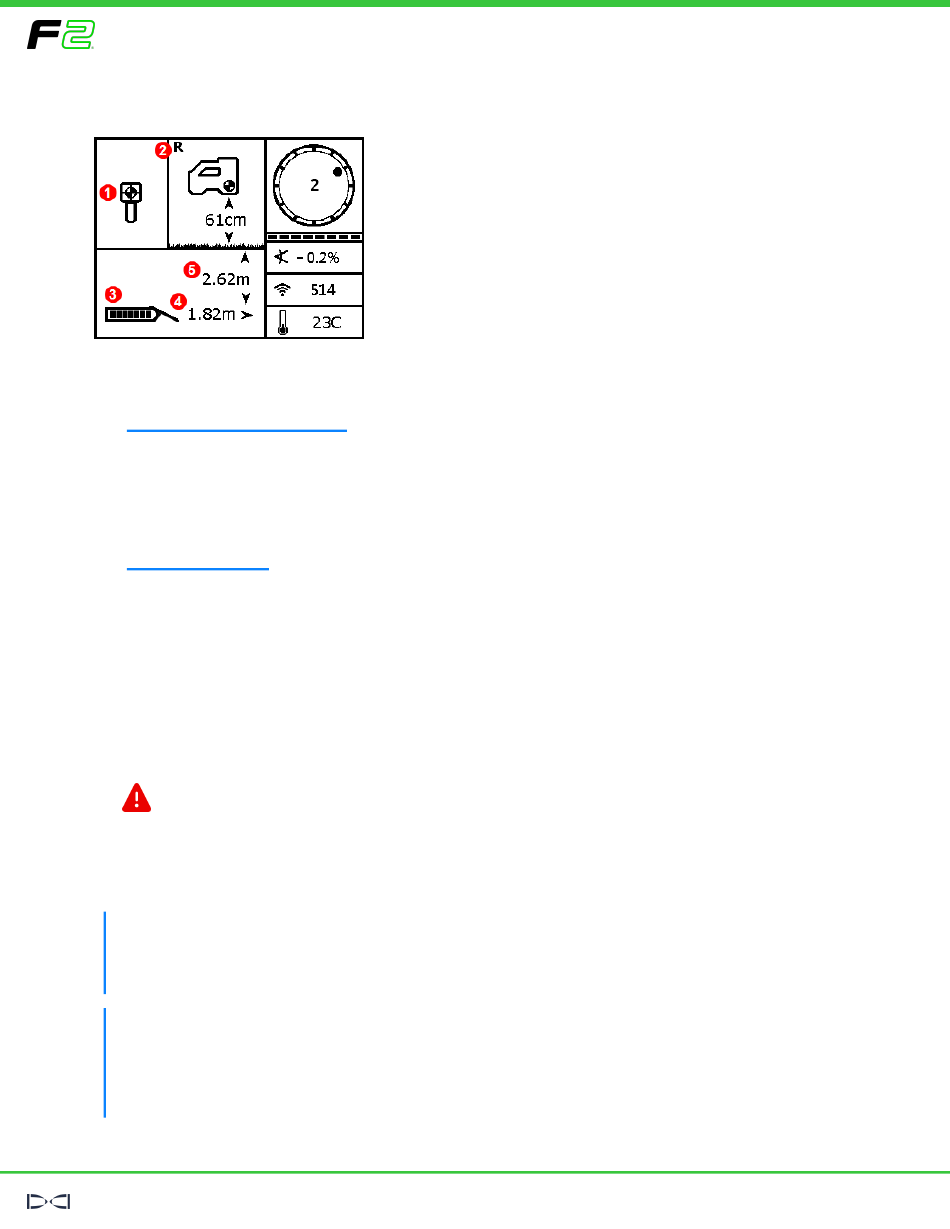

1. Ball-in-the-Box at FLP
Reference Lock indicator *
2.
3. Transmitter battery strength
4. Horizontal distance between transmitter and FLP
Predicted depth *
5.
The predicted depth is the depth the transmitter is calculated to be at when it
reaches the FLP if it continues on its current path.
In this example, if the drill head travels an additional 1.82 m at -0.2% pitch, it
will be directly below the locator at 2.62 m.
Do not take a predicted depth reading when the locator is over
the Rear Locate Point (RLP).
GLOSSARY DEFINITIONS
*REFERENCE LOCK INDICATOR
Indicates a reference signal has been obtained for displaying the locate line. Displays at
the top of the Locate Mode screen.
*PREDICTED DEPTH
The Predicted Depth screen displays when the trigger is held with the locator at the
Front Locate Point (FLP). The predicted depth is how deep the transmitter is calculated
to be when it reaches the front locate point if it continues on its current path. The
DIGITAL CONTROL, INC
of transmitter
