Using the Command and Response Table

The Command and Response Table for SIS Commands
table to represent variables in the command response fields. Command and response examples are shown
throughout the table. The ASCII to HEX conversion table (see figure 11) is for use with the command and
response table.

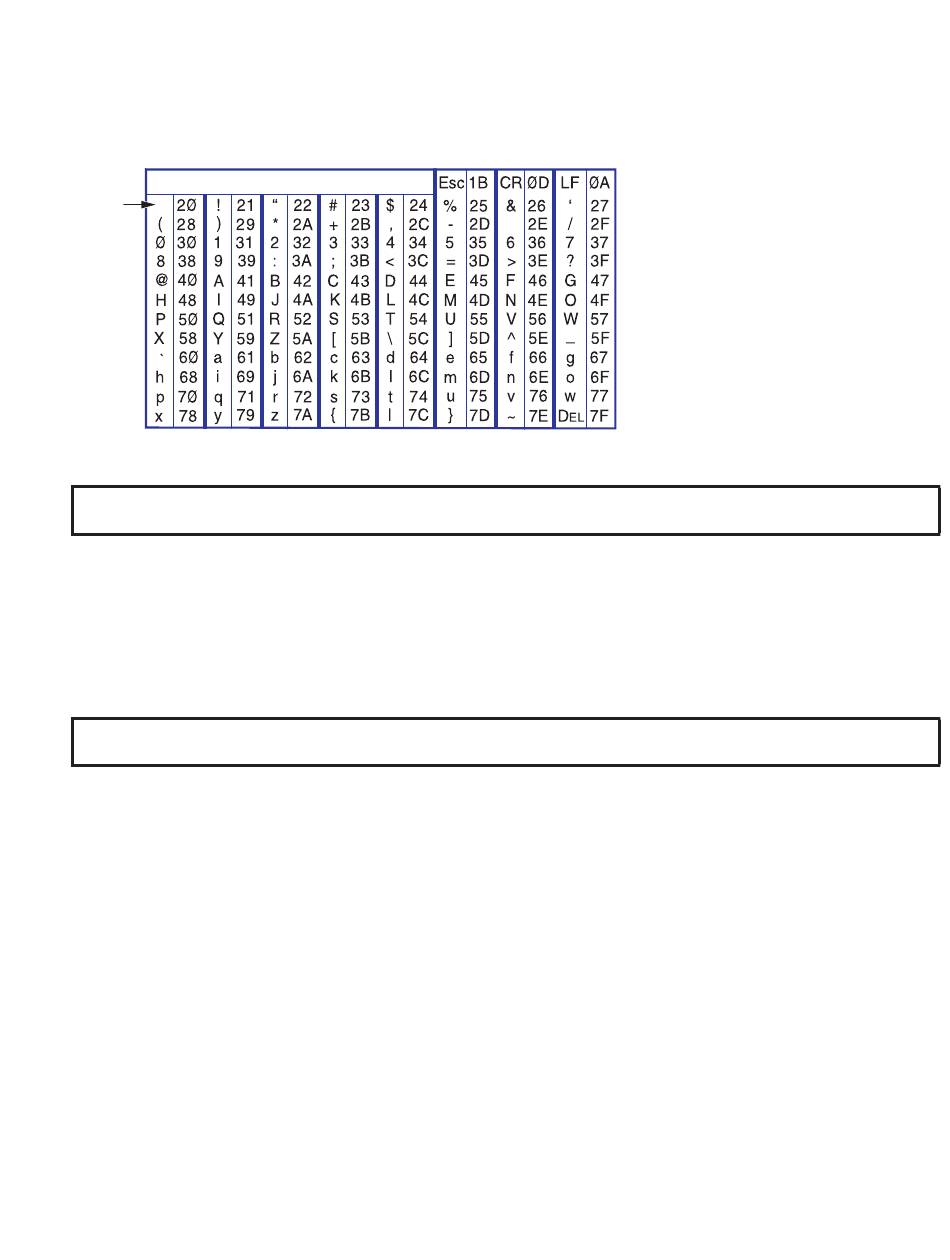

ASCII to Hex Conversion Table
Space
Figure 11. ASCII to Hex Conversion Table
NOTE: For commands and examples of computer or device responses used in this guide, the character "0" is
the number zero and "O" is the capital letter "o".

Symbol Definitions

] = CR/LF (carriage return with line feed)
| or } = Soft carriage return (no line feed)
• = Space
E
or W = Escape key
NOTE: If unit does not support or recognize the entered commands, nothing happens and no response is
issued.
X!
= Verbose mode
0 = Clear/none
1 = Verbose mode (default)
2 = Tagged responses for queries
3 = Verbose mode and tagged responses for queries
X@
= Unit name is a text string of up to 24 characters. Text string of up to 24 characters
Default = DTP2‑T‑201‑D
Alphanumeric characters and hyphens only
No distinction between upper and lower case
No spaces
First character must be a letter and the last character cannot be a hyphen
X#
= Firmware version to the second decimal place
X$
= Remote power
0 = No remote power (Off)
1 = DTP2 48 VDC (On)
begins on page 14. Symbols are used throughout the
•
DTP2 T 201 D • SIS Configuration and Control 15
