3. Insert the wall box into the opening (see figure 3). The rear connectors on the box or wall plate should fit
easily into the opening. Enlarge or smooth the edges of the opening as required.
Wall Stud
Signal
Output
Cable
Screws
or Nails

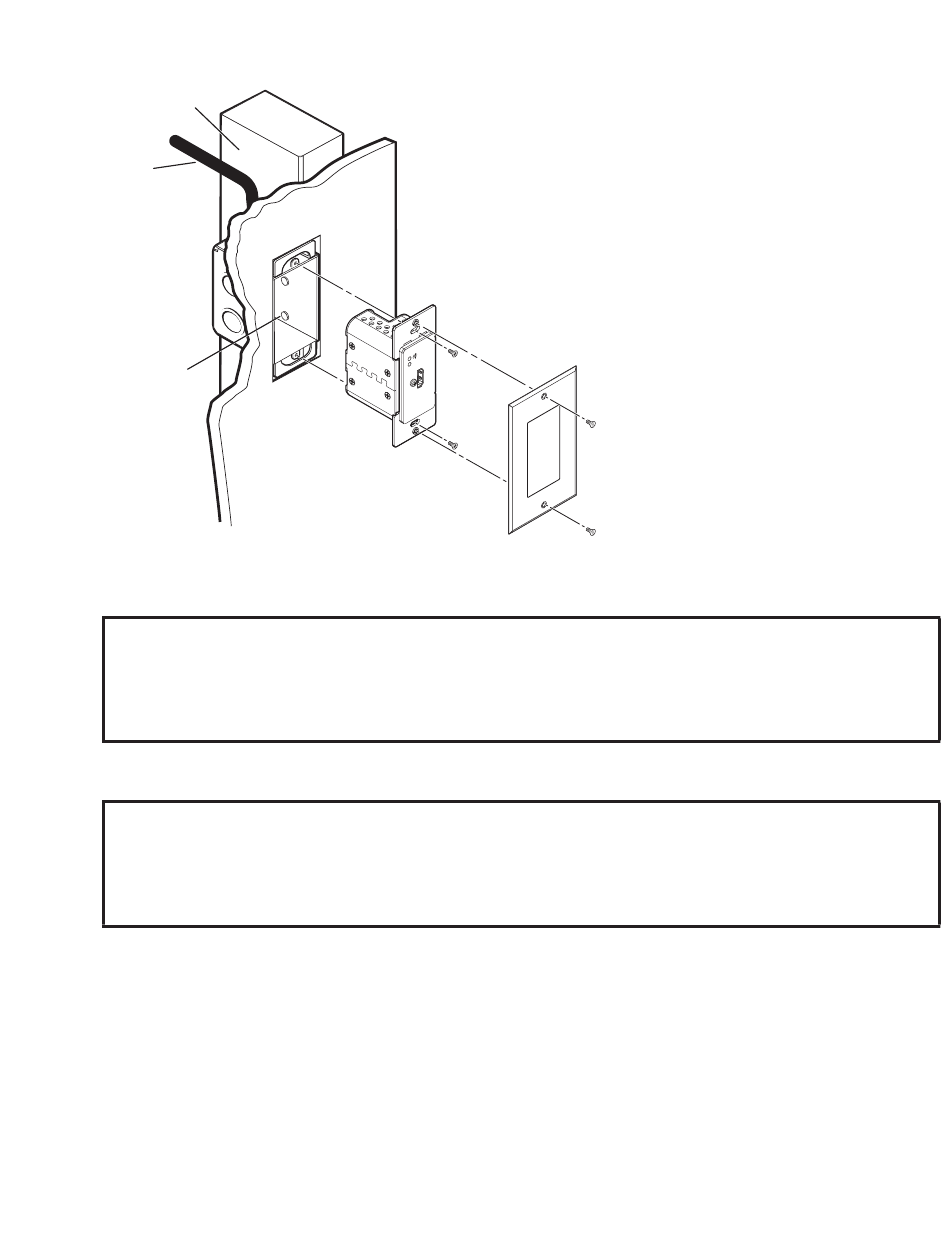

Figure 3. Typical DTP2 T 201 D Wall Installation
4. Secure the wall box with nails or screws, leaving the front edge flush with the outer wall or furniture surface.
NOTES:
•
If attaching the wall box to wood, use four #8 or #10 screws or four 10-penny nails. A minimum of
0.5 inch (13 mm) of screw thread must penetrate the wood.
•
If attaching the wall box to metal studs or furniture, use four #8 or #10 self-tapping sheet metal
screws or machine bolts with matching nuts.
5. Feed the twisted pair cables and, if applicable, the power cables through the opening and through the wall
box punch-out holes, securing them with cable clamps to provide strain relief.
NOTES:
•
In order to fit in the wall box, the twisted pair cables and RJ-45 connectors should not have a boot
installed.
•
One power supply can power both the transmitter and compatible receiver, so only one unit needs
a power supply (see
6. Trim back and insulate exposed cable shields with heat shrink to reduce the chance of short circuits.
To prevent short circuits, the outer foil shield can be cut back to the point where the cable exits the cable
clamp.
7. Connect the cables to the rear of the unit.
8. Connect front panel devices (see
the power supply, and test the transmitter and receiver system. Make cabling adjustments before final
installation, as the cables are inaccessible afterwards.
K
L IN
M I IN
H D
a
Extron
DTP2 T 201 D
Transmitter
Decorator-Style Faceplate
Power Supply Wiring
on page 11).
Transmitter Front Panel on the next page for connector details), restore
DTP2 T 201 D • Installation and Operation 5
