3D EXPOSURE
11.6

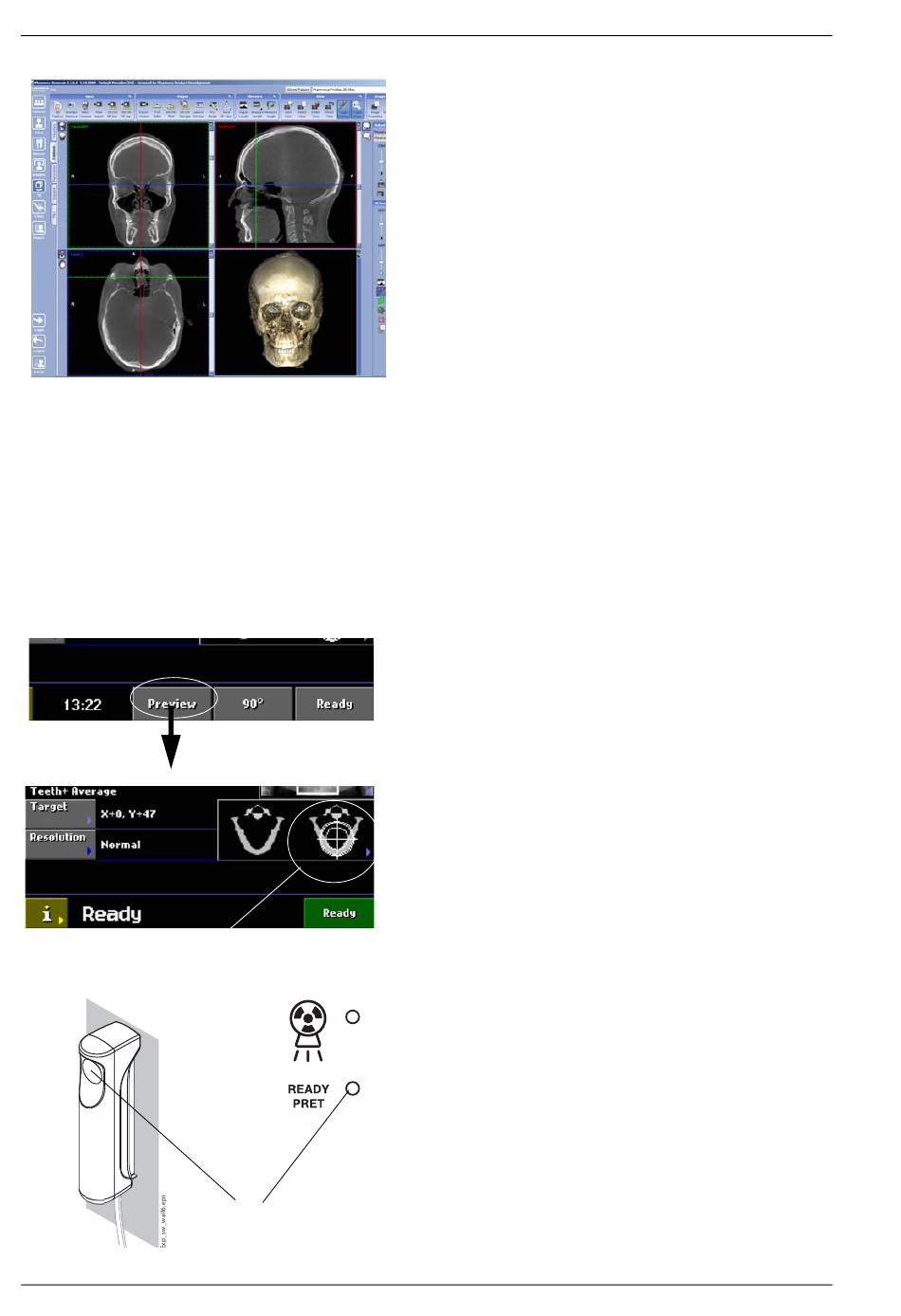

Taking preview images

Preview icon
appears here
50 Planmeca ProMax 3D Max
NOTE If the image consists of two horizontal or two vertical
Green ready
indicator light
When you have taken the exposure the images will show
on the computer screen. Note that you must accept the
image stitching function in the Romexis software program.
Refer to the Romexis User's Manual for more information.
volumes the preview function will show only the first
image volume (1/2).
You can set the X-ray unit so that two preview images will
be shown on the computer screen. This will allow you to
quickly check the position of the target area before you
take the actual image. Refer to section "Visual
adjustments (i250)" on page 31 for information on how to
activate the function.
The Preview field is shown at the bottom of the main
display when the preview function is switched on.
When you are ready to take preview images, touch the
Preview field. A preview icon will appear on the display.
The X-ray unit will be automatically moved to the ready
position.
Ask the patient to stand as still as possible.
Move to a protected area.
The green indicator lights and the word Ready will flash
while the X-ray unit moves to the ready position. They will
stop flashing when the X-ray unit has reached the ready
position.
