CASE DESIGN, CONT'D: LED LIGHT SWITCH LOCATIONS / LED LIGHTS / THERMOMETER

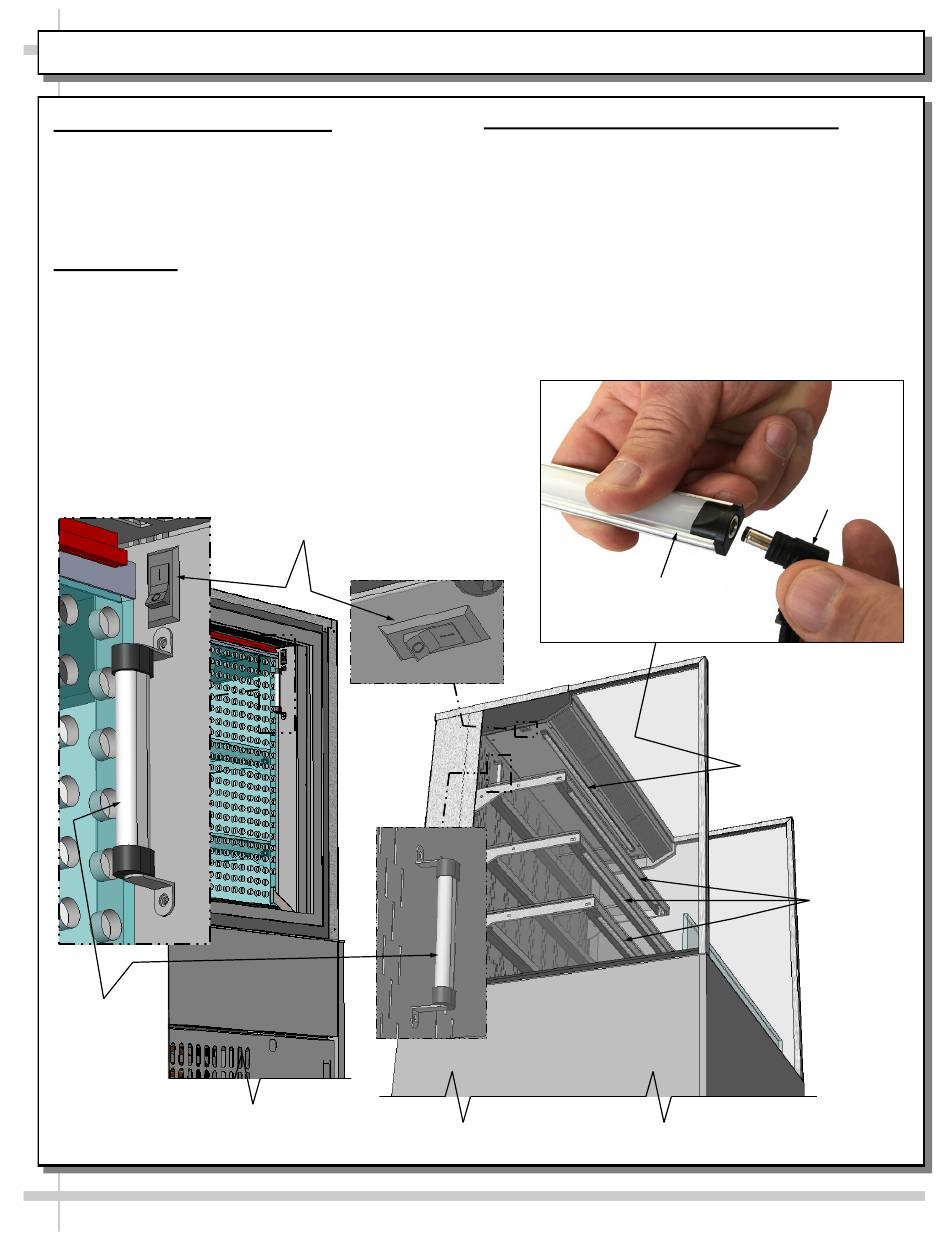

6. LED Light Switch Locations
• Cases with rear sliding doors have light switch
in column cover (for easy access at case rear).
• Cases with solid back rear plenums have light
switch in header.
• See illustrations below.
7. LED Lights
• LED lights are located at both header and
shelving of case (as shown below).
• Check that ALL of the light plugs are properly
connected to the LED light.
• Plug must be inserted ALL THE WAY into the
LED light orifice (with no gap) to work properly.
• See TROUBLESHOOTING section in manual
if LED lights malfunction.
Thermometer
--- Case With Rear Sliding Doors ---
Light Switch
--- Case With Solid Back Rear Plenum ---
8. Thermometer Function & Placement
• Cases with lower rear sliding doors have
different thermometer location than units with solid
back rear lower plenums (as shown in
illustrations below).
• Thermometer provides temperature of
refrigerated section of case.
• Thermometers reflect warmest air temperature in
merchandiser. They do not provide actual food
temperature.
• Use probe thermometers to determine actual
product temperatures.
LED Light
18
Plug
LED Light (At
Underside Of Header)
LED Lights
(At Underside
Of Shelves)
