CASE DESIGN, CONT'D: REAR SLIDING DOOR REMOVAL / REAR PERFORATED PLENUM CONTROL
9. Rear Sliding Door Removal
• To remove rear sliding doors, move rear doors
toward center of the case.
•
Individually lift each door up toward the top of
the case; pivot the bottom of the door out.
• Return doors to case in reverse order they
were removed.
10. Rear Perforated Plenum Control
• Optional acrylic perforated plenums are shown.
Your unit may have solid back panel.
•
Units with acrylic perforated plenums have sliding
doors with angled brackets that insert into acrylic
perforated plenum slots (as shown below).
• As doors open and close, acrylic perforated
plenums follow.

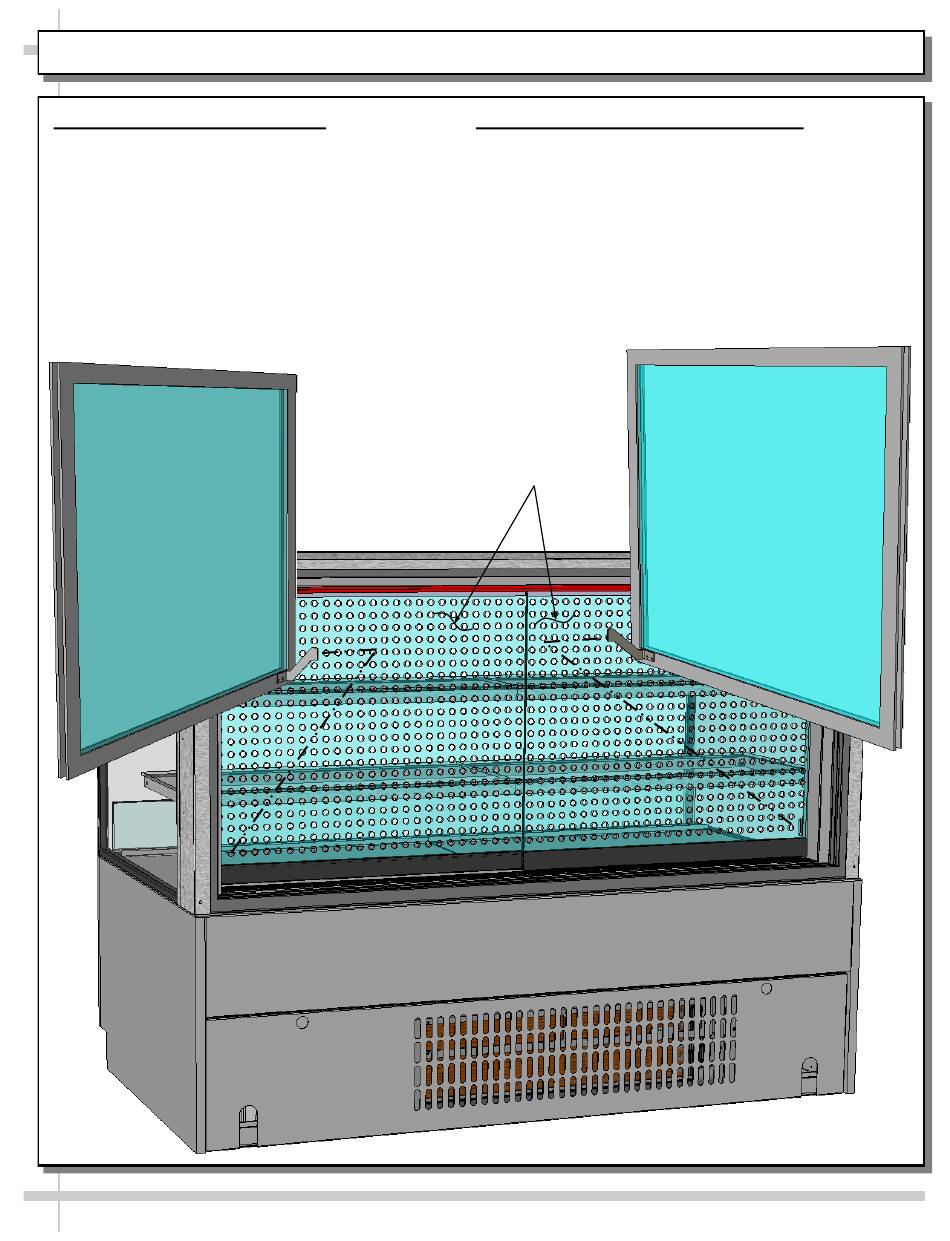

Acrylic Perforated
Plenums (Optional)
