CASE DESIGN, CONT'D: REAR VIEW OF FREE STANDING, SELF-SERVICE MERCHANDISERS

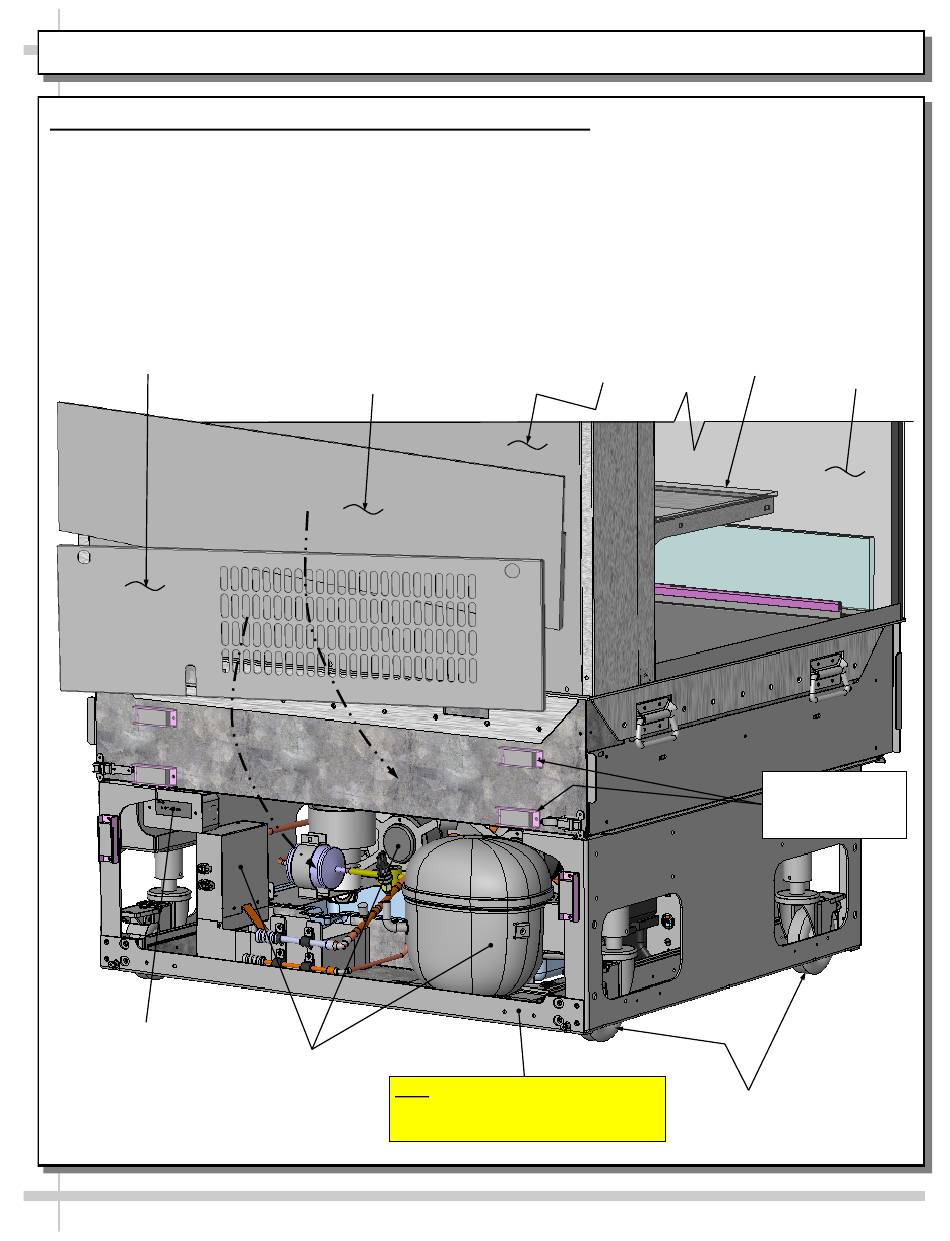

2. Rear View Of Free Standing, Self-Service Merchandisers
• Model illustrated below may not reflect every feature or option of your particular merchandiser.
• Solid back rear panel is shown. Rear sliding doors with acrylic perforated plenums may be on your model.
• Power cord route may differ depending upon customer request.
• See previous page for front view of merchandiser.
Air Intake Grille
(Removed For Illustrative
Purposes Only)
Field
Access Box
Lower Back Panel Shown
Removed From Case (Attaches
To Case Via Magnets)
Condenser
Package
Note: Do Not Remove This Shipping
Brace (As It Is Opposite Condenser
Package Access Side Of Case).
Solid Back Rear Panel /
May Be Rear Sliding Doors
On Certain Cases.
14
Glass End
Shelving
Panel (Typ.)
Magnets For Rear
Panel & Air Intake
Grille (Typ.)
Casters (Typ.)
