INSTALLATION, CONT'D: PLUG IN UNIT / MAIN POWER SWITCH / TURN ON LED LIGHTS

9. Plug Case In / Turn Main Power Switch On
• Power cord with plug is factory-supplied.
• Plug case into customer-supplied electrical outlet.
• Note 1: Partially-disassembled view at right is
shown with casters removed for illustrative
purposes only. View/location of floor receptacle is
for illustrative purposes only.
• Note 2: Due to space constraints, it may be
necessary to pull out condenser package to
maneuver power cord plug around components
and into receptacle.
• Turn main power switch on.
• Check that case is energized. Lift deck pans to
confirm that fans are rotating).
• Turn on LED light switch at front-left header.
10. Turn On LED Lights
• See CASE DESIGN, CONT'D: LED LIGHTS /
LED LIGHT SWITCH / THERMOMETER section
in manual for LED light switch location.

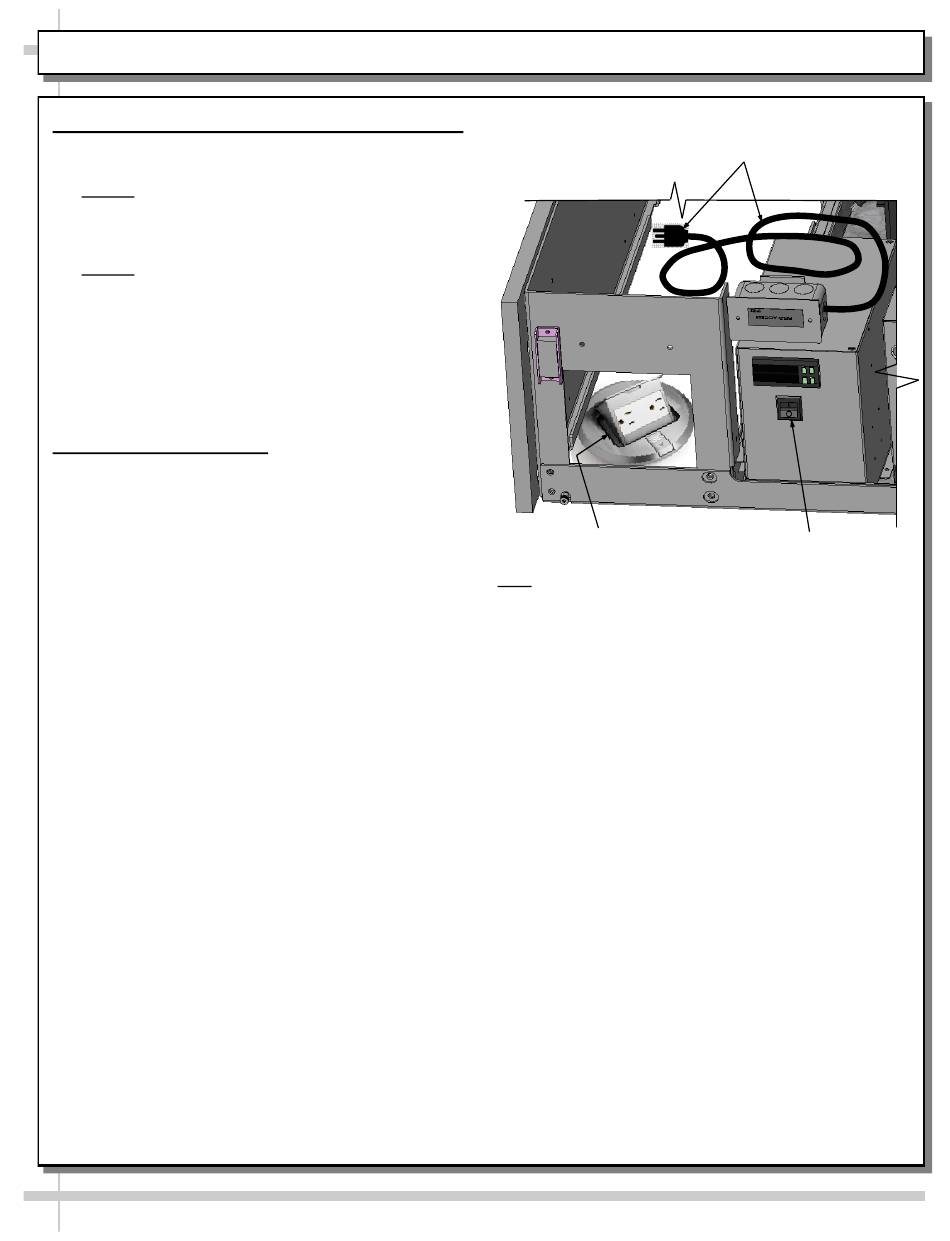

Customer Supplied Receptacle
(Sample Floor Unit Illustrated).
Note: Casters Removed For
Illustrative Purposes Only.
9
Factory-Supplied Power
Cord With Plug
Main Power
Switch
