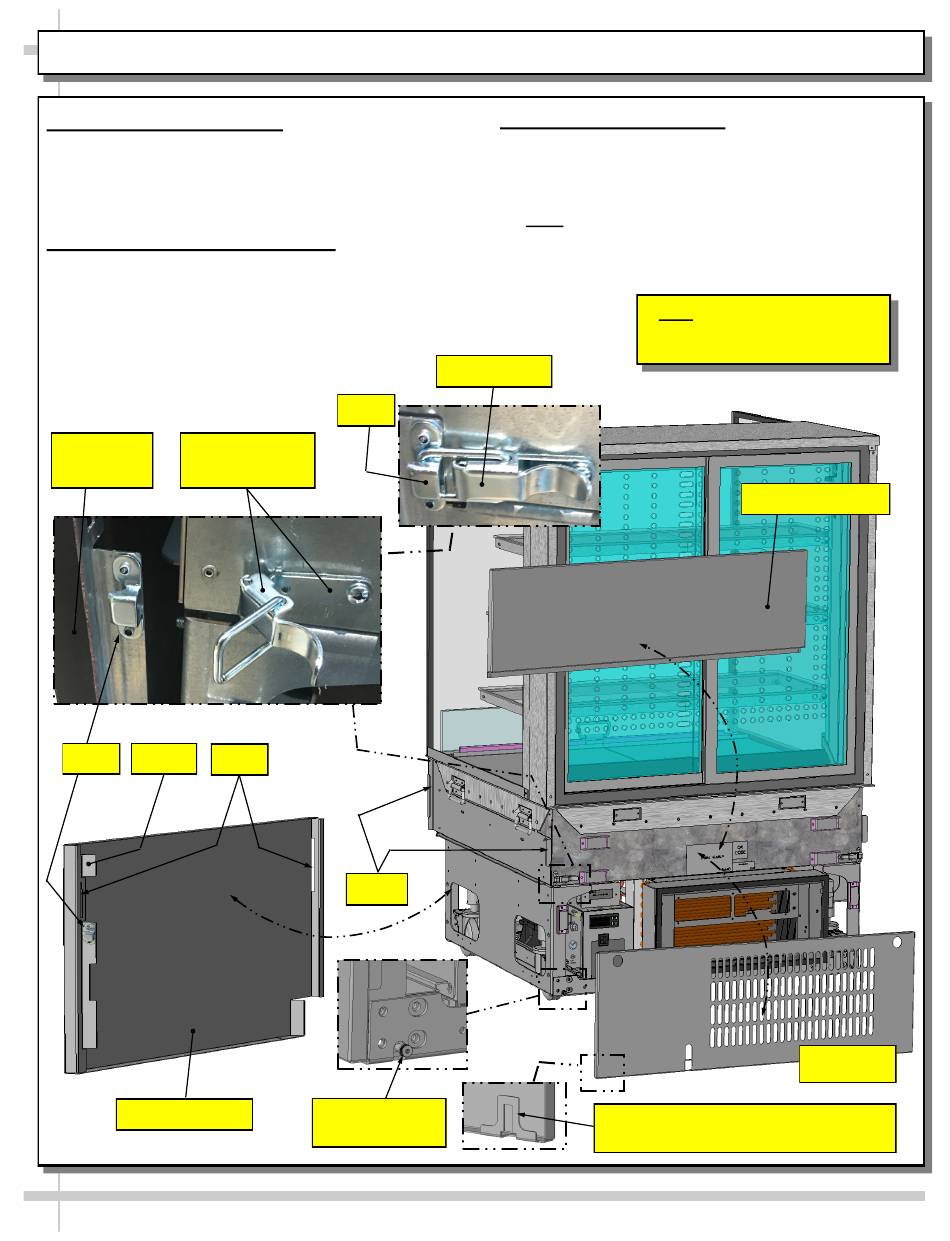

INSTALLATION, CONT'D: ATTACHING SIDE PANELS, REAR PANEL AND REAR GRILLE

14. Attaching Side Panels
• Attach side panels to case using slot/hook method.
• Use latches at case rear to firmly attach side
panels to case.
• See illustrations below.
15. Attaching Rear Upper Panel
• Place rear upper panel onto care rear.
• Four (4) magnets will hold it firmly in place.
• See illustration below
Side Panel Unlocked Latch
(Typ.)
Hook Inserts
Slots
Side Panel (Typ.)
Hook
(Typ.)
Hooks
Shoulder Screw
(Typ.)
16. Attaching Rear Grille
• Use finger holes to place rear grille's inner hooks
onto case rear's lower shoulder screws.
•
Snap onto case's two (2) rear vertical magnets.
>> Note: Components may be removed in reverse
order they were shown being attached on this sheet.
Locked Latch
Rear Grille Inner Hook (Grille Reversed
11
Note: Illustration shown may
not reflect every feature or
option of your particular case.
Rear Upper Panel
Rear Grille
For Illustrative Purposes Only)
