INSTALLATION, CONT'D: SHIPPING BRACE / ATTACHING FRONT PANEL COMPONENTS / HANDLES
11. Remove Shipping Brace
• Shipping brace keeps condenser package secure
during shipment and while positioning case.
• After case has been moved into position, remove
shipping brace at air intake side of condenser
package only (opposite end of that shown below).
• Note: Shipping Brace Is ONLY To Be Removed
From Air Intake Side of Condenser Package!

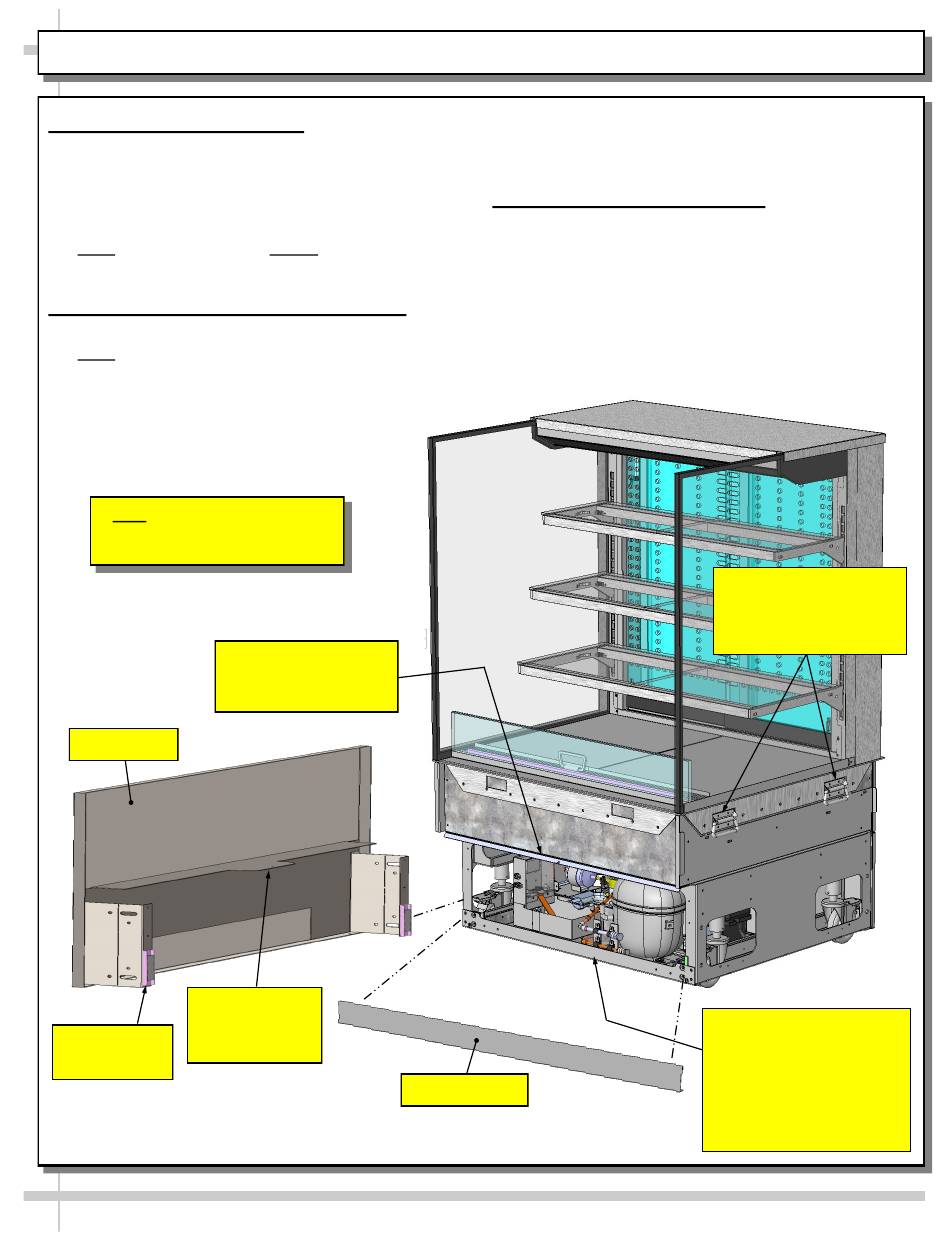

12. Attaching Front Panel Components
• Carefully remove components from packaging.
• Note: All front panel components may be attached
to case via magnets (WITHOUT screw
attachments).
• Attach front toe-kick to case (via lower magnets).
• Slide front panel horizontal support bracket
into case's support slot (line up arrows).
Note: Illustration shown may
not reflect every feature or
option of your particular case.
Support Slot (For Front
Front Panel
Front Panel
Horizontal
Support Bracket
Front Panel
Magnet (Typ.)
Panel's Horizontal
Support Bracket)
Front Toe-Kick
• Then, slide front panel into case until it attaches
to case via lower magnets.
• See illustration below.
13. Handles On Sides of Case
• Handles may remain on case after it has been
moved into position and cladding is attached.
• However, if handles interfere with the placement
of cladding, they may be removed.
>> See Next Page For Instructions on ATTACHING
SIDE PANELS, REAR PANEL AND GRILLE.
10
Handles (on Both Sides
of Case) May Be
Removed If They
Interfere With Cladding.
Shipping Brace Stays In
Air Exhaust Side of Case.
It Is ONLY To Be
Removed From Air Intake
Side Of Condenser
Package (At Opposite
End of Illustrated Case).
