Operating Instructions
-
2235A lnstructlon
4.
Verify proper fuse value (1.25 A, 250 V , slow blow). INSTRUMENT COOLING
5.
Reinstall the fuse (or replacement fuse) and the
Always maintain adequate instrument cooling. The
fuse-holder cap.
ventilation holes on both sides of the instrument cabinet
and on the rear panel must remain free of obstruction.
INSTRUMENT REPACKAGING
Reference Stnduda Abbrevlatlona:
ANSI-Amerlcm National Stmdarda Inatnute
AS-Standard. Aaaoclatlon of Auatralla
BS-Bdtlah Standard* lnstnutlon
CEE-lnternatlonal Commlaalon on Rulea for the Approval of Electrlcal
IEC-lnternatlonal Electrotechnkal Commlsslon
NEMA- Natlonal Electrlcal Manulacturer'a Aaaoclatlon
SEV-Schwelrervlacher Elektrotechnlacher Vereln
UL- Underwdtera Laboratorlea Inc.
7683- 15

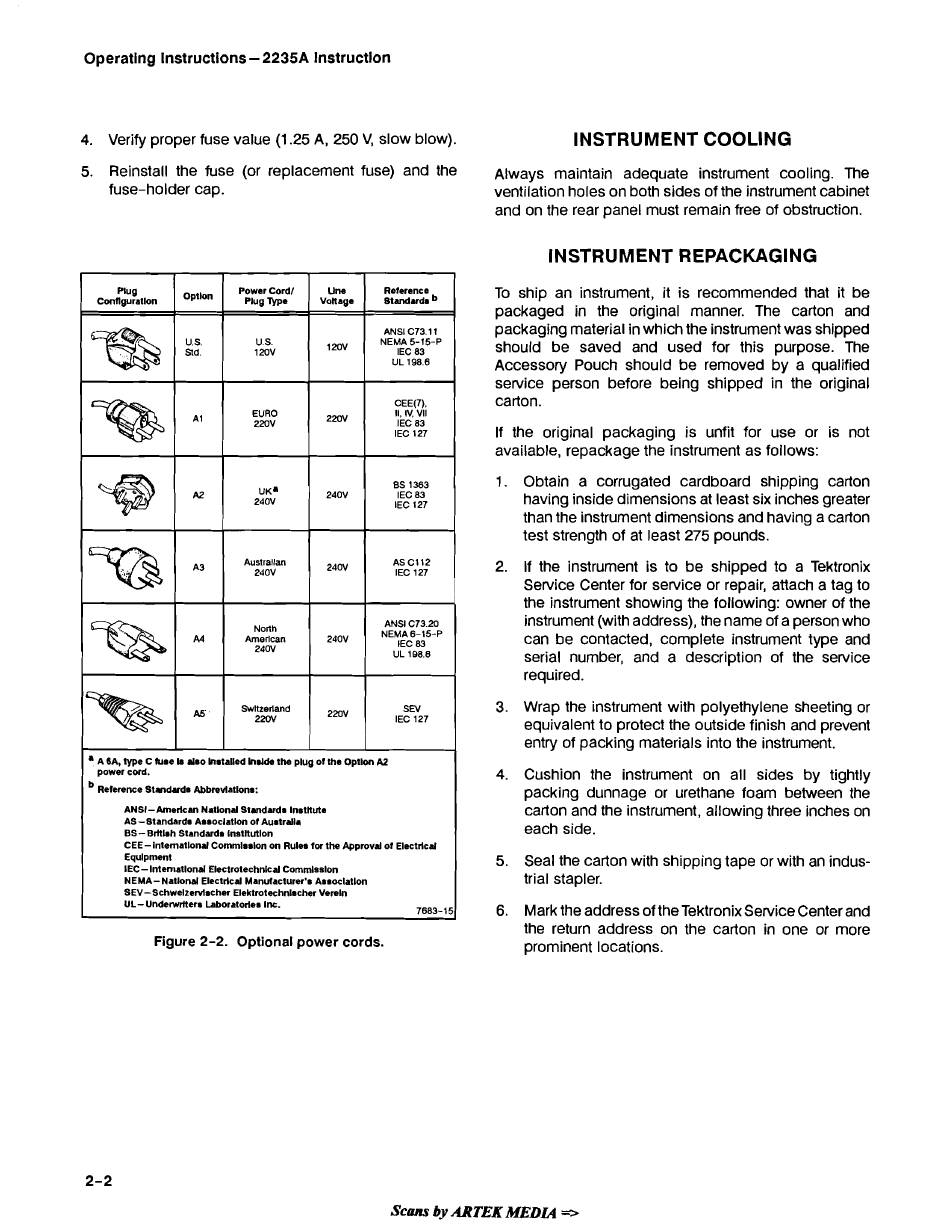

Figure 2-2. Optional power cords.
T o ship an instrument, it is recommended that it be
packaged in the original manner. The carton and
packaging material in which the instrument was shipped
should be saved and used for this purpose. The
Accessory Pouch should be removed by a qualified
service person before being shipped in the original
carton.
If the original packaging is unfit for use or is not
available, repackage the instrument as follows:
1. Obtain a corrugated cardboard shipping carton
having inside dimensions at least six inches greater
than the instrument dimensions and having a carton
test strength of at least 275 pounds.
2. If the instrument is to be shipped to a Tektronix
Service Center for service or repair, attach a tag to
the instrument showing the following: owner of the
instrument (with address), the name of a person who
can be contacted, complete instrument type and
serial number, and a description of the service
required.
3. Wrap the instrument with polyethylene sheeting or
equivalent to protect the outside finish and prevent
entry of packing materials into the instrument.
4.
Cushion the instrument on all sides by tightly
packing dunnage or urethane foam between the
carton and the instrument, allowing three inches on
each side.
5. Seal the carton with shipping tape or with an indus-
trial stapler.
6. Mark the address of the Tektronix Service Center and
the return address on the carton in one or more
prominent locations.
