Section 1
-
2235A
lnstructlon

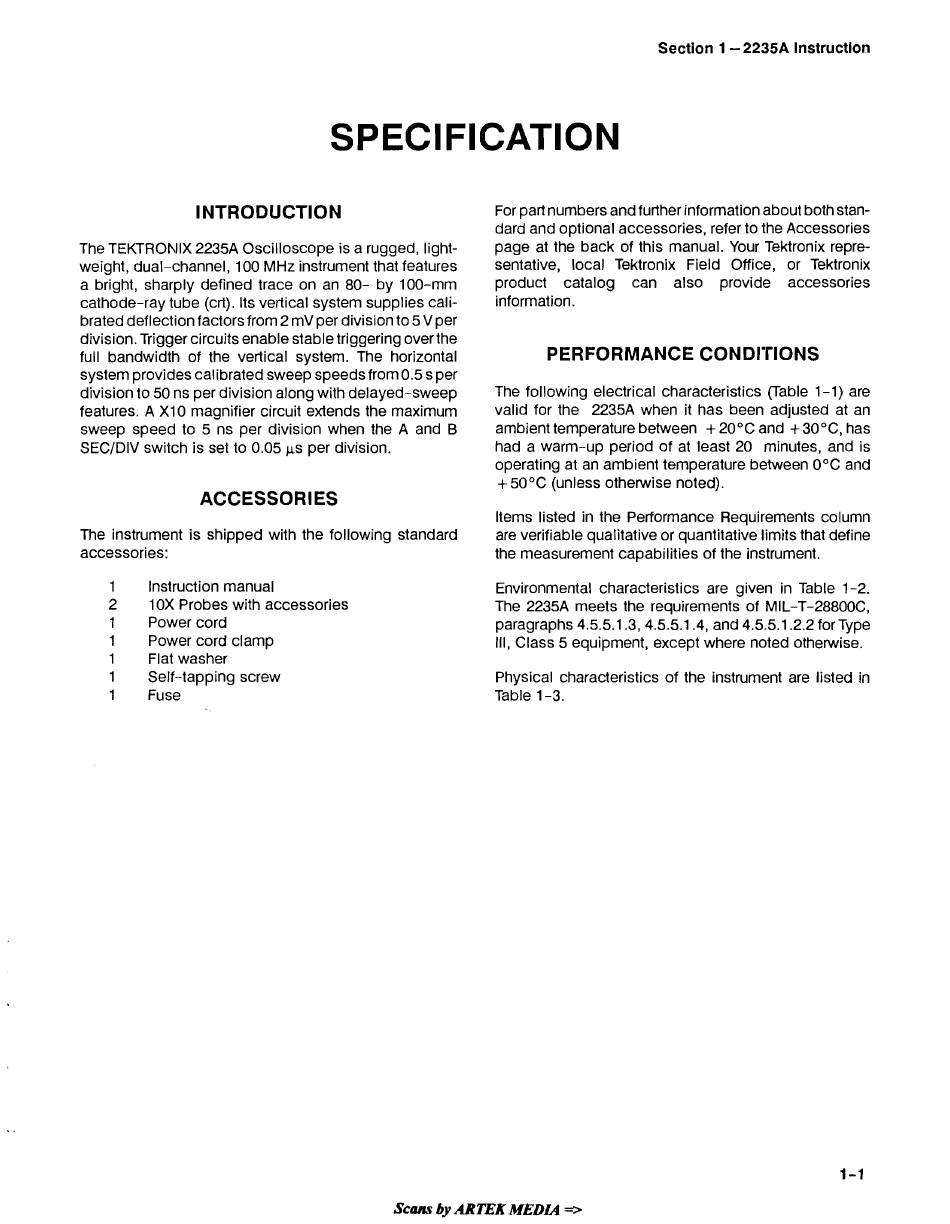

SPECIFICATION
INTRODUCTION
The TEKTROhllX 2235A Oscilloscope is a rugged, light-
weight, dual-channel, 100 MHz instrument that features
a bright, sharply defined trace on an 80- by 100-mm
cathode-ray tube (crt). Its vertical system supplies cali-
brated deflection factors from 2 mV per division to 5 V per
division. Trigger circuits enable stable triggering over the
full bandwidth of the vertical system. The horizontal
system provides calibrated sweep speeds from 0.5 s per
division to 50 ns per division along with delayed-sweep
features. A XI 0 magnifier circuit extends the maximum
sweep speed to 5 ns per division when the A and B
SECIDIV switch is set to 0.05 k s per division.
ACCESSORIES
The instrument is shipped with the following standard
accessories:
1 Instruction manual
2 1 O X Probes with accessories
1 Power cord
1 Power cord clamp
1 Flat washer
1 Self-tapping screw
1 Fuse
For part numbers and further information about both stan-
dard and optional accessories, refer to the Accessories
page at the back of this manual. Your Tektronix repre-
sentative, local Tektronix Field Office, or Tektronix
product catalog can also provide accessories
information.
PERFORMANCE CONDITIONS
The following electrical characteristics (Table 1-1) are
valid for the 2235A when it has been adjusted at an
ambient temperature between
+
20°C and
+
30°C, has
had a warm-up period of at least 20 minutes, and is
operating at an ambient temperature between O°C and
+
50°C (unless otherwise noted).
Items listed in the Performance Requirements column
are verifiable qualitative or quantitative limits that define
the measurement capabilities of the instrument.
Environmental characteristics are given in Table 1-2.
The 2235A meets the requirements of MIL-T-28800C,
paragraphs 4.5.5.1.3, 4.5.5.1.4, and4.5.5.1.2.2forType
Ill, Class 5 equipment, except where noted otherwise.
Physical characteristics of the instrument are listed in
Table 1-3.
