Check Single Sweep Operation - Tektronix 2235A Instruction Manual

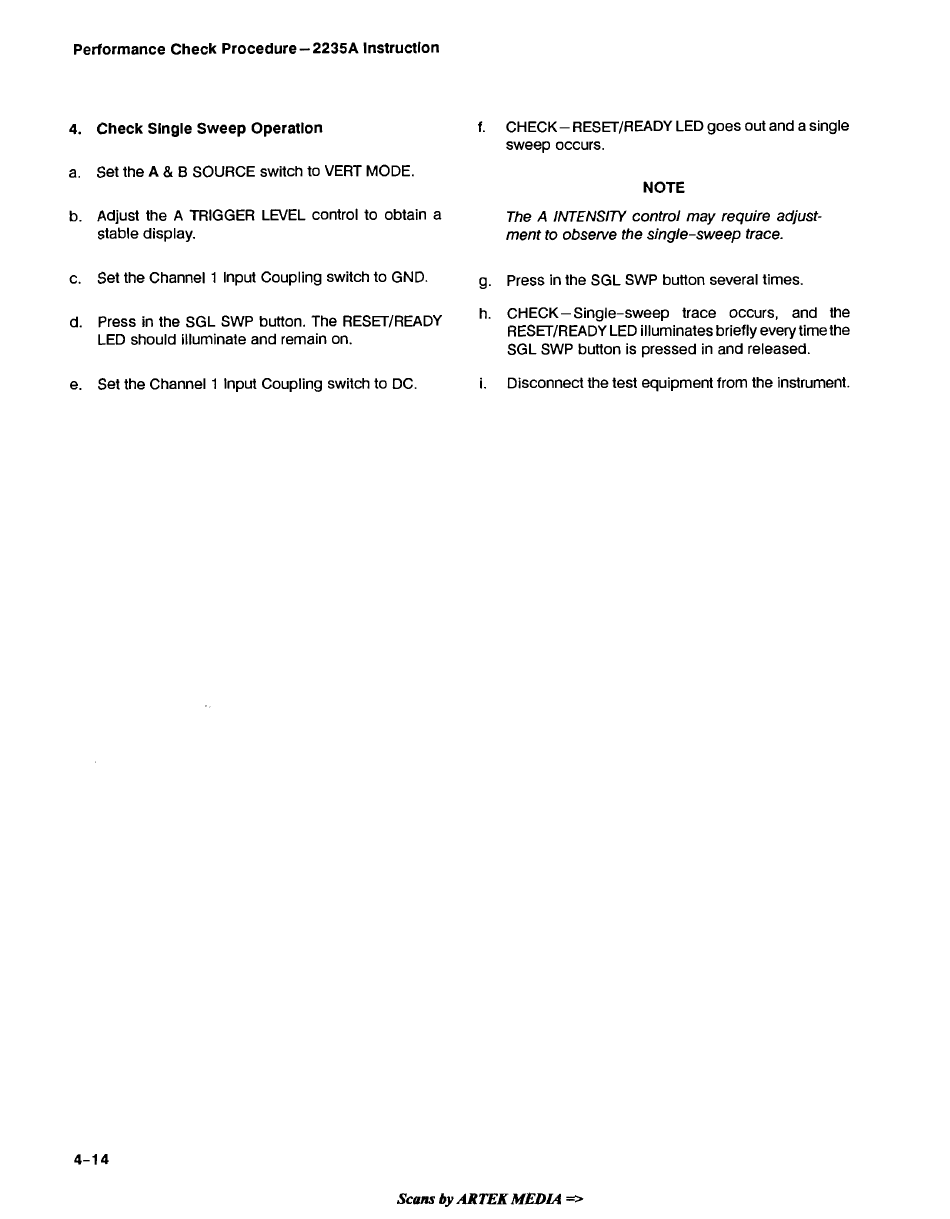

Performance Check Procedure
-
2235A lnstructlon
4.
Check Slngle Sweep Operatlon
a. Set the A & B SOURCE switch to VERT MODE.
b. Adjust the A TRIGGER LEVEL control to obtain a
stable display.
c. Set the Channel 1 lnput Coupling switch to GND.
d. Press in the SGL SWP button. The RESETIREADY
LED should illuminate and remain on.
e. Set the Channel 1 lnput Coupling switch to DC.
f. CHECK- RESET/READY LED goes out and a single
sweep occurs.
NOTE
The A INTENSITY control may require adjust-
ment to observe the single-sweep trace.
g. Press in the SGL SWP button several times.
h. CHECK- Single-sweep trace occurs, and the
RESETIREADY LED illuminates briefly every time the
SGL SWP button is pressed in and released.
i.
Disconnect the test equipment from the instrument.
