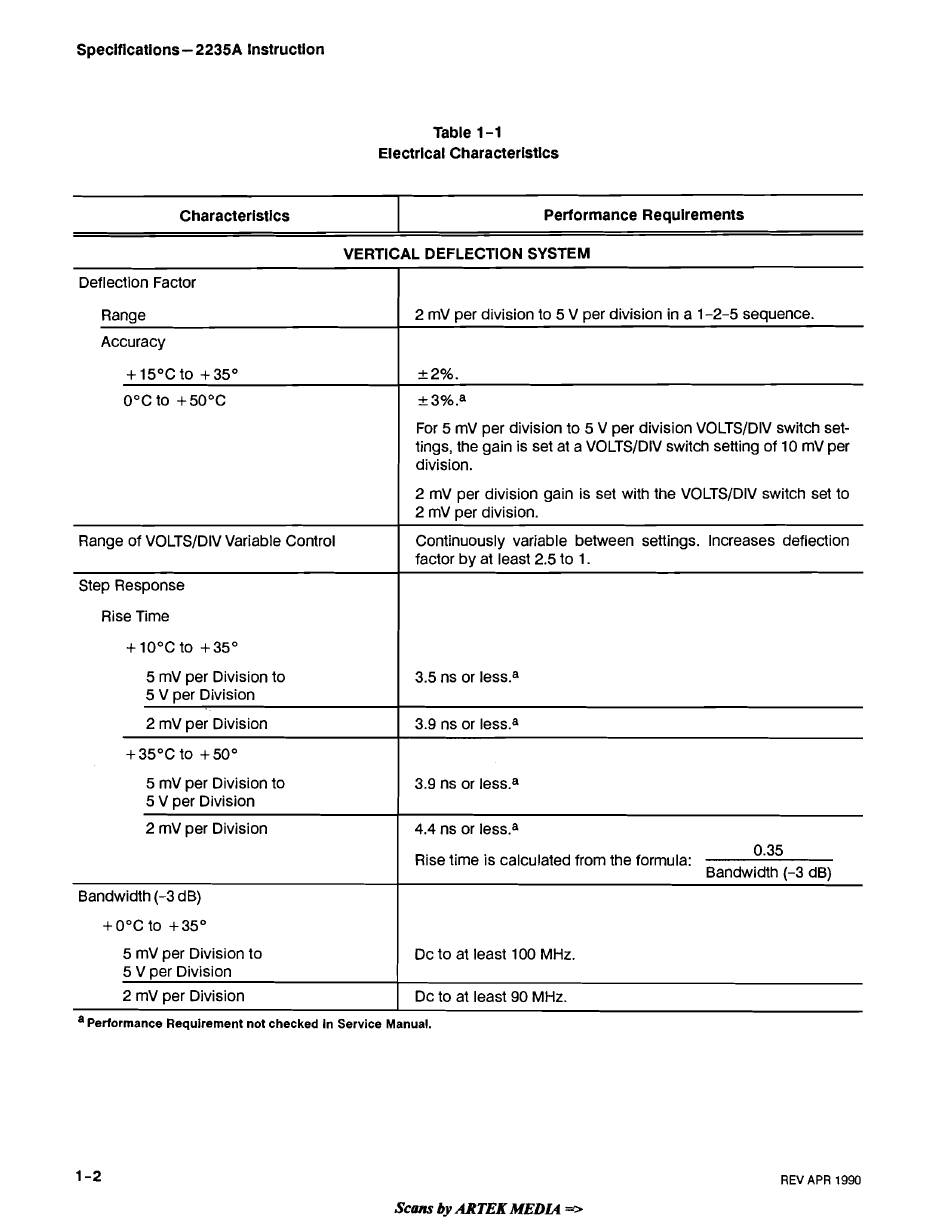

Specifications- 2235A instruction
Table 1-1
Electrical Characteristics
VERTICAL DEFLECTION SYSTEM
Characterlstlcs
Performance Requirements
a Performance Requirement not checked in Service Manual.
Deflection Factor
Range
Accuracy
+
15°C to
+
35"
0°C to +50°C
Range of VOLTSIDIV Variable Control
Step Response
Rise Time
+
10°C to +35"
5 mV per Division to
5 V per Division
2 mV per Division
+
35°C to +50°
5 mV per Division to
5 V per Division
2 mV per Division
Bandwidth (-3 dB)
+
0°C to +35"
5 mV per Division to
5 V per Division
2
mV per Division
Scans by ARTEK MEDL4
*
2 mV per division to 5 V per division in a 1-2-5 sequence.
+2%.
+
3N.a
For 5 mV per division to 5 V per division VOLTS/DIV switch set-
tings, the gain is set at a VOLTSIDIV switch setting of 10 mV per
division.
2 mV per division gain is set with the VOLTSIDIV switch set to
2 mV per division.
Continuously variable between settings. Increases deflection
factor by at least 2.5 to 1.
3.5 ns or less.a
3.9 ns or less.a
3.9 ns or 1ess.a
4.4
ns or 1ess.a
Rise time is calculated from the formula:
0.35
Bandwidth (-3 dB)
Dc to at least 100 MHz.
Dc to at least 90 MHz.
