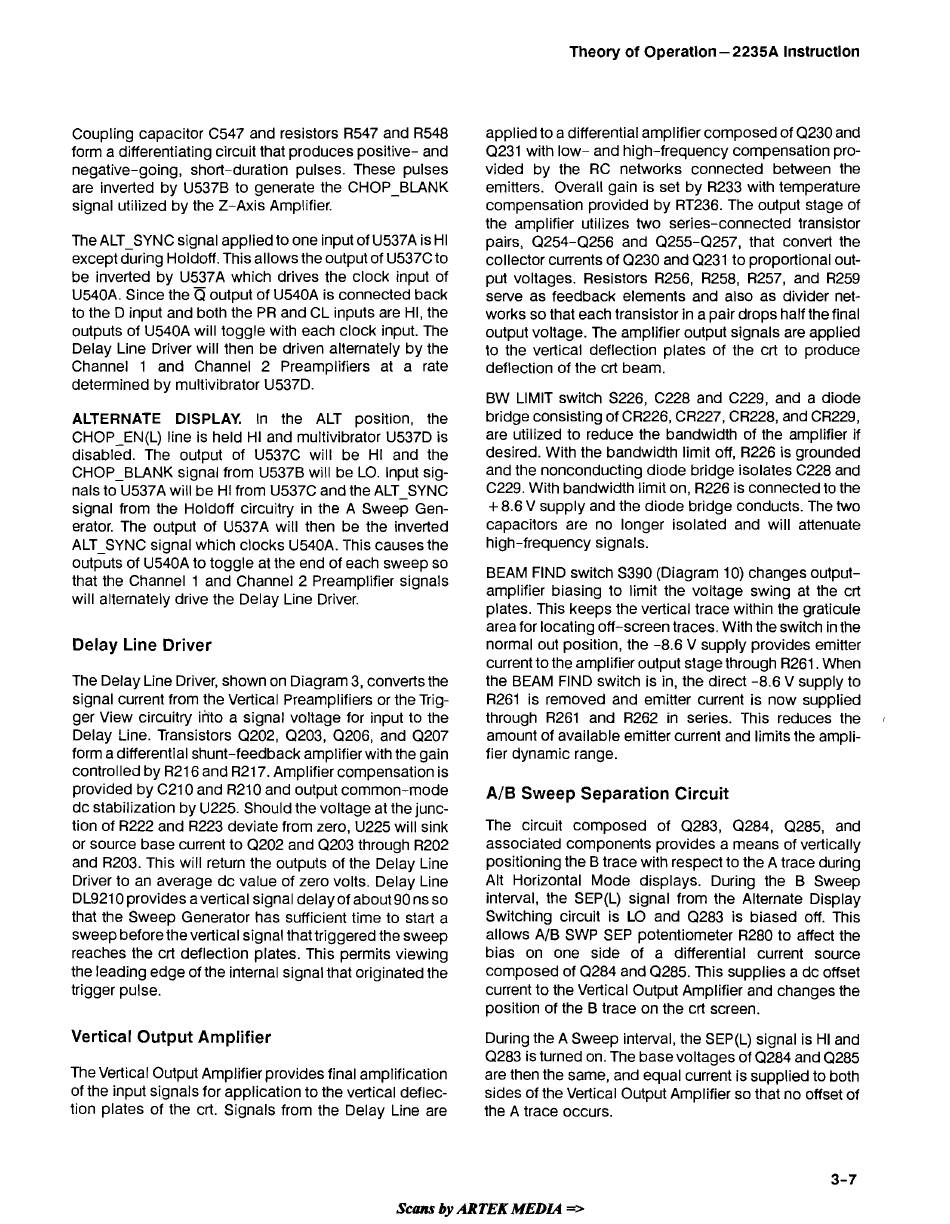

Theory of Operatlon
-
2235A Instruction
Coupling capacitor C547 and resistors R547 and R548
form a differentiating circuit that produces positive- and
negative-going, short-duration pulses. These pulses
are inverted by U537B to generate the CHOP-BLANK
signal utilized by the Z-Axis Amplifier.
The ALT SYNC signal applied to one input of U537A is HI
except during Holdoff. This allows the output of U537C to
be inverted by U537A which drives the clock input of
U540A. Since the
a
output of U540A is connected back
to the D input and both the PR and CL inputs are HI, the
outputs of U540A will toggle with each clock input. The
Delay Line Driver will then be driven alternately by the
Channel 1 and Channel 2 Preamplifiers at a rate
determined by multivibrator U537D.
ALTERNATE DISPLAY In the ALT position, the
CHOP-EI\I(L) line is held HI and multivibrator U537D is
disabled. The output of U537C will be HI and the
CHOP-BLANK signal from U537B will be LO. Input sig-
nals to U537A will be HI from U537C and the ALT-SYNC
signal from the Holdoff circuitry in the A Sweep Gen-
erator. The output of U537A will then be the inverted
ALT SYNC signal which clocks U540A. This causes the
outputs of U540A to toggle at the end of each sweep so
that the Channel 1 and Channel 2 Preamplifier signals
will alternately drive the Delay Line Driver.
Delay Line Driver
The Delay Line Driver, shown on Diagram 3, converts the
signal current from the Vertical Preamplifiers or the Trig-
ger View circuitry iiito a signal voltage for input to the
Delay Line. Transistors Q202, Q203, Q206, and Q207
form a differential shunt-feedback amplifier with the gain
controlled by R216 and R217. Amplifier compensation is
provided by C210 and R210 and output common-mode
dc stabilization by U225. Should the voltage at the junc-
tion of R222 and R223 deviate from zero, U225 will sink
or source base current to Q202 and Q203 through R202
and R203. This will return the outputs of the Delay Line
Driver to an average dc value of zero volts. Delay Line
DL921 0 provides avertical signal delay of about 90 ns so
that the Sweep Generator has sufficient time to start a
sweep before thevertical signal that triggered the sweep
reaches the crt deflection plates. This permits viewing
the leading edge of the internal signal that originated the
trigger pulse.
Vertical Output Amplifier
The Vertical Output Amplifier provides final amplification
of the input signals for application to the vertical deflec-
tion plates of the crt. Signals from the Delay Line are
applied to a differential amplifier composed of Q230 and
Q231 with low- and high-frequency compensation pro-
vided by the RC networks connected between the
emitters. Overall gain is set by R233 with temperature
compensation provided by RT236. The output stage of
the amplifier utilizes two series-connected transistor
pairs, a 2 5 4 4 2 5 6 and Q255-Q257, that convert the
collector currents of Q230 and Q231 to proportional out-
put voltages. Resistors R256, R258, R257, and R259
serve as feedback elements and also as divider net-
works so that each transistor in a pair drops half the final
output voltage. The amplifier output signals are applied
to the vertical deflection plates of the crt to produce
deflection of the crt beam.
BW LIMIT switch S226, C228 and C229, and a diode
bridge consisting of CR226, CR227, CR228, and CR229,
are utilized to reduce the bandwidth of the amplifier if
desired. With the bandwidth limit off, R226 is grounded
and the nonconducting diode bridge isolates C228 and
C229. With bandwidth limit on, R226 is connected to the
+
8.6 V supply and the diode bridge conducts. The two
capacitors are no longer isolated and will attenuate
high-frequency signals.
BEAM FlND switch S390 (Diagram 10) changes output-
amplifier biasing to limit the voltage swing at the crt
plates. This keeps the vertical trace within the graticule
area for locating off-screen traces. With the switch in the
normal out position, the -8.6 V supply provides emitter
current to the amplifier output stage through R261. When
the BEAM FlND switch is in, the direct -8.6 V supply to
R261 is removed and emitter current is now supplied
through R261 and R262 in series. This reduces the
i
amount of available emitter current and limits the ampli-
fier dynamic range.
A/B Sweep Separation Circuit
The circuit composed of Q283, Q284, Q285, and
associated components provides a means of vertically
positioning the B trace with respect to the A trace during
Alt Horizontal Mode displays. During the B Sweep
interval, the SEP(L) signal from the Alternate Display
Switching circuit is LO and Q283 is biased off. This
allows A/B SWP SEP potentiometer R280 to affect the
bias on one side of a differential current source
composed of Q284 and Q285. This supplies a dc offset
current to the Vertical Output Amplifier and changes the
position of the B trace on the crt screen.
During the A Sweep interval, the SEP(L) signal is HI and
Q283 is turned on. The basevoltages of Q284 and Q285
are then the same, and equal current is supplied to both
sides of the Vertical Output Amplifier so that no offset of
the A trace occurs.
