Operating Instructions
-
2235A Instruction
11. Calculate the time difference between the reference
(Channel 1) is 2.60 and the dial reading for the com-
signal (Channel 1) and comparison signal (Channel
parison pulse (Channel 2) is 7.10.
2) as in the preceding Time Difference on Single
Waveform measurement procedure. Substituting the given values into the time-
difference formula:
EXAMPLE: With the
A
SECIDIV switch set to 50 ps
per division, the dial reading for the reference pulse Time Difference
=
(7.10
-
2.60)(50 psldiv) = 225 ps
INTENSIFIED INTENSIFIED
ZONE ON THE
ZONE ON THE
REFERENCE COMPARISON REFERENCE COMPARISON
SIGNAL SIGNAL
SIGNAL SIGNAL
COMPARISON VERTICAL
REFERENCE
LINE LINE
PART A PART B
4976 09

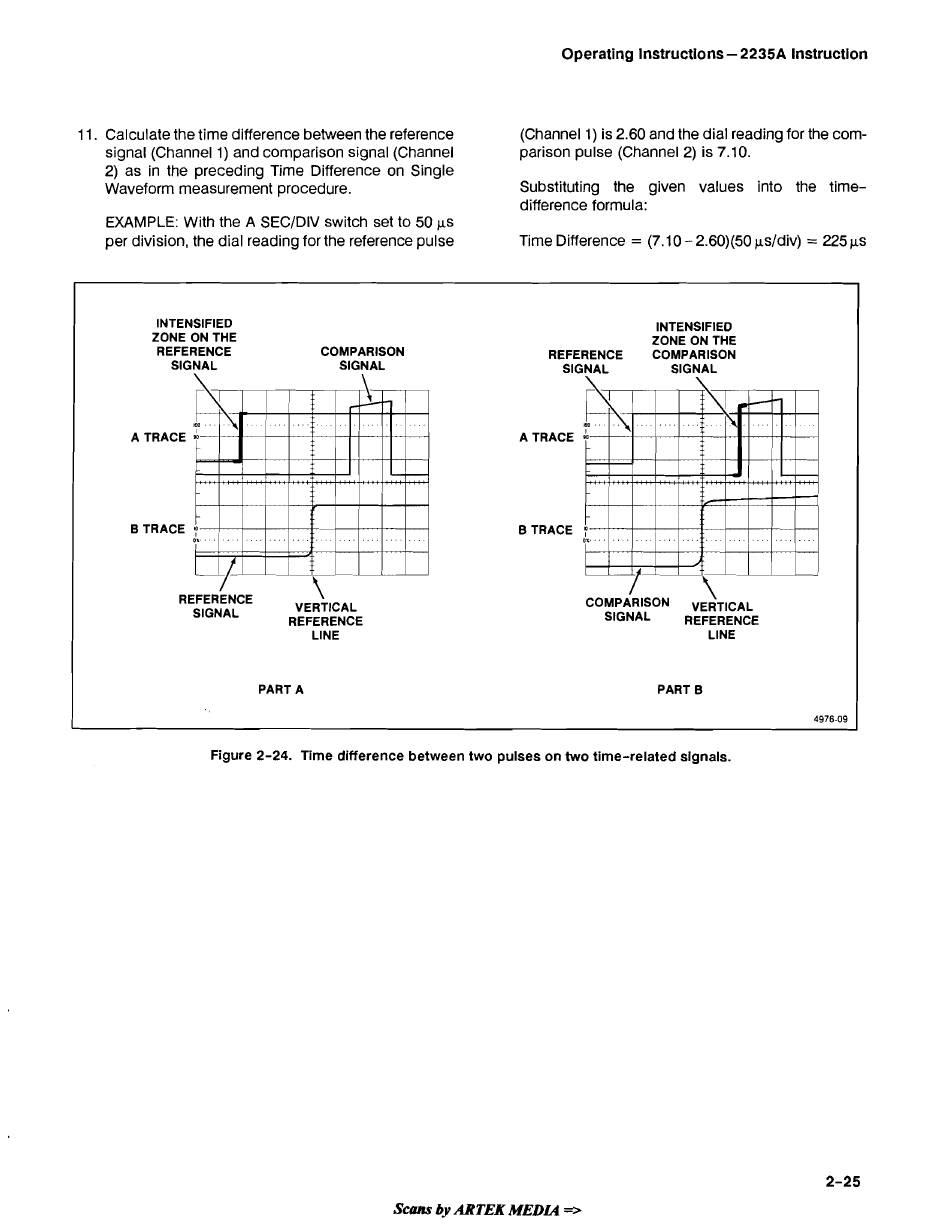

Figure 2-24. Time difference between two pulses on two time-related signals.
