Operating Instructions- 2235A Instruction

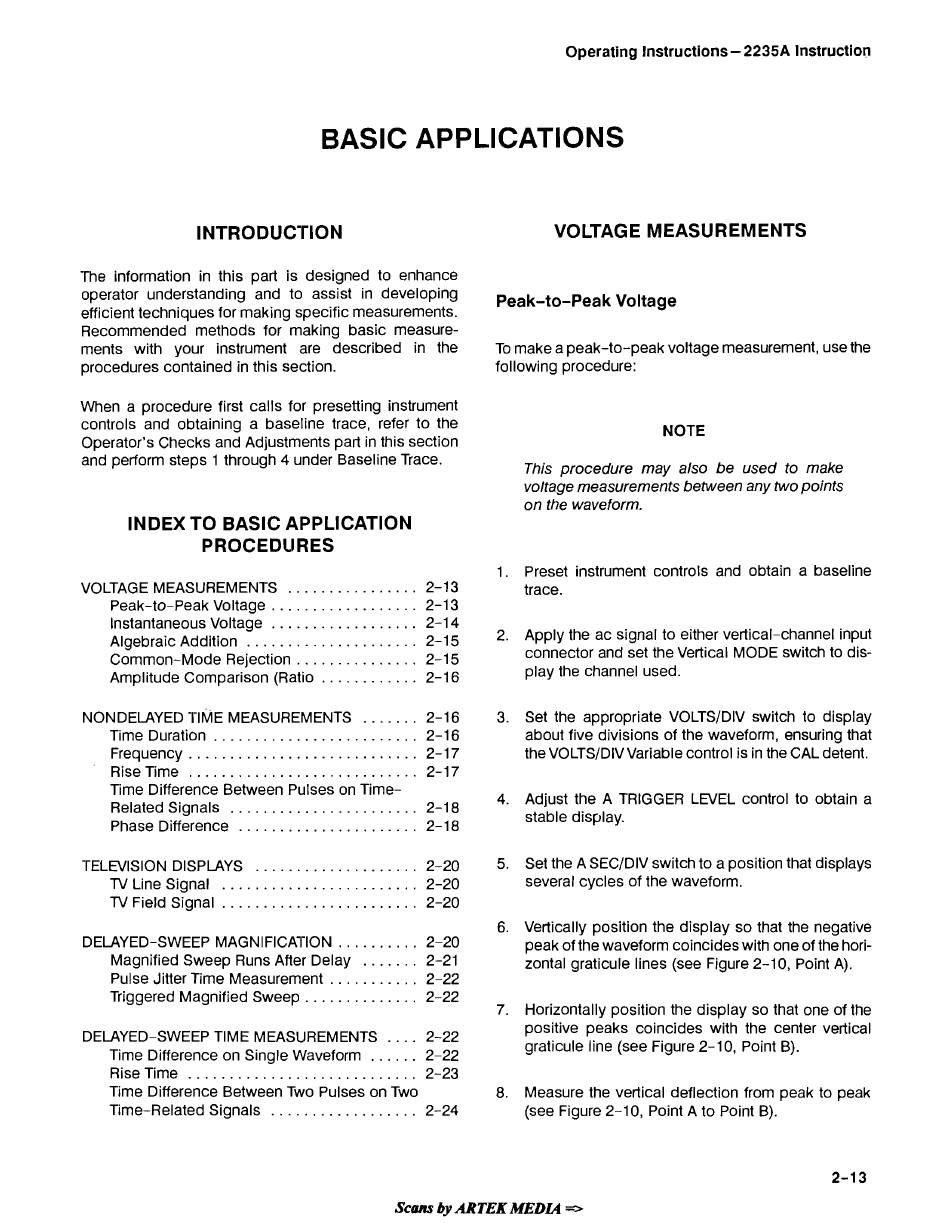

BASIC APPLICATIONS
INTRODUC'TION VOLTAGE MEASUREMENTS
The information in this part is designed to enhance
operator understanding and to assist in developing
Peak-to-Peak Voltage
efficient techniques for making specific measurements.
Recommended methods for making basic measure-
ments with your instrument are described in the To make a peak-to-peak voltage measurement, use the
procedures contained in this section.
following procedure:
When a procedure first calls for presetting instrument
controls and obtaining a baseline trace, refer to the
Operator's Checks and Adjustments part in this section
NOTE
and perform steps 1 through 4 under Baseline Trace.
This procedure may also be used to make
voltage measurements between any two points
on the waveform.
INDEX TO BASIC APPLICATION
PROCEDURES
1. Preset instrument controls and obtain a baseline
VOLTAGE MEASUREMENTS
. . . . . . . . . . . . . . . .
2-13 trace.
Peak-to-Peak Voltage
. . . . . . . . . . . . . . . . . .
2-1 3
Instantaneous Voltage
. . . . . . . . . . . . . . . . . .
2-1 4
Algebraic Addition 2-1 5
2. Apply the ac signal to either vertical-channel input
. . . . . . . . . . . . . . . . . . . . .
Common-Mode Rejection 2-1 5
connector and set the Vertical MODE switch to dis-
. . . . . . . . . . . . . . .
Amplitude Comparison (Ratio 2-1 6
play the channel used.
. . . . . . . . . . . .
NONDELAYED TIME MEASUREMENTS
. . . . . . .
2-16 3. Set the appropriate VOLTSIDIV switch to display
Time Duration
. . . . . . . . . . . . . . . . . . . . . . . . .
2-1 6
about five divisions of the waveform, ensuring that
Frequency
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-17 the VOLTSIDIVVariable control is in the CAL detent.
Rise Time
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1 7
Time Difference Between Pulses on Time-
Related Signals 2-1 8
4. Adjust the A TRIGGER LEVEL control to obtain a
. . . . . . . . . . . . . . . . . . . . . . .
Phase Difference 2-1 8
stable display.
. . . . . . . . . . . . . . . . . . . . . .
-~ELEVISION DISPLAYS
. . . . . . . . . . . . . . . . . . . .
2-20
5. Set the A SECIDIV switch to a position that displays
TV Line Signal
. . . . . . . . . . . . . . . . . . . . . . . .
2-20 several cycles of the waveform.
TV Field Signal
. . . . . . . . . . . . . . . . . . . . . . . .
2-20
6. Vertically position the display so that the negative
DELAYED-SWEEP MAGNIFICA-UON
. . . . . . . . . .
2-20
peak of the waveform coincides with one of the hori-
Magnified Sweep Runs After Delay
. . . . . . .
2-21
zontal graticule lines (see Figure 2-10, Point A).
Pulse Jitter Time Measurement . . . . . . . . . . . 2-22
Triggered Magnified Sweep
. . . . . . . . . . . . . .
2-22
7. Horizontally position the display so that one of the
DELAYED-SWEEP TIME MEASUREMENTS 2-22
positive peaks coincides with the center vertical
. . . .
Time Difference on Single Waveform 2-22
graticule line (see Figure 2-10, Point B).
. . . . . .
-
RiseTime
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-23
Time Difference Between Two Pulses on Two
8. Measure the vertical deflection from peak to peak
Time-Related Signals
. . . . . . . . . . . . . . . . . .
2-24 (see Figure 2-10, Point A to Point B).
