Design Guide | VLT® AutomationDrive FC 360
Power Connections
7.3
All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Non-UL
applications can use 75 °C (167 °F) and 90 °C (194 °F) copper conductors.
The power cable connections are located as shown in the following illustration. See chapter Specifications for correct dimensioning of
motor cable cross-section and length.
For protection of the drive, use the recommended fuses unless the unit has built-in fuses. Recommended fuses are listed in
and Circuit Breakers. Ensure that proper fusing complies with local regulations.
The connection of mains is fitted to the mains switch if included.
3-phase
power
input

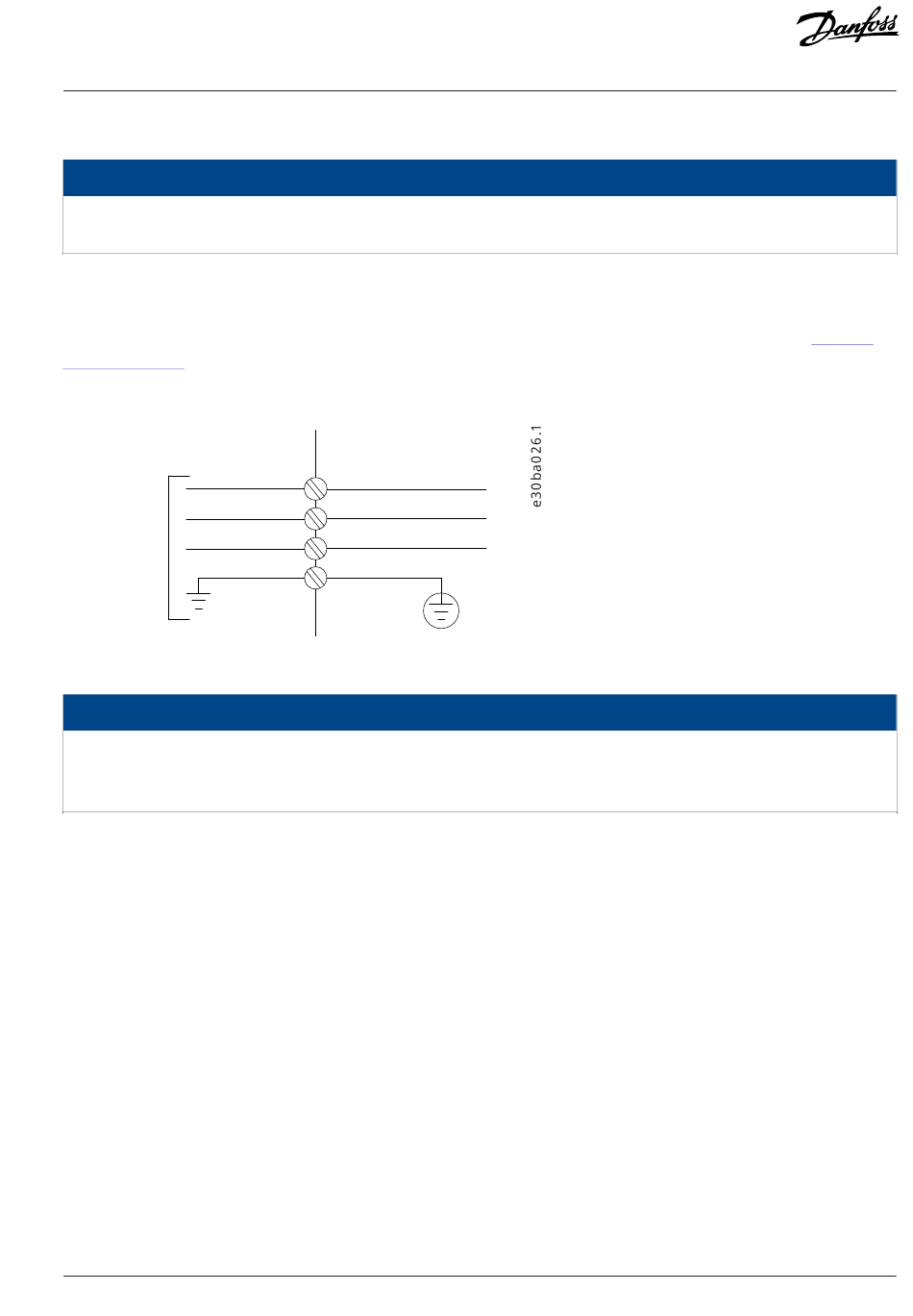

Figure 21: Power Cable Connections
The motor cable must be shielded/armored. If an unshielded/unarmored cable is used, some EMC requirements are not complied
with. Use a shielded/armored motor cable to comply with EMC emission specifications. For more information, see chapter EMC-
compliant Installation.
Shielding of cables
Avoid installation with twisted shield ends (pigtails). They spoil the shielding effect at higher frequencies. If it is necessary to break the
shield to install a motor isolator or contactor, continue the shield at the lowest possible HF impedance.
Connect the motor cable shield to both the decoupling plate of the drive and the metal housing of the motor.
Make the shield connections with the largest possible surface area (cable clamp) by using the installation devices within the drive.
Cable length and cross-section
The drive has been EMC-tested with a given length of cable. Keep the motor cable as short as possible to reduce the noise level and
leakage currents.
Switching frequency
When drives are used together with sine-wave filters to reduce the acoustic noise from a motor, the switching frequency must be set
according to the instructions in parameter 14-01 Switching Frequency.
Danfoss A/S © 2024.01
NOTICE
91 (L1)
92 (L2)
93 (L3)
95 PE
NOTICE
7.5 Fuses
