Design Guide | VLT® AutomationDrive FC 360
Table 70: Speed Up/Speed Down
FC
+ 24 V 12
18
D IN
19
D IN
27
D IN
29
D IN
D IN 31
D IN 32
D IN 33
+ 10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)

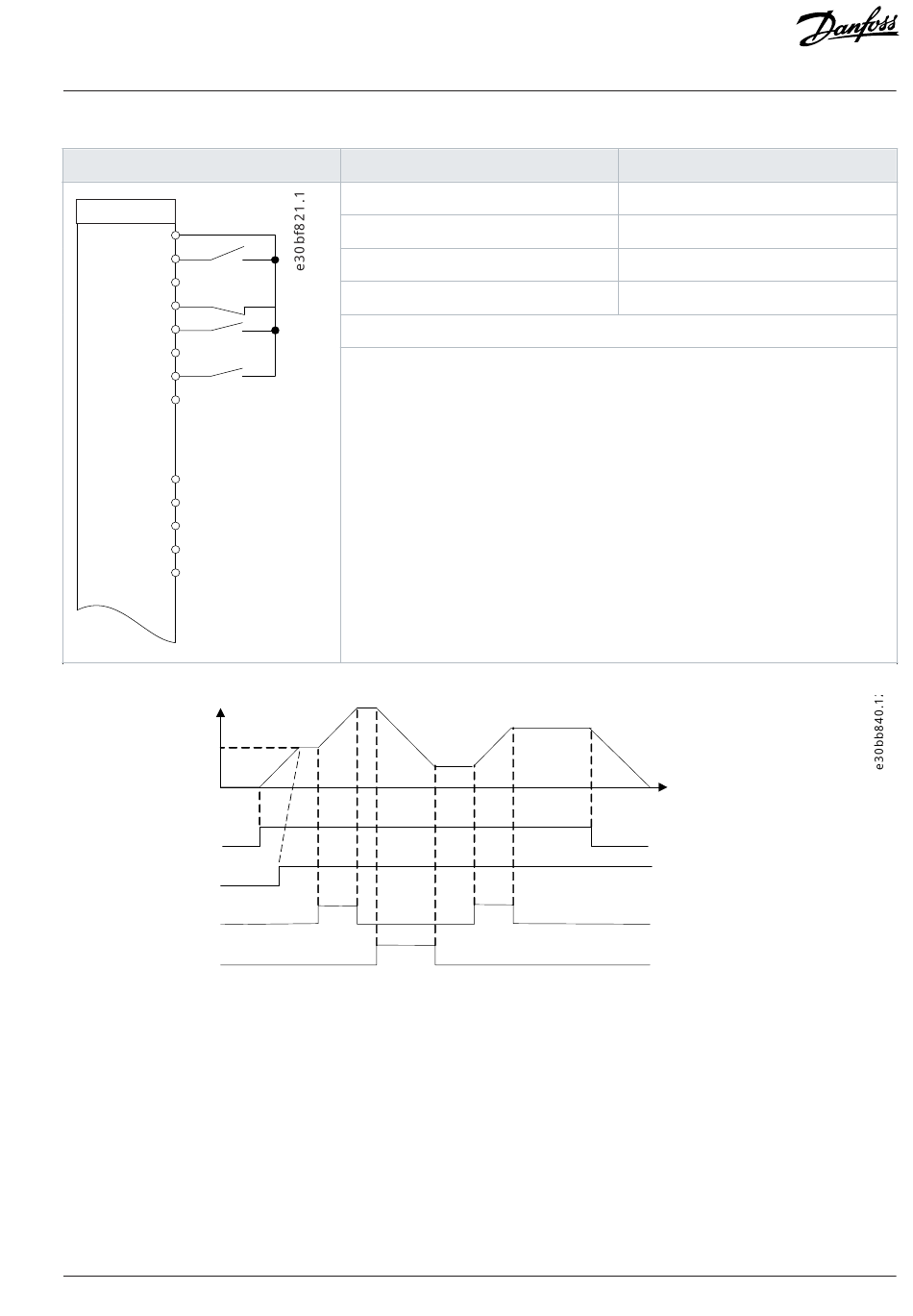

Figure 65: Speed Up/Speed Down
Danfoss A/S © 2024.01
Parameter function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-13 Terminal 29 Digital Input
Parameter 5-14 Terminal 32 Digital Input
*=Default value
Notes/comments:
Parameter setting
*[8] Start
[19] Freeze Reference
[21] Speed Up
[21] Speed Down
