Danfoss VLT AutomationDrive FC 360 Design Manual page 45
90–315 kw, enclosure sizes j8–j9
Hide thumbs
Also See for VLT AutomationDrive FC 360:
- Programming manual (340 pages) ,
- Design manual (88 pages) ,
- Quick manual (78 pages)
Advertisement
Design Guide | VLT® AutomationDrive FC 360
3
0
13 (0.5)
4
19 (0.8)
38 (1.5)

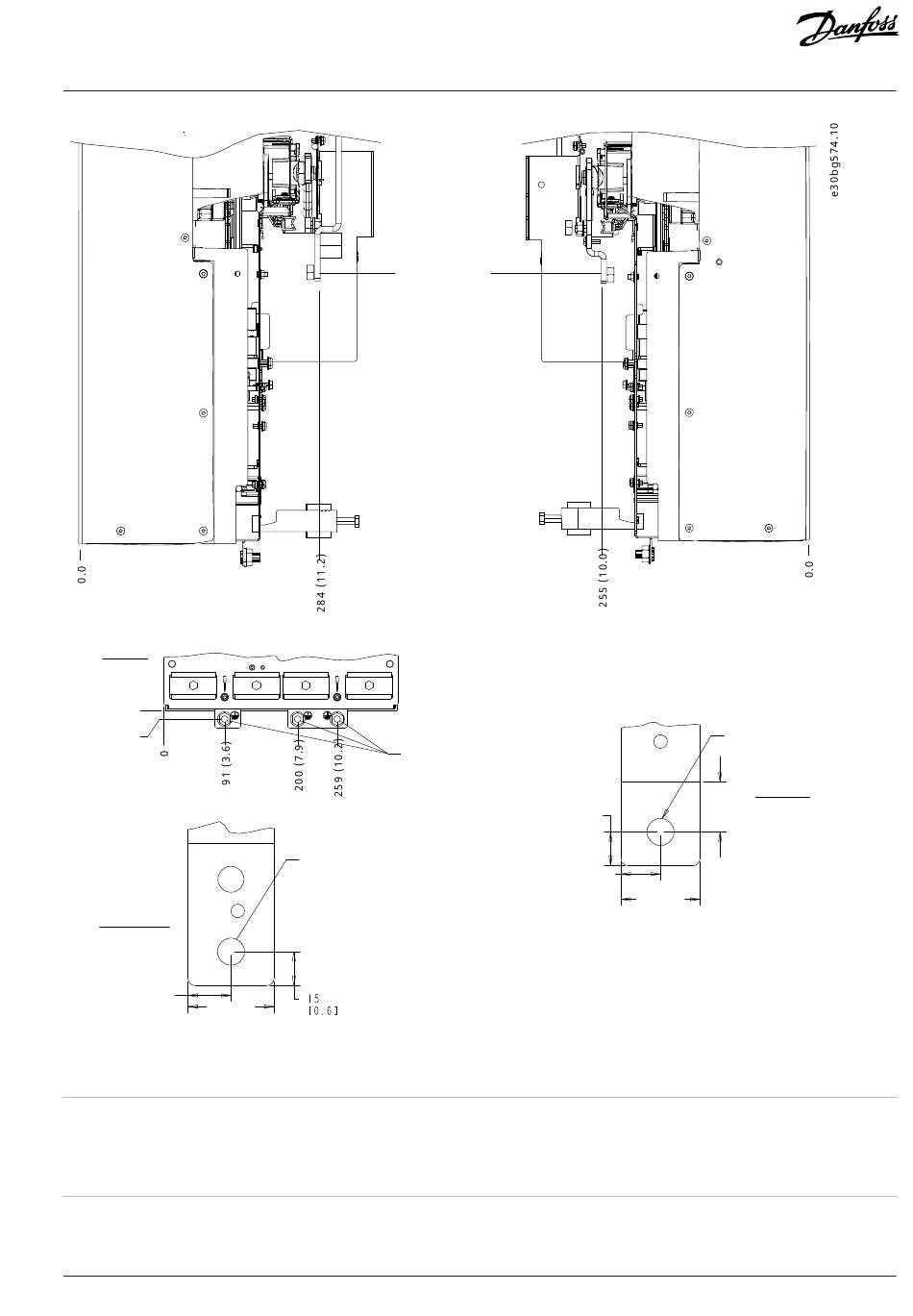

Figure 17: J9 Terminal Dimensions (Side Views)
1
Mains terminals
3
Ground terminals
5
Motor terminals
Danfoss A/S © 2024.01
1
3X M10X 20
M10
2
15 (0.6)
18 (0.7)
35 (1.4)
2
Motor terminals
4
Mains terminals
M10
5
22 (0.9)
AJ435824192086en-000101 / 130R1295 |
