Design Guide | VLT® AutomationDrive FC 360
Application Examples
10
Introduction
10.1
The examples in this section are intended as a quick reference for common applications.
Parameter settings are the regional default values unless otherwise indicated (selected in parameter 0-03 Regional Settings).
l
Parameters associated with the terminals and their settings are shown next to the drawings.
l
Required switch settings for analog terminals 53 or 54 are also shown.
l
AMA
10.2

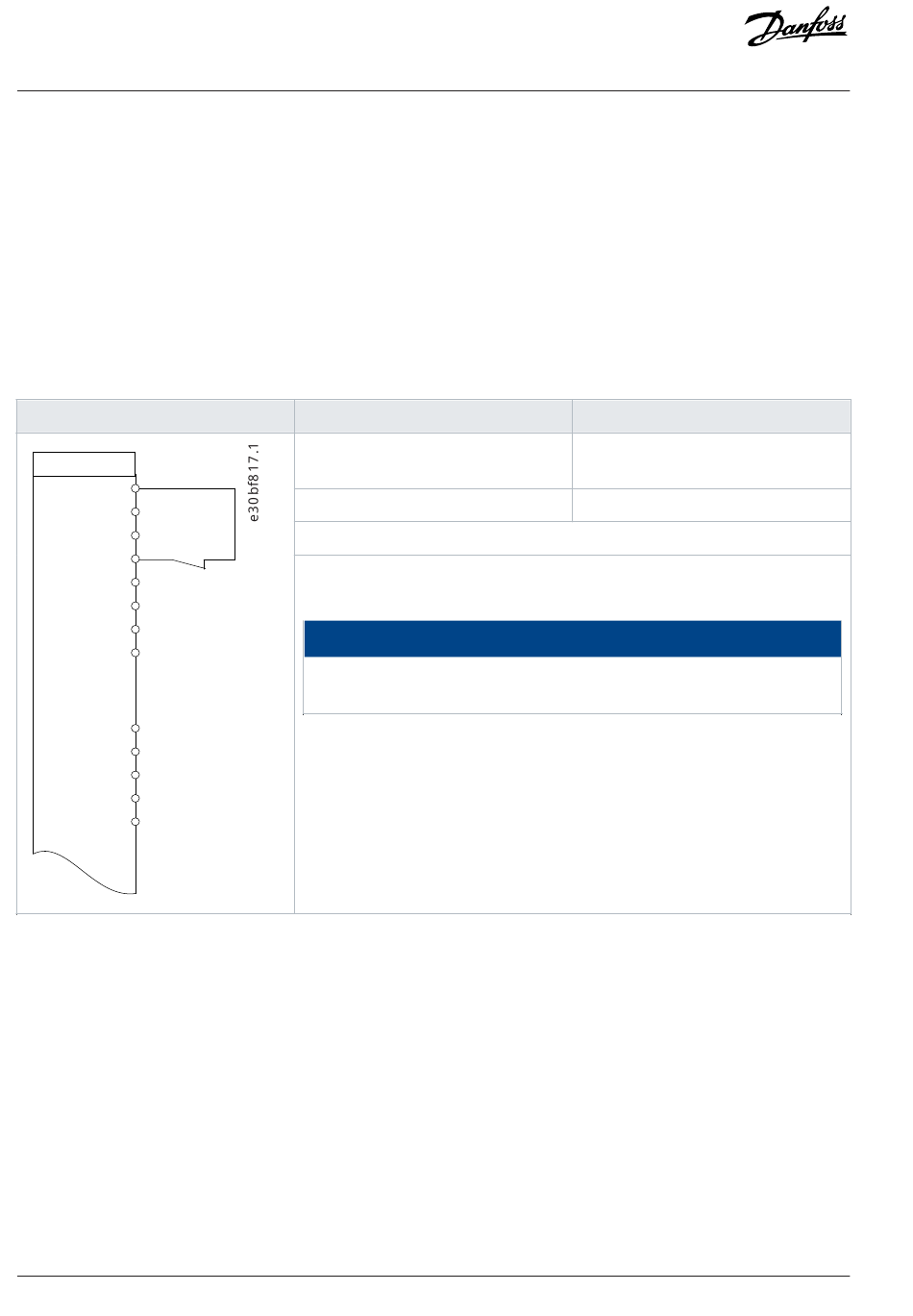

Table 66: AMA with T27 Connected
FC
+ 24 V
12
18
D IN
D IN
19
27
D IN
D IN
29
D IN
31
D IN
32
33
D IN
+ 10 V
50
A IN
53
A IN
54
COM
55
42
A OUT
120
| Danfoss A/S © 2024.01
Parameter function
Parameter 1-29 Automatic Motor
Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments: Set parameter group 1-2* Motor Data according to motor
specifications.
If terminals 12 and 27 are not connected, set parameter 5-12 Terminal 27 Digital
Input to [0] No operation.
Parameter setting
[1] Enable complete AMA
*[2] Coast inverse
  NOTICE
AJ435824192086en-000101 / 130R1295
