Design Guide | VLT® AutomationDrive FC 360

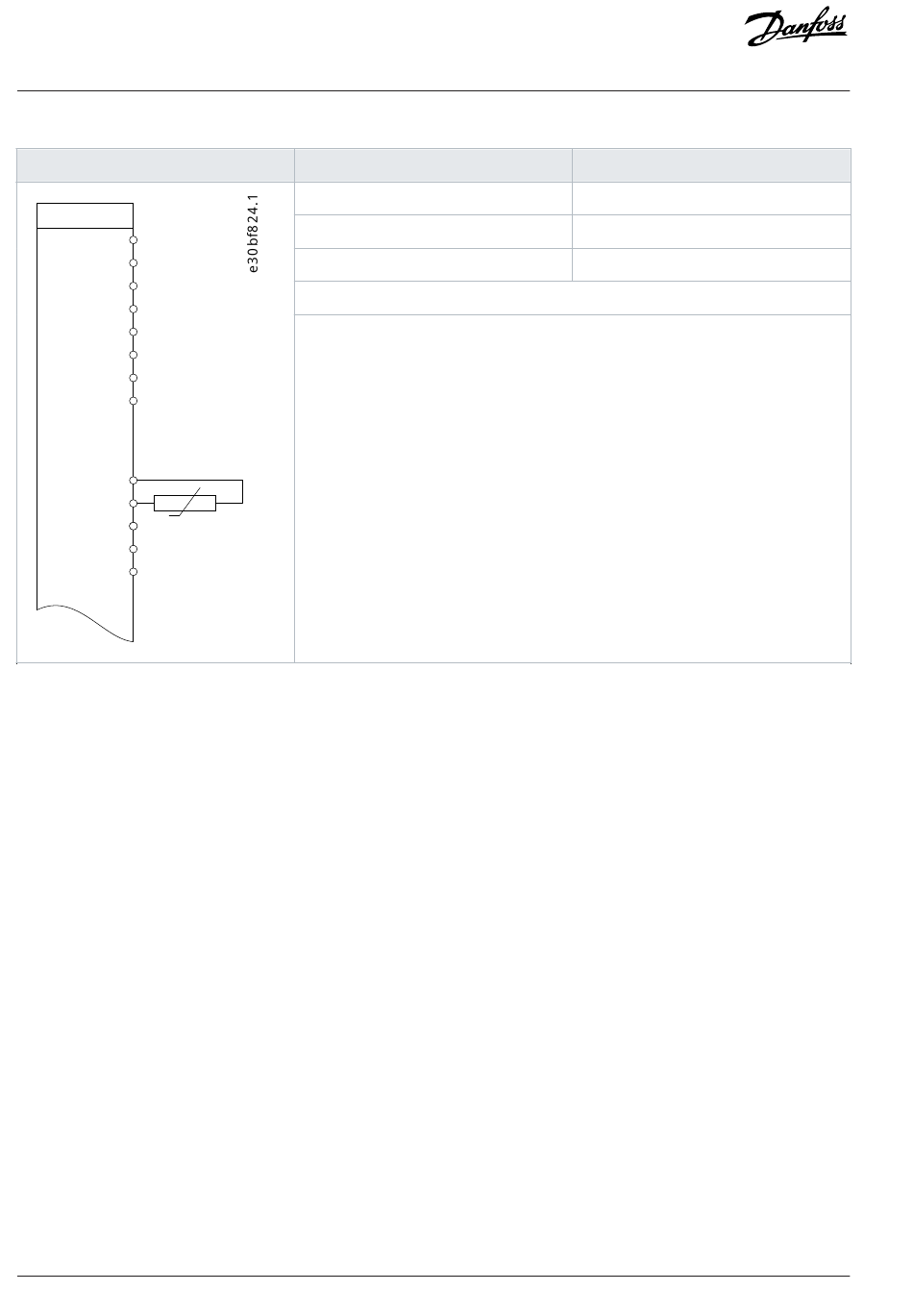

Table 73: Motor Thermistor
FC
+ 24 V 12
D IN
18
D IN 19
D IN
27
D IN
29
D IN 31
D IN 32
D IN 33
+ 10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
126
| Danfoss A/S © 2024.01
Parameter function
Parameter 1-90 Motor Thermal Protection
Parameter 1-93 Motor Thermal Source
Parameter 6-19 Terminal 53 mode
*=Default value
Notes/comments: If only a warning is needed, set parameter 1-90 Motor Thermal
Protection to [1] Thermistor warning.
Parameter setting
[2] Thermistor trip
[1] Analog input 53
*[1] Voltage
AJ435824192086en-000101 / 130R1295
