Encoder Direction
10.8
The order in which the pulses enter the drive determines the direction of the encoder.
Clockwise direction means that channel A is 90 electrical degrees before channel B.
l
Counterclockwise direction means that channel B is 90 electrical degrees before A.
l
The direction is determined by looking into the shaft end.
Closed-loop Drive System
10.9
A drive system usually consists of more elements such as:
Motor.
l
Brake (gearbox, mechanical brake).
l
Drive.
l
Encoder as feedback system.
l
Brake resistor for dynamic brake.
l
Transmission.
l
Load.
l
Applications demanding mechanical brake control usually need a brake resistor.
Status
Quick Menu Main Menu
Menu
OK
On
Warn.
Alarm
Hand
Off
Auto
On
Reset
On
4
2
3

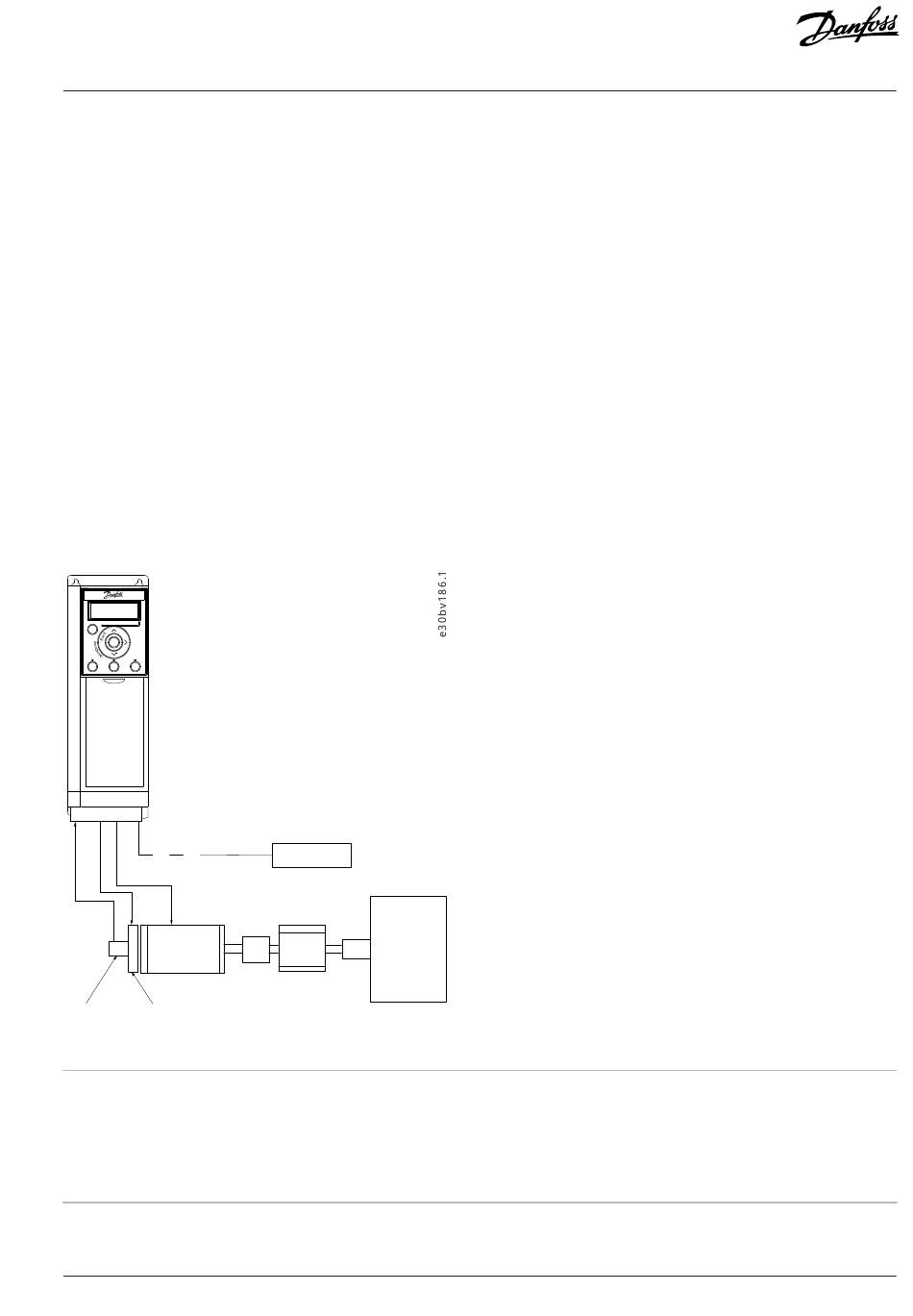

Figure 68: Basic Setup for Closed-loop Speed Control
1
Brake resistor
3
Mechanical brake
5
Transmission
7
Load
Danfoss A/S © 2024.01
1
5
6
5
7
2
Encoder
4
Motor
6
Gearbox
AJ435824192086en-000101 / 130R1295 |
129
