3.1.1 Switches

The ADM-PCIE-9V8 has an octal DIP switch SW1, located on the rear side of the board. The function of each
switch in SW1 is detailed below:
Factory
Switch
Default
SW1-1
OFF
SW1-2
OFF
SW1-3
ON
SW1-4
OFF
SW1-5
OFF
SW1-6
OFF
SW1-7
OFF
SW1-8
OFF
Use I/O Standard "LVCMOS18" when constraining the User Switch pins.
Page 6

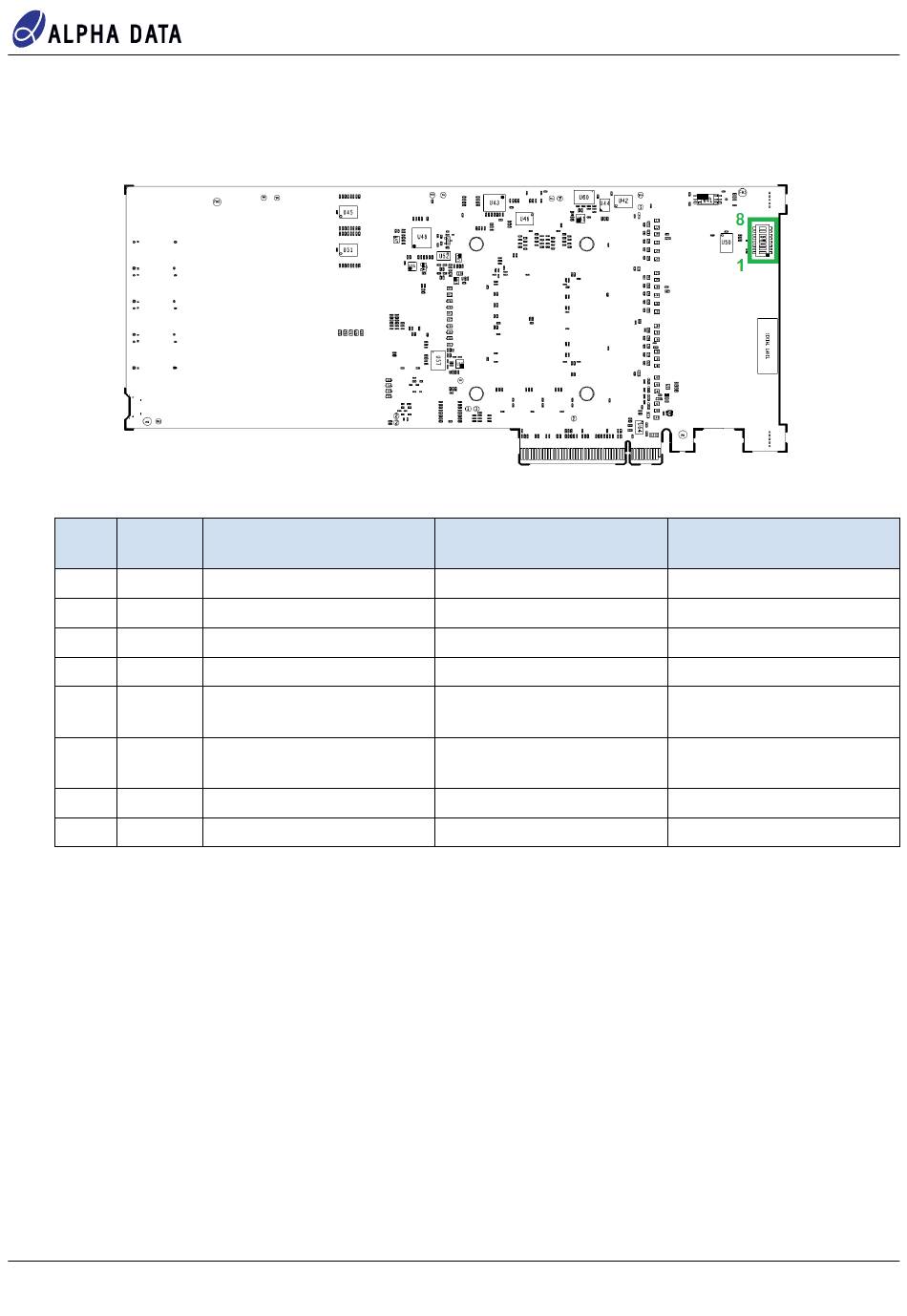

Figure 5 : Switches
Function
User Switch 0
User Switch 1
12V Auto-detect
Power Off
Service Mode
HOST_I2C_EN
RESERVED
RESERVED
Table 4 : Switch Functions
OFF State
Pin AW33 = '1'
Pin AY36 = '1'
12V PCIe edge auto-detect
Board will power up
System Monitor normal
operation
System Monitor connected
isolated from PCIe slot I2C
NA
NA
ADM-PCIE-9V8 User Manual
ON State
Pin BF52 = '0'
Pin BF47 = '0'
ATX AUX power required
Immediately power down
System Monitor Service Mode
(firmware update etc.)
System Monitor connected to
PCIe slot I2C
NA
NA
Functional Description
