STABS

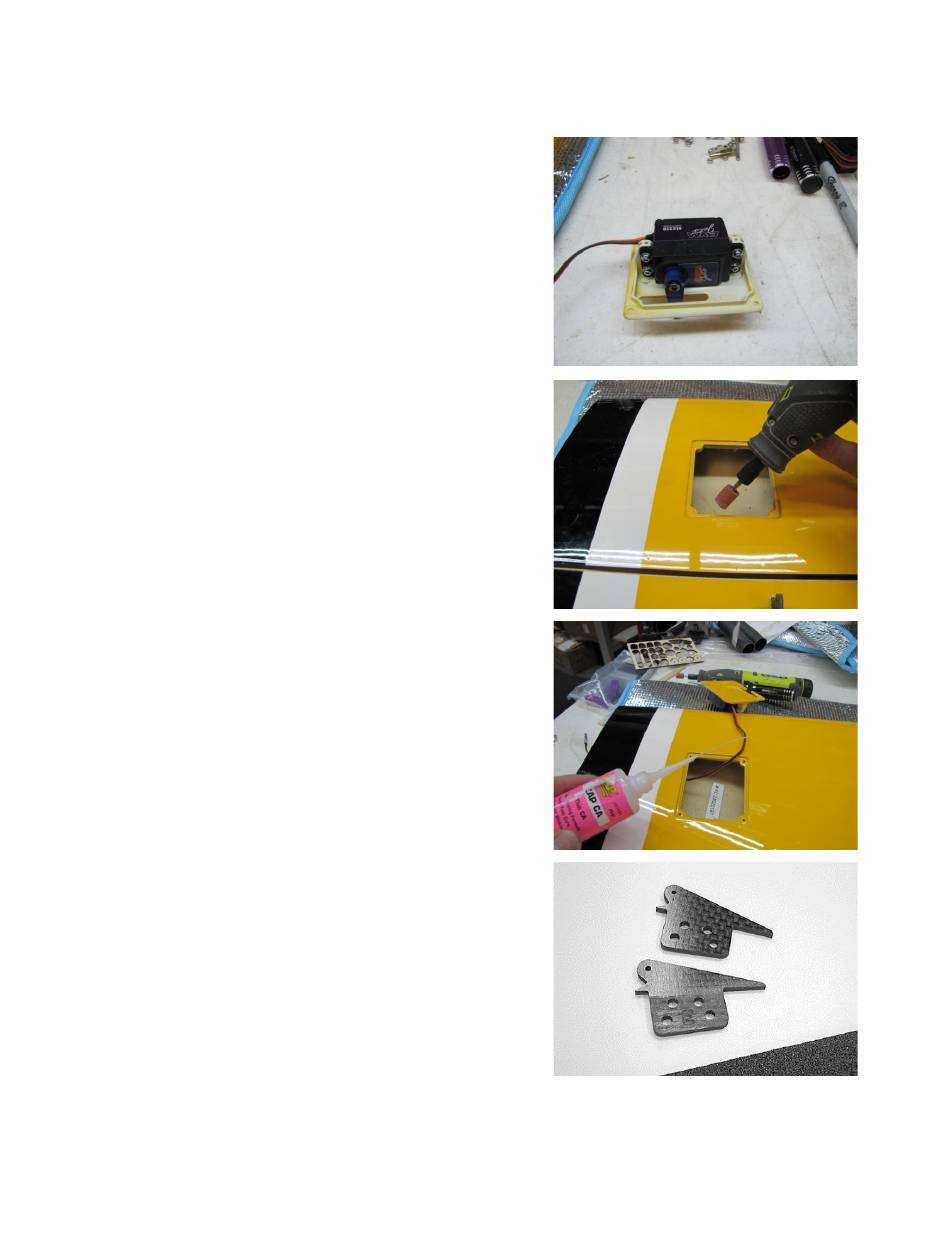

Install the servo in each of the servo plates with
the arms neutral at 90 deg of the plate. Make
note that the slots are to the inside and aft in the
opening.
Using a Dremel, carefully clean up the outline of
the servo pocket.
Using the servo plate, drill the four corner screw
holes with a 1/16 bit, then reinforce the holes
with a drop of thin CA.
Scuff both bottom sides of the elevator control
horns to aid in adhesion.
IMPORTANT: The clevis hole in all control
horns should be drilled through with a sharp
and accurate 1/16" drill bit before installing
into surface. Test fit a clevis pin in each of the
holes. It should be a snug fit.
