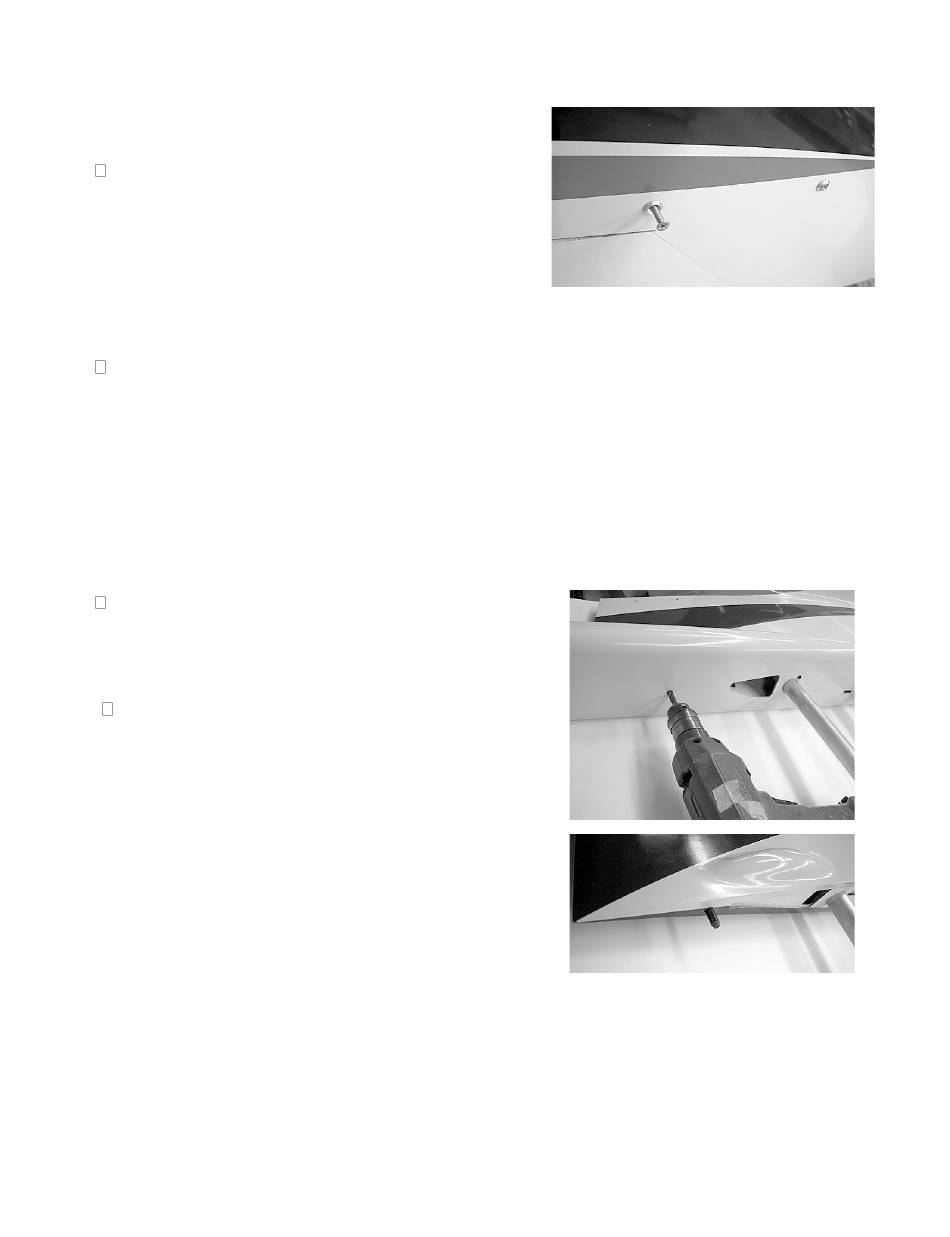

With booms fitted to fuse, install the alum
bushings on outside of fins. Test fit with #6-32x1-
3/4" phillips head bolts. Remove, then apply a
drop of 5 min epoxy to bushings and insert them
into the fin.
Cut opening on inside of fin for servo leads as marked may have been done at BVM.

Wing Anti-Rotation Pins

Refer to plans.
Use the holes in the booms to guide a sharp 1/4"
diameter drill through F/G flange and rib of fuse
wing root.
The (2) 1/4" CF rods serve as anti-rotation pins
at the rear of the wings. After the carbon tubes are
installed, place the booms onto the fuse body and
check that the 1/4" holes in the ribs 1 and 2 align.
Adjust holes with a 1/4" drill if necessary. Chamfer the
outboard ends of the pins, then glue them into the
wing ribs.
