RUDDER SERVO & LINKAGE

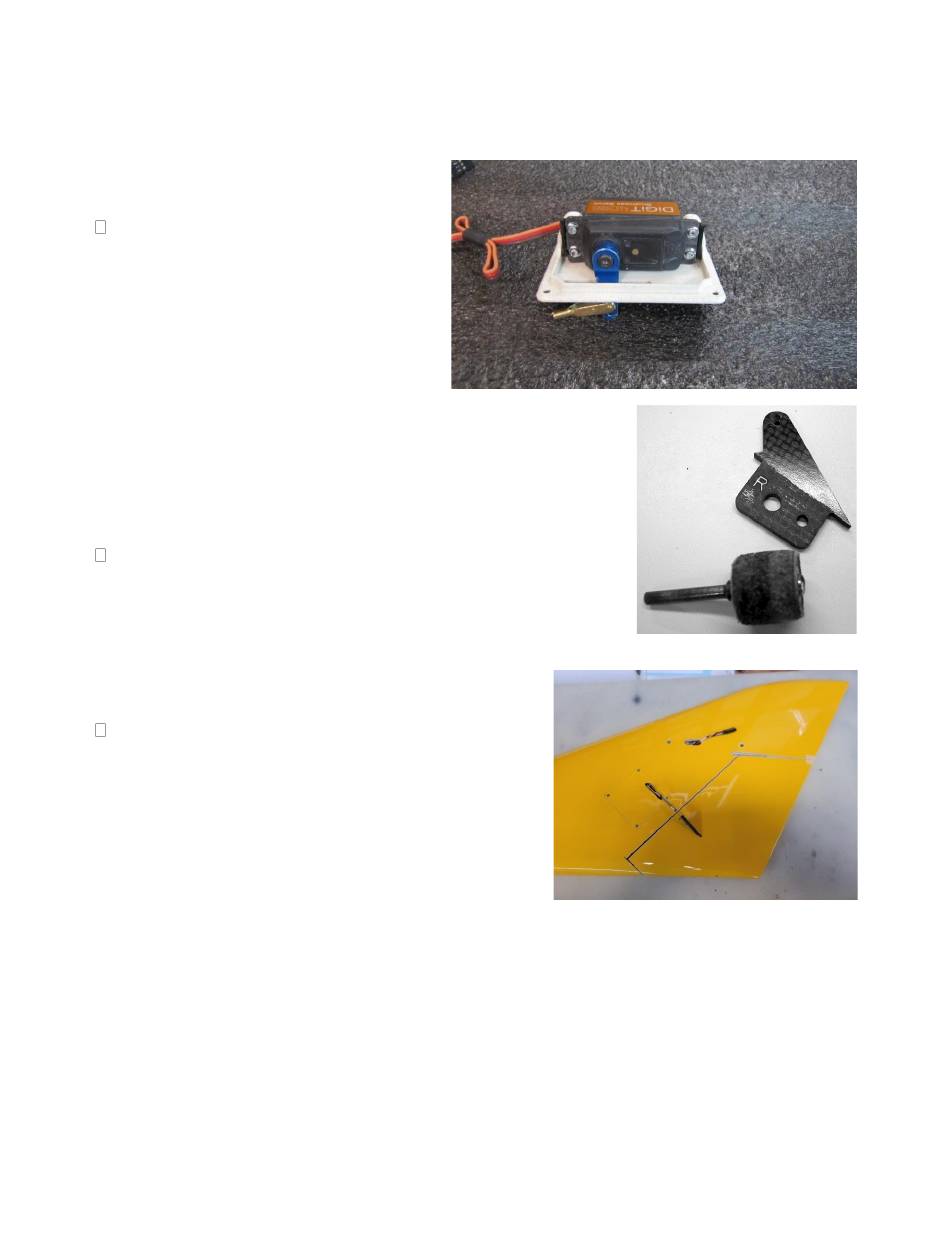

Install the servo in each of the servo
plates with the arms neutral at 90 deg
of the plate Make one left and one
right, Make the linkage as shown on
the plans.
See photo below for orientation.
Scuff sides of rudder control horns (marked "R"). Follow
same procedure as described for elevators to install horns
with Aeropoxy
Tape rudder at neutral, attach clevis to outer hole
on servo arm. Adjust pin-to-pin length per plan
and attach linkage to rudder horn.
Repeat for opposite side.
