BVM KingCat V2 COMPOSITE Assembly And Operating Manual page 14

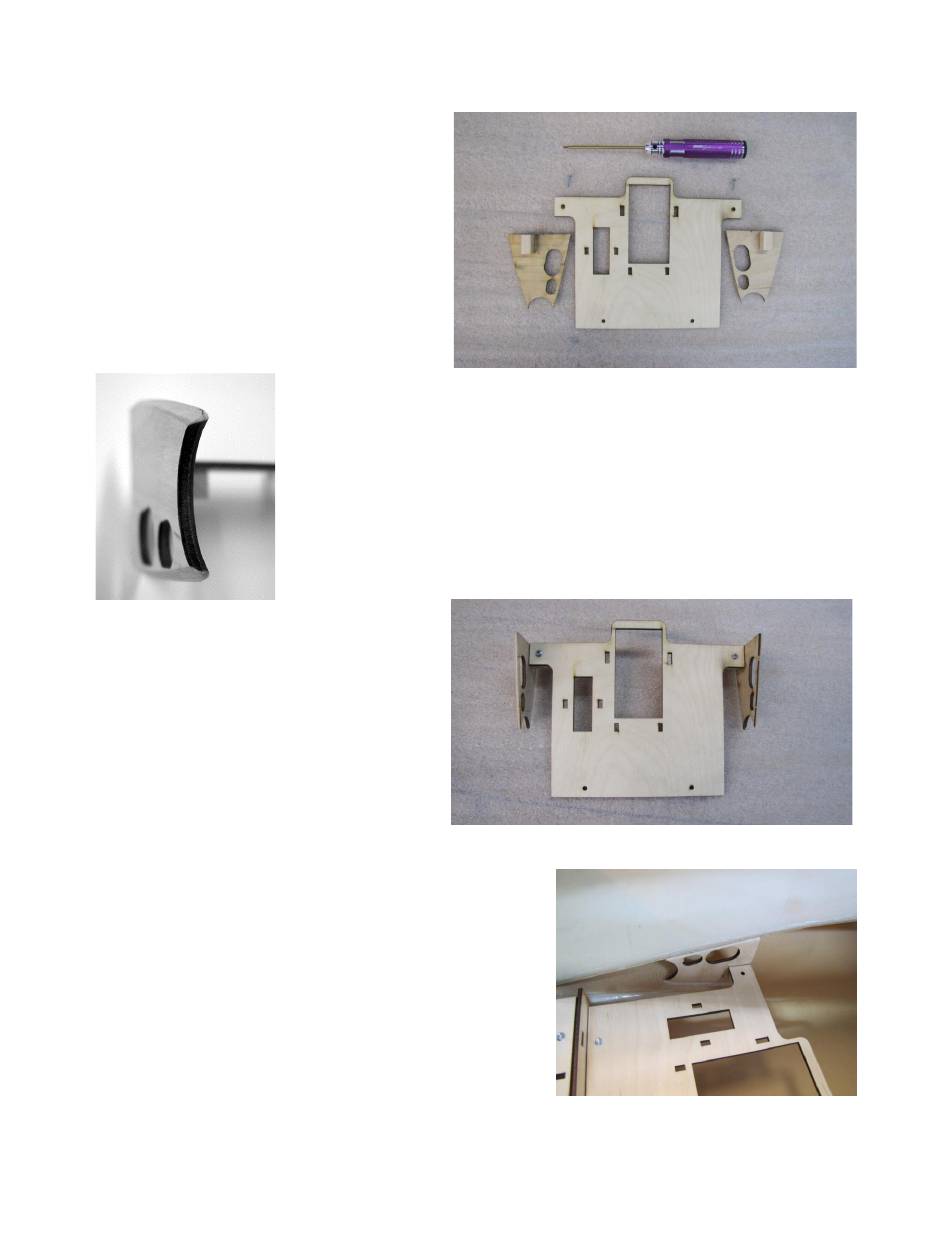

Glue the two 3/8x1/2x3/4 maple block
tray supports to the bottom side of the
tic marks as shown in the photo.
Using the tray as a guide, drill the
blocks using a 1/16 bit for the screws.
UAT Tray assembled
Screw the UAT Tray to former F2 as a placement
guide.
Tack glue the two vertical pieces to the fuse.
Remove the tray and glue finish gluing in the two
pieces using Vpoxy or Aeropoxy.
BVM ® 2023
KingCat-V2
Assembly & Operation Manual
Before glueing in the UAT tray. Bevel the outside edges about
45 deg of the two vertical pieces.
10 12/2023
