STAB MOUNTING

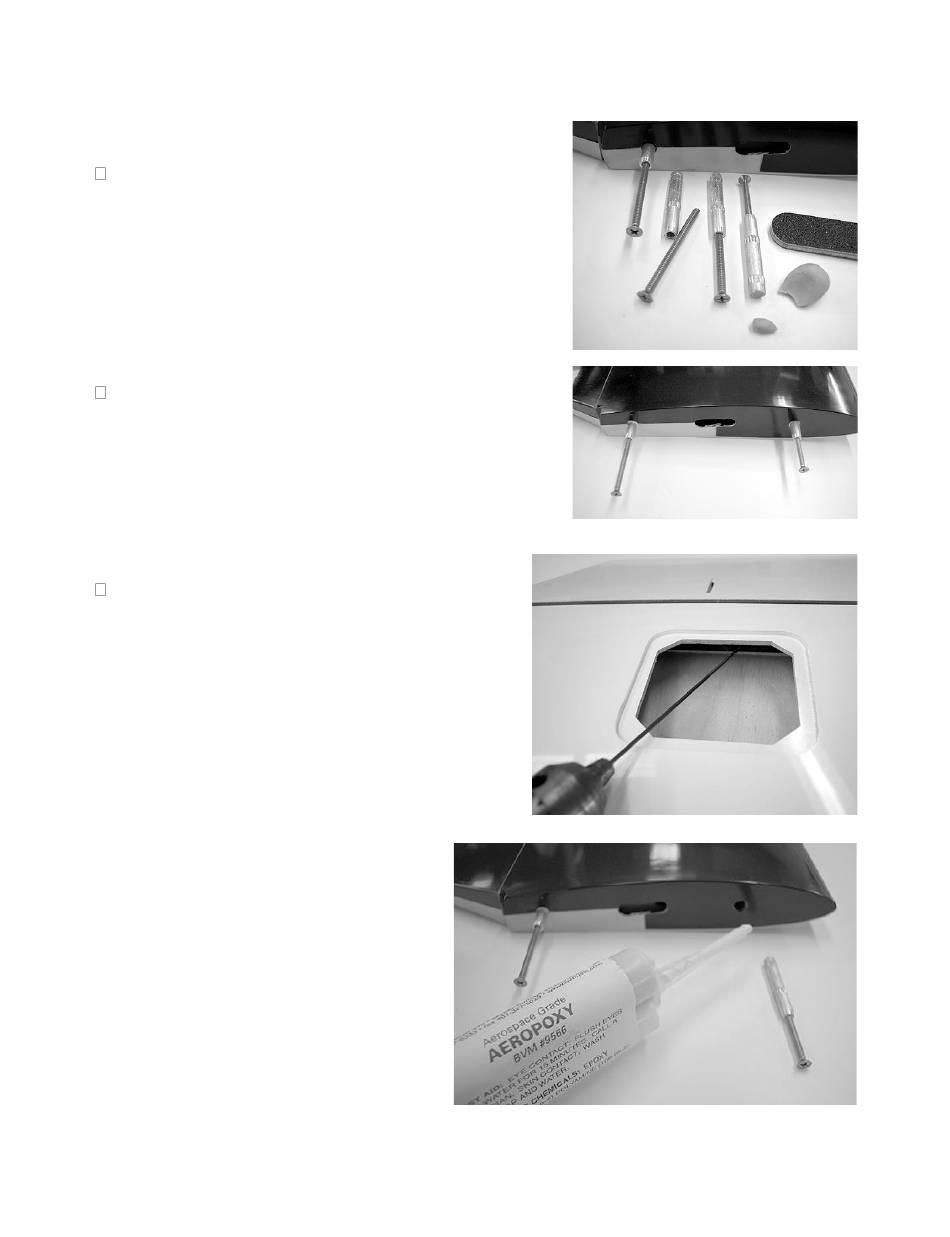

Scuff outside of 4 aluminum stab inserts with
sanding board. Insert (4) 6-32x1-3/4" stab bolts into
tapered ends of inserts, plug other ends with bits of
modeling clay to prevent Aeropoxy from filling
inserts when installed in stab.
Proper depth of insert into stab leaves approx. 1/2"
of insert exposed. Just covering 2nd row of knurling.
Tapered end allows easy insertion into fin. Note
opening for servo leads, match to that in fin.
It is necessary to drill 1/16" vent holes in the
fore and aft arrow shafts in the stab. Drill
through one wall only of shafts. This allows air
to escape when alum inserts are glued in.
Sight through shaft, if open, one hole is
sufficient, if plugged in the middle drill two
holes, one each per servo pocket. Use a 6"
long 1/16" bit. Protect stab skin while working
❑ Arrow shafts are built into stabs to
receive inserts. IMPORTANT -
Thoroughly scuff inside of arrow
shafts to better accept glue.
❑ Insert Aeropoxy into arrow shaft ends.
Apply Aeropoxy to aluminum insert
then slide slowly into stab. Remove
once to check for areas not covered
with glue, then re-insert. Be sure to
leave 1/2" of insert outside stab end.
