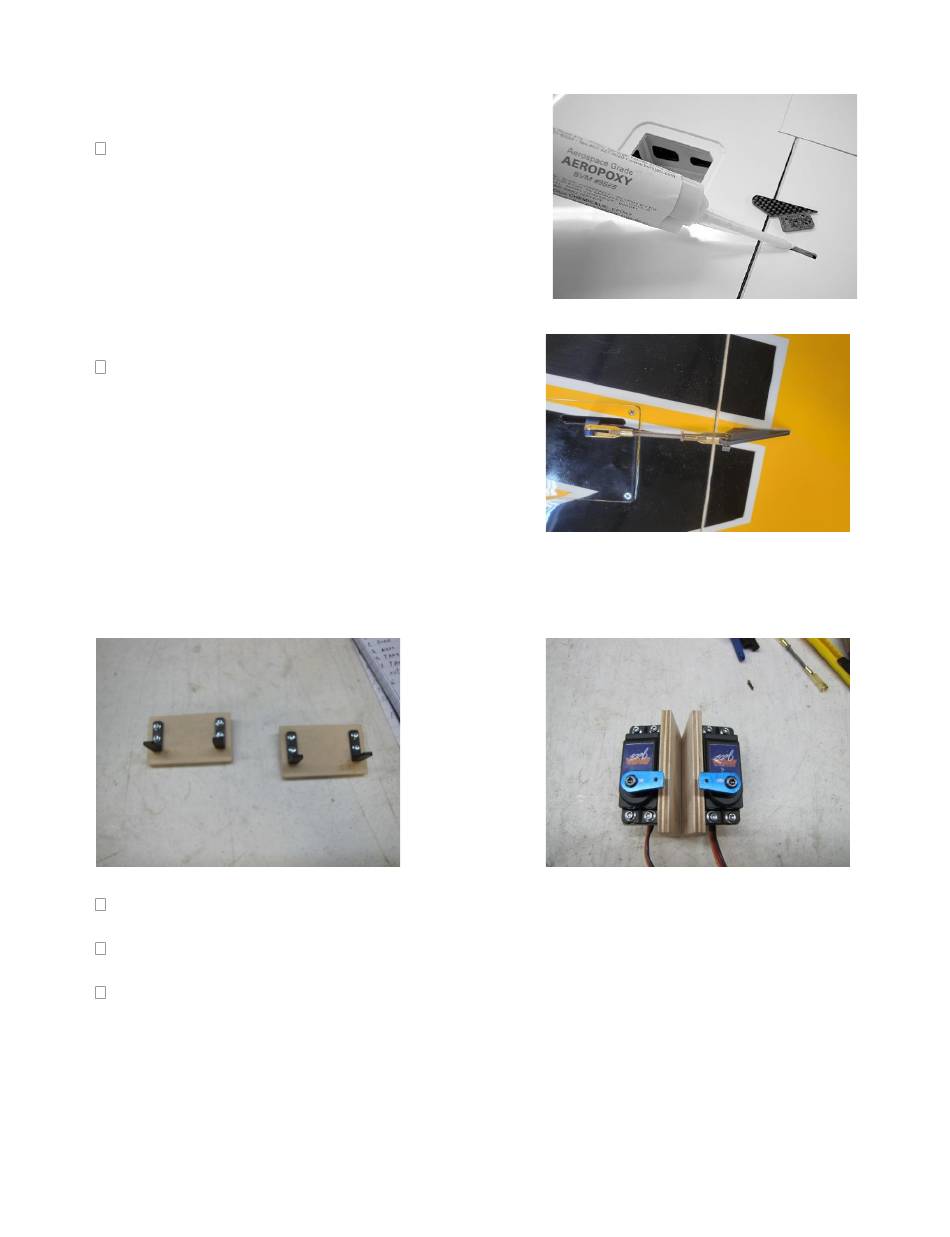

Use Aeropoxy to glue horns into slots. Inject glue
into holes in horns and insert horn to fully seated
depth. Wipe excess glue from sides of horn.
Tape aileron into neutral position and square
servo arm to neutral.
❑ Assemble aileron linkage (same procedures as
elevators and rudders). Adjust to length pin-to-
pin and attach linkages to inside hole on aileron
servo arms.

FLAP SERVOS AND LINKAGE

Make a left and right assembly. Servo shaft is oriented toward the wing tip
Assemble flap linkage per plans.
Mount servos to angle brackets and then to 1/4" servo mount. Grind screw points flush
with plywood surface
