BOOMS

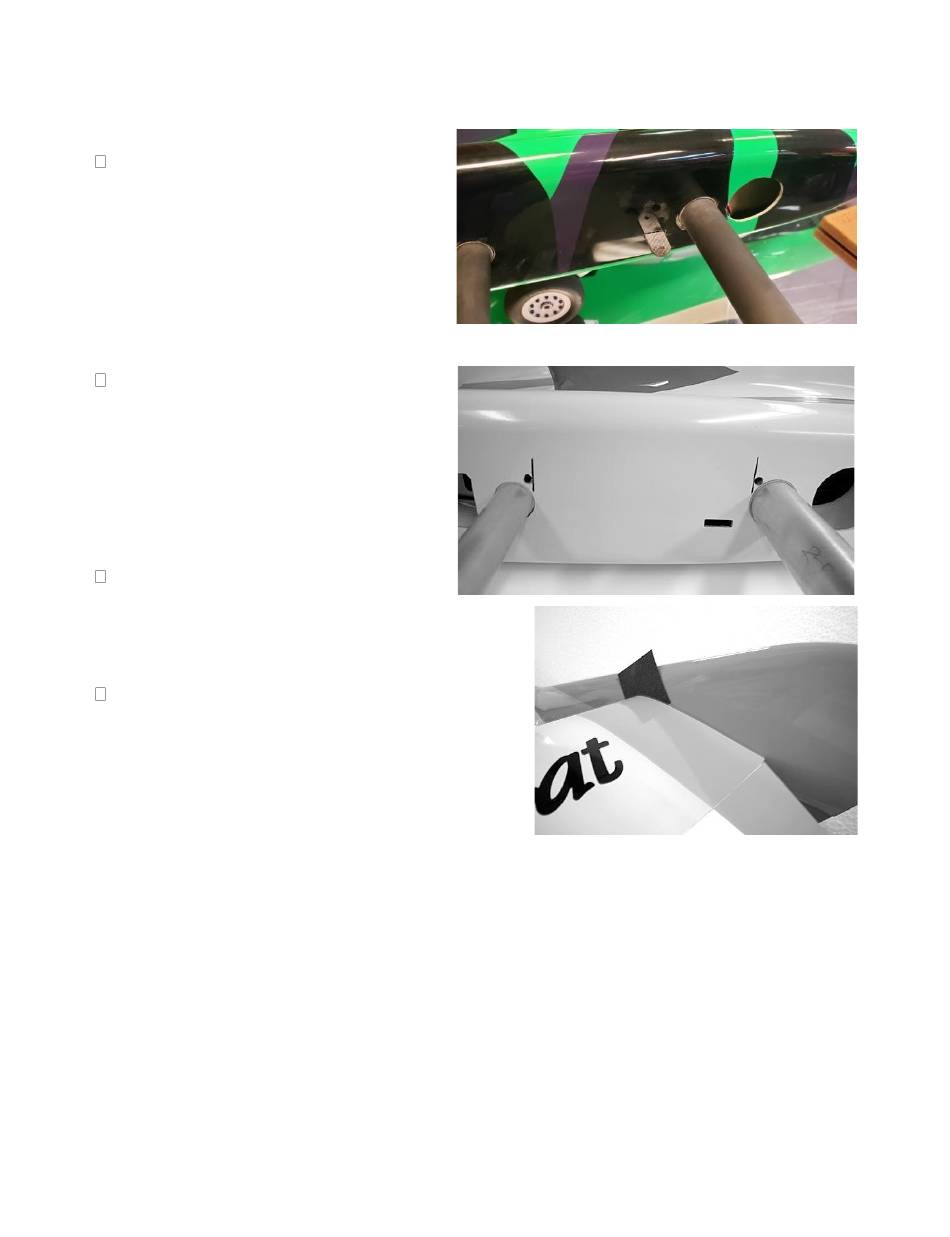

Install maincarbon tubes through the
fuse body. Slide the 2" long carbon
tubes onto the main tubes then
position the booms onto the short
carbon tubes.
Make ink marks vertical and tangent to
tubes as shown. Make 1/4" holes as
shown to allow injection of Aeropoxy
later. Reach through adjacent opening
in boom sides and apply a bit of 5 min
epoxy to short carbon tubes and boom
sides.
For the best fit of the stab to the fin,
first sand down the mold parting line ridges,
then use a piece of #80 grip paper (grit towards
stab) to fine adjust the mating parts.
When all fits properly, remove the stab and
booms and inject Aeropoxy into 1/4" hole to
secure the carbon tubes to the ply bulkheads
inside booms. Apply glue also to carbon tube-
to-boom side joints.
