FLAP RIGGING

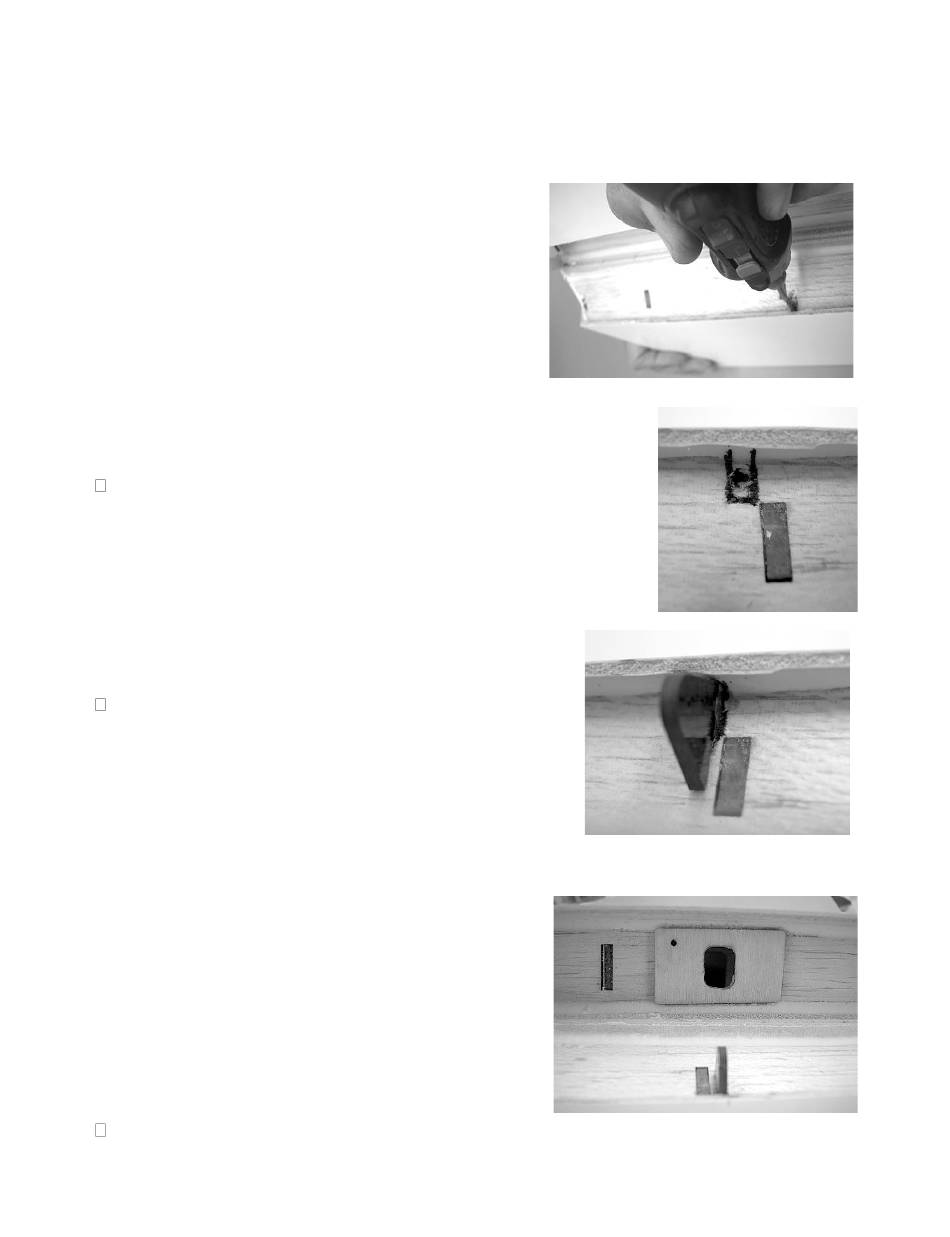

The control horn is mounted into a balsa block built into flap. Location of block is verified
in factory by a hole drilled into flap L.E. Inaddition, outline of horn slot is marked.
Use a 3/32" carbide cutter to cut slot for horn as marked. Slot
must be parallel to and align with top flap skin. Test fit horn
into slot. It should be fully seated against flap L.E.
Glue flap control horn in with Aeropoxy.
❑ Flap linkage passes through wing T.E.
A 1/16" ply doubler is factory installed
to strengthen the wing T.E. at flap
linkage location. Enlarge hole in balsa
T.E. to match plywood doubler.
Attach clevis to flap horn through hole in T.E.
