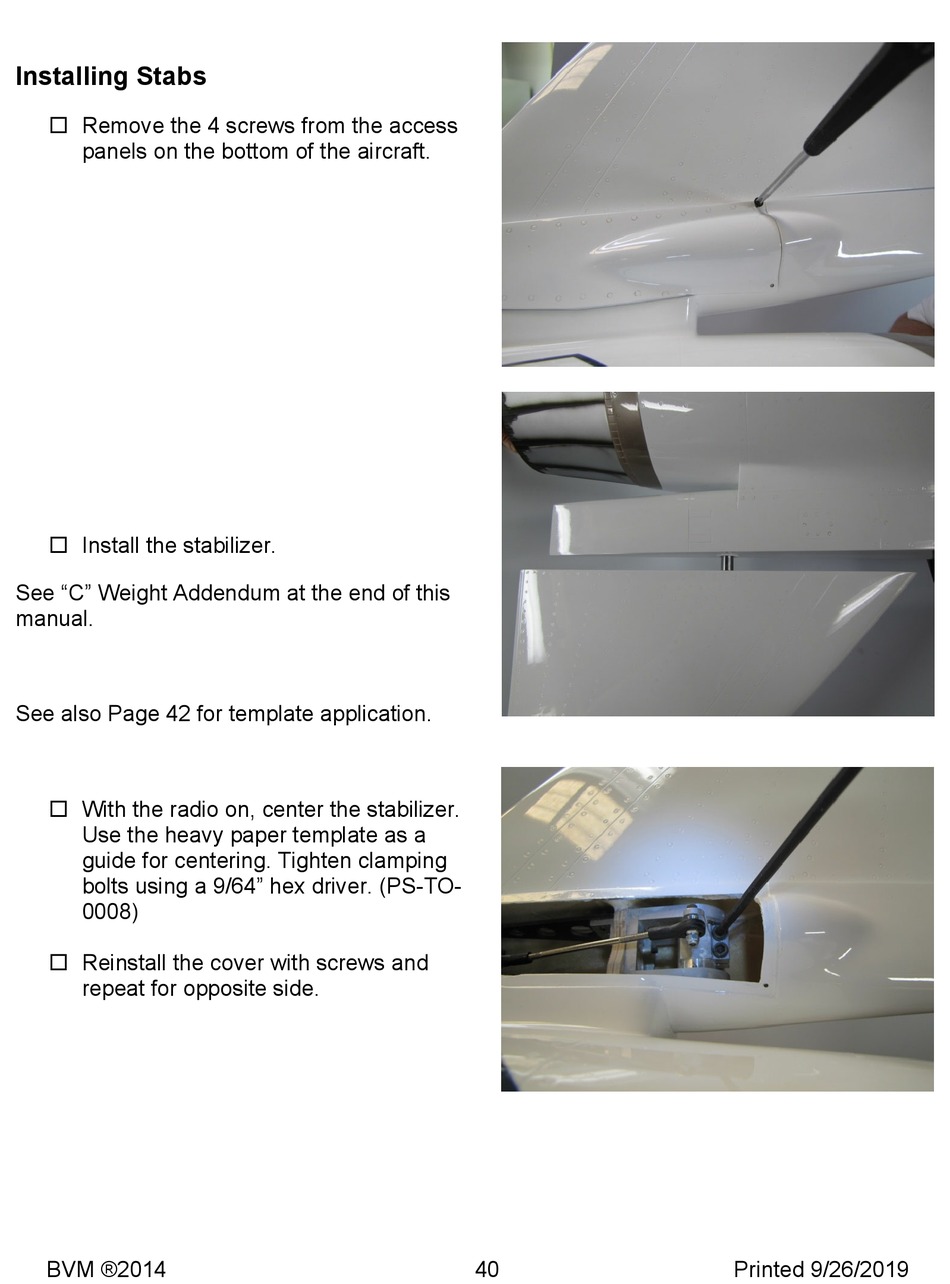

Installing Stabs

 Remove the 4 screws from the access
panels on the bottom of the aircraft.
 Install the stabilizer.
See "C" Weight Addendum at the end of this
manual.
See also Page 42 for template application.
 With the radio on, center the stabilizer.
Use the heavy paper template as a
guide for centering. Tighten clamping
bolts using a 9/64" hex driver. (PS-TO-
0008)
 Reinstall the cover with screws and
repeat for opposite side.
