- Page 1 Technical Information MCHXXX Control Handle powersolutions.danfoss.com...
- Page 2 Minor updates 0502 August 2016 Updated to Engineering Tomorrow design 0501 September 2013 Rebranded to Danfoss layout January 2011 Various updates May 2010 MCHXXX Potentiometer Models with 1K Ohm table updated February 2010 MCHXXX Potentiometer Models with 1K Ohm table updated...
-
Page 3: Table Of Contents
Environmental testing..................................9 Installation Dimensions.......................................10 Connectors....................................... 10 Wiring......................................... 11 Connection diagrams Potentiometer option ..................................14 Potentiometer option with 1K Ohm potentiometer ......................14 PWM Option (primarily)................................15 PWM option performance..............................16 Device repair Return to......................................17 11022667 | BC00000033en-US0601 | 3 © Danfoss | February 2017... -
Page 4: Description

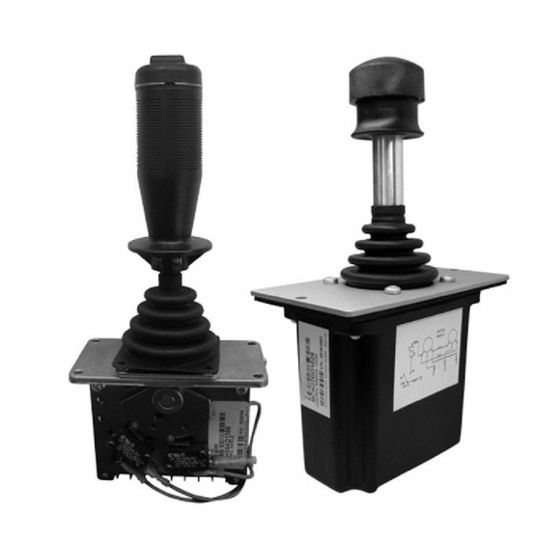

Overview Description The MCHXXX Single Axis Control Handle provides remote electrical actuation of Danfoss pumps/motors, and or other electrically-actuated pump strokers for open loop control systems. The MCHXXX can function as a setpoint for analog or microprocessor-controlled systems for controlling position, speed, pressure, horsepower or other dynamic parameters. -
Page 5: Ordering Information
A wide range of options to the basic control handle allow custom-tailoring to each application. The following ordering specification chart is provided for assistance in determining model number. Other options are possible, consult Danfoss with further questions. Ordering specification chart... - Page 6 † Special Option L, Electronic PWM auxiliary switching, 12 Vdc reached its end of life cycle in 2008 and is no longer available. † Unique configuration, for details contact your Danfoss representative. 11022667 | BC00000033en-US0601 © Danfoss | February 2017...
- Page 7 Number of additional switches needed and actuation angle of each with respect to null • Full current output • Resistance of the driven load • Step current needed (if necessary) For details regarding unique configurations, contact your Danfoss representative. 11022667 | BC00000033en-US0601 | 7 © Danfoss | February 2017...
-
Page 8: Technical Data
Dual-range adjust option 1140B PWM MCHXXX option reached its end of life cycle in 2008 and is no longer available. Proportional Control Handle: Potentiometer option Output current 30° 30° Handle stroke 1139A 11022667 | BC00000033en-US0601 © Danfoss | February 2017... -
Page 9: Environmental Testing
NEMA (National Electrical Manufacturer Association) NEMA 4 = Intended for indoor or outdoor use primarily to provide a degree of protection against windblown dust and rain, splashing water, hose- directed water and external ice formation. 11022667 | BC00000033en-US0601 | 9 © Danfoss | February 2017... -
Page 10: Installation
1135D Connectors 3 or 4 pin Delphi Connector Power + Speed Ground Direction 3524A 4 pin Deutsch Plug DT Series Connector Power + Ground Speed Direction 3525 11022667 | BC00000033en-US0601 10 | © Danfoss | February 2017... -
Page 11: Wiring
Technical Information MCHXXX Installation For optional connectors, contact your Danfoss representative. Wiring A barrier terminal strip inside the handle’s case provides connections to power, ground, and potentiometers when no external cable is ordered. Run a cable from the strip through the strain relief provided on the side or bottom of the case. - Page 12 Clockwise increases output L with (2) threshold adjustments Forward threshold Counter clockwise increases output Reverse threshold Clockwise increases output Forward full stroke Clockwise increases output Reverse full stroke Clockwise increases output 11022667 | BC00000033en-US0601 12 | © Danfoss | February 2017...
- Page 13 Reverse full stroke Clockwise increases output Acceleration/deceleration ramp Clockwise increases time Option L, Electronic PWM auxiliary switching, 12 Vdc reached its end of life cycle in 2008 and is no longer available. 11022667 | BC00000033en-US0601 | 13 © Danfoss | February 2017...
-
Page 14: Connection Diagrams
MCHXXX potentiometer models having either two or single 200 Ohm pots are configured to directly control Danfoss variable pumps with electrical displacement controls (EDCs). Whether two or single pots, both require the same electrical connection to the EDC and only one of the dual coils needs to be connected to achieve forward and reverse pump flow. -
Page 15: Pwm Option (Primarily)
Powered when handle is off center 304.80 mm Cable length with connector Green Valve drive, handle forward 1524.00 mm Cable length without connector The blue and yellow wires provide optional functions. 11022667 | BC00000033en-US0601 | 15 © Danfoss | February 2017... -
Page 16: Pwm Option Performance
±8 mA maximum if not switched (24 Vdc models) Center deadband (optional) ±3º nominal Full stroke current capability Step current Step current occurs at end of deadband. Customer specified. Reference Ordering Information. 11022667 | BC00000033en-US0601 16 | © Danfoss | February 2017... -
Page 17: Device Repair
For devices in need of repair or evaluation, include a description of the problem and what work you believe needs to be done, along with your name, address and telephone number. 11022667 | BC00000033en-US0601 | 17 © Danfoss | February 2017... - Page 18 Technical Information MCHXXX 11022667 | BC00000033en-US0601 18 | © Danfoss | February 2017...
- Page 19 Technical Information MCHXXX 11022667 | BC00000033en-US0601 | 19 © Danfoss | February 2017...
- Page 20 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
