Step 5.

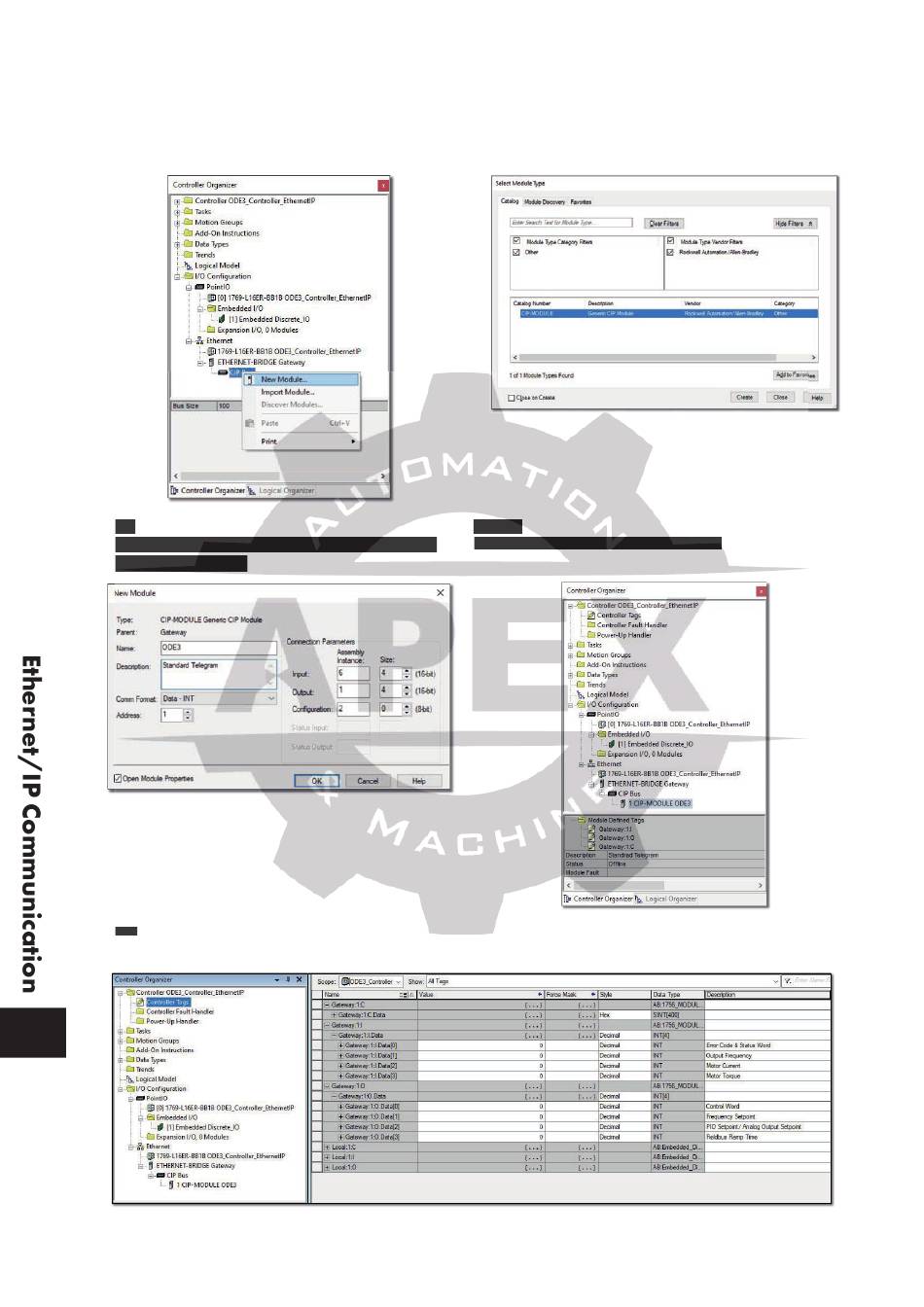

Add the 'New Module' under the 'CIP Bus'
Click the right button on the CIP Bus (under the ETHERNET-
BRDIGE) and add the New Module
Step 7. Step 7.
Assign the drive name, confi gure the Assembly Instances and Assign the drive name, confi gure the Assembly Instances and
sizes for Standard Telegram sizes for Standard Telegram
Step 8. Step 8.
Tags for the ODE3 drive are created int the Controller Tags window
8
36 | Fieldbus Guide | Version 1.02
Step 6.
Select the 'CIP-Module' from the list
Step 8. Step 8.
Device should be added under the CIP Bus Device should be added under the CIP Bus
