6. Ethernet Connection

6.1. Available Interface Options

Ethernet interfaces are optionally available for Optidrive E3 and Optidrive Compact 2 products which support either Ethernet/IP
protocol or Modbus TCP protocol. Part numbers for these interfaces are shown in the table below. The correct interface should be
selected according to the drive type.
Drive Family
Optidrive E3 IP20
Optidrive E3 IP66
Optidrive Compact 2

6.2. External Interface

6.2. External Interface

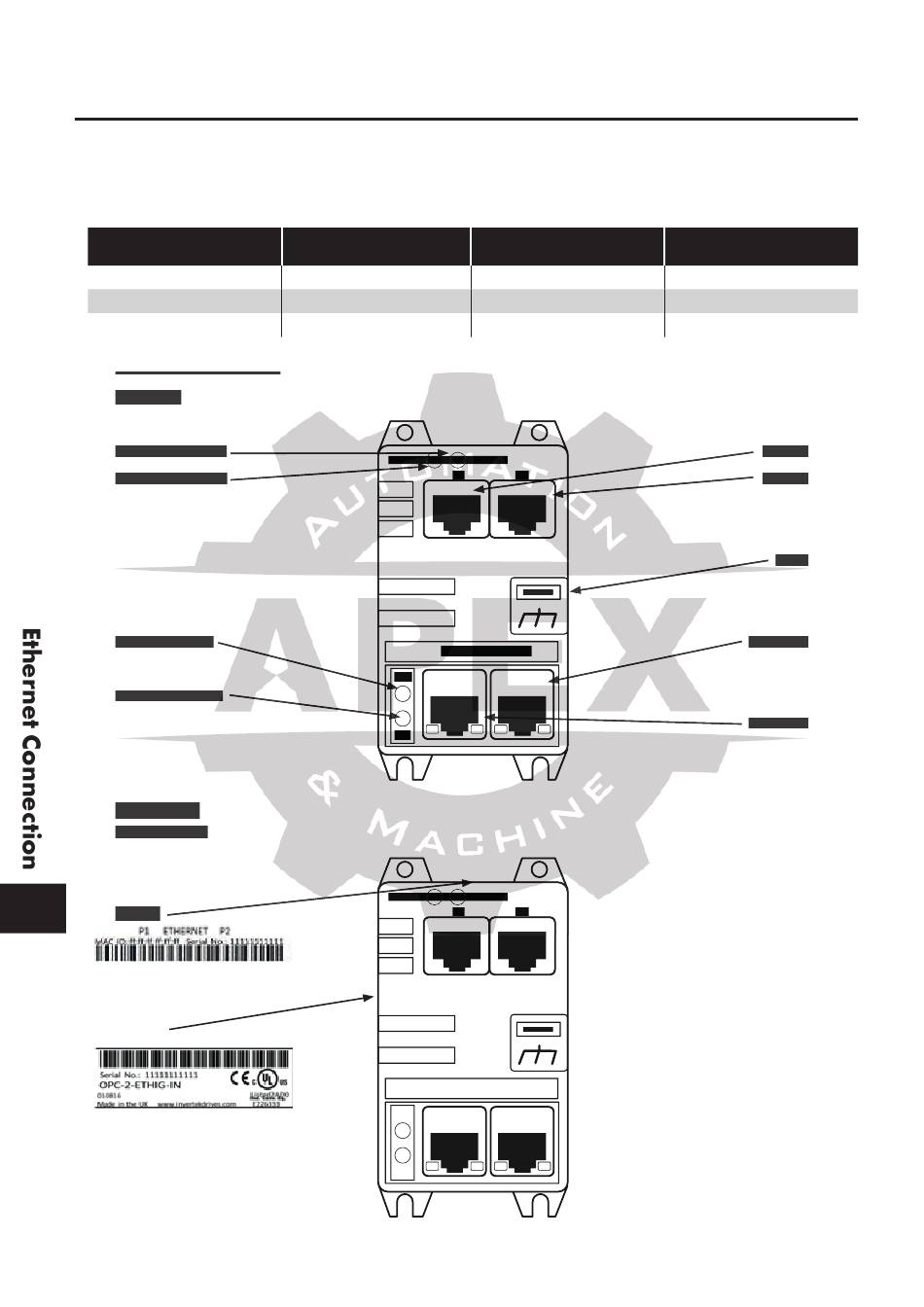

6.2.1. Layout 6.2.1. Layout
ERROR LED Indicator ERROR LED Indicator
COMM LED Indicator COMM LED Indicator
Module Status LED Module Status LED
Network Status LED Network Status LED
6.2.2. Labelling 6.2.2. Labelling
There are two labels: There are two labels:
6
Top Label: Top Label:
Provides the MAC ID for the module
Side Label:
Provides, the model code and
serial number data
14 | Fieldbus Guide | Version 1.02
Ethernet/IP Interface
Interface Type
External Option
Internal Option Drive Model Code + "-EIP"
Plug in Option
COMM COMM COMM COMM COMM COMM ERROR ERROR ERROR ERROR ERROR ERROR
D1 D1
P1 Ethernet P2 P1 Ethernet P2
MS MS
NS NS
COMM COMM COMM ERROR ERROR ERROR
D1 D1
P1 Ethernet P2
MS
NS
Model Code
OPT-2-ETHEG-IN
Drive Model Code + "-MTP"
OPT-2-ETHIG-IN
D2 D2
D2 D2
Modbus TCP Interface
Model Code
OPT-3-MTPEG-IN
OPT-2-MTPEG-IN
Serial Port D1 Serial Port D1
Serial Port D2 Serial Port D2
Ground Tab Ground Tab
Ethernet Port P2 Ethernet Port P2
Ethernet Port P1 Ethernet Port P1
