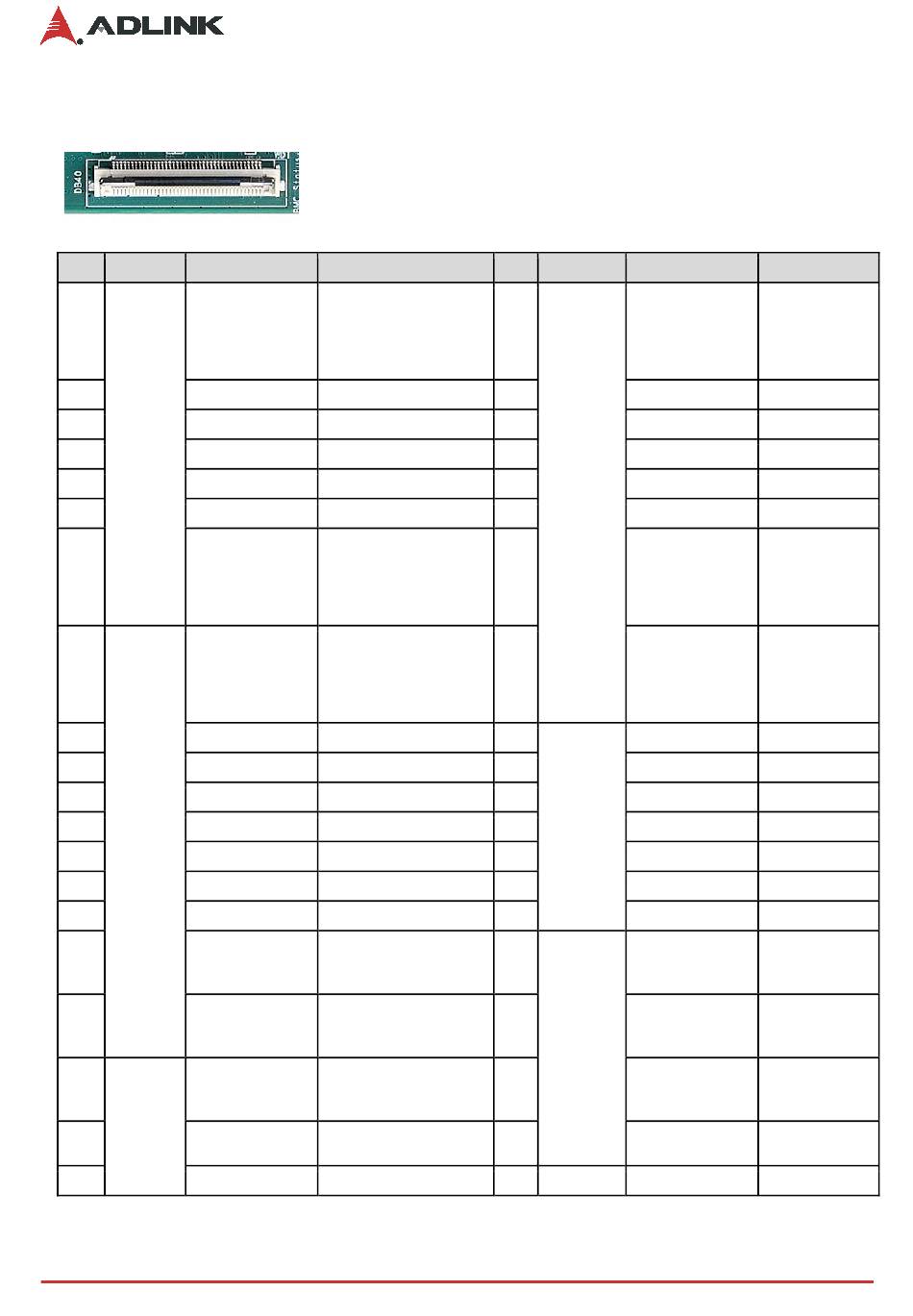

4.2.11. DB40 Debug Connector
FPC Connector Type: FCI 59GF Flex 10042867
1
Pin Interface Signal
40 SPI VCC_SPI_IN
Program
interface
39 GND
38 SPI_BIOS_CS0#
37 SPI_BIOS_CS1#
36 SPI_BIOS_MISO
35 SPI_BIOS_MOSI
34 SPI_BIOS_CLK
33 LPC Bus 3V3_LPC
32 GND
31 CB_RESET#
30 RST#
29 CLK33_LPC
28 LPC_FRAME#
27 LPC_AD3
26 LPC_AD2
25 LPC_AD1
24 LPC_AD0
23 BMC 3.3V_BMC
Program
interface
22 3.3V_BMC
21 GND
Note: The pin description on the Debug Module is the inverse of that on the motherboard.
28
40
Remark
SPI Power Input from
flash tool to module. HW
need add MOS FET to
switch SPI power for SPI
ROM
Platform Reset
Pin Interface Signal
20 BMC TXD6
Program
interface
(continued)
19 RXD6
18 FUMD0
17 RESET_IN#
16 DATA
15 CLK
14 OCD0A
13 OCD0B
12 Test points PWRBTN#
11 SYS_RESET#
10 CB_RESET#
9 CB_PWROK
8 SUS_S3#
7 SUS_S4#
6 SUS_S5#
5 BMC POSTWDT_DIS#
Debug
signals
4 SEL_BIOS
3 BIOS_MODE
2 BMC_STATUS
1 Reserved
Remark
Include a jumper
to connect
OCD0A via 1K0
pull-up to
3.3V_BMC
Include a jumper
to connect
OCD0A via 1K0
pull-up to
3.3V_BMC
Connect to
Jumper for
Debug
Connect to
Jumper for
Debug
Connect to
Jumper for
Debug
Connectors and Jumpers
