3.3.

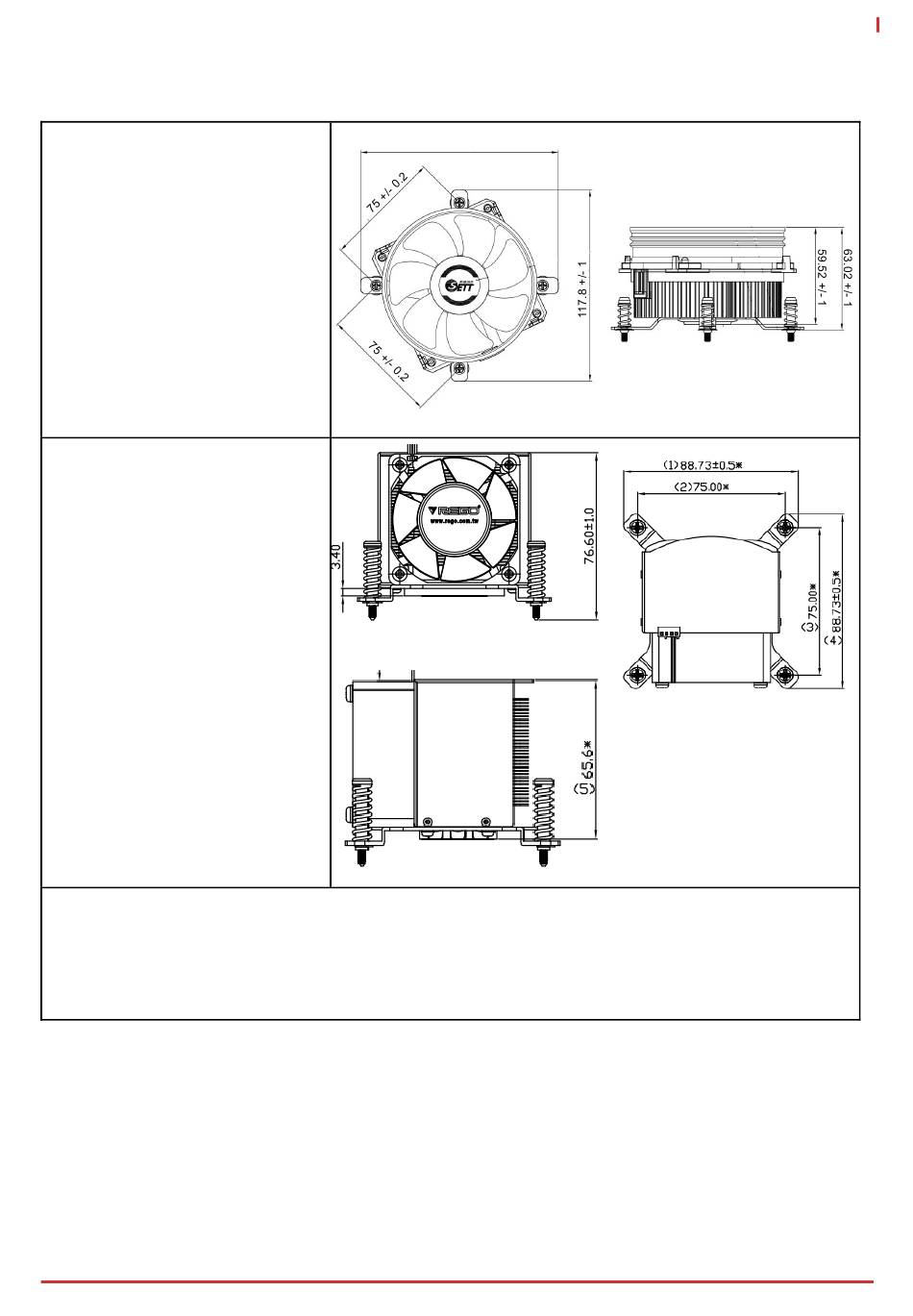

Thermal Solutions

LGA1150 CPU Cooler, H=59.52mm,

for 35W TPD CPU

P/N: 32-20581-0000

Standard Temp.: 0°C to 60°C

LGA1150 CPU Cooler, H=65.6 mm, for

54W ~ 65W TDP CPU

P/N: 32-20818-1000-A0

Standard Temp.: 0°C to 60°C

NOTICE:

Risk of damage!

These coolers are designed for the ADi-SAXX Box PC (worst case), and thermal performance will change with

differences in cabinet spaces. In no event may the chassis ventilation holes be obstructed. Always ensure that

sufficient clearance (at least 50 mm to each direction except fo the base) exists around the cooling vents for

unrestricted airflow.

Failure to comply with this instruction could result in damage to the ADi-SAXX or AmITX-CF-G.

Mechanical Layout

117.8 +/- 1

AmITX-CF-G
