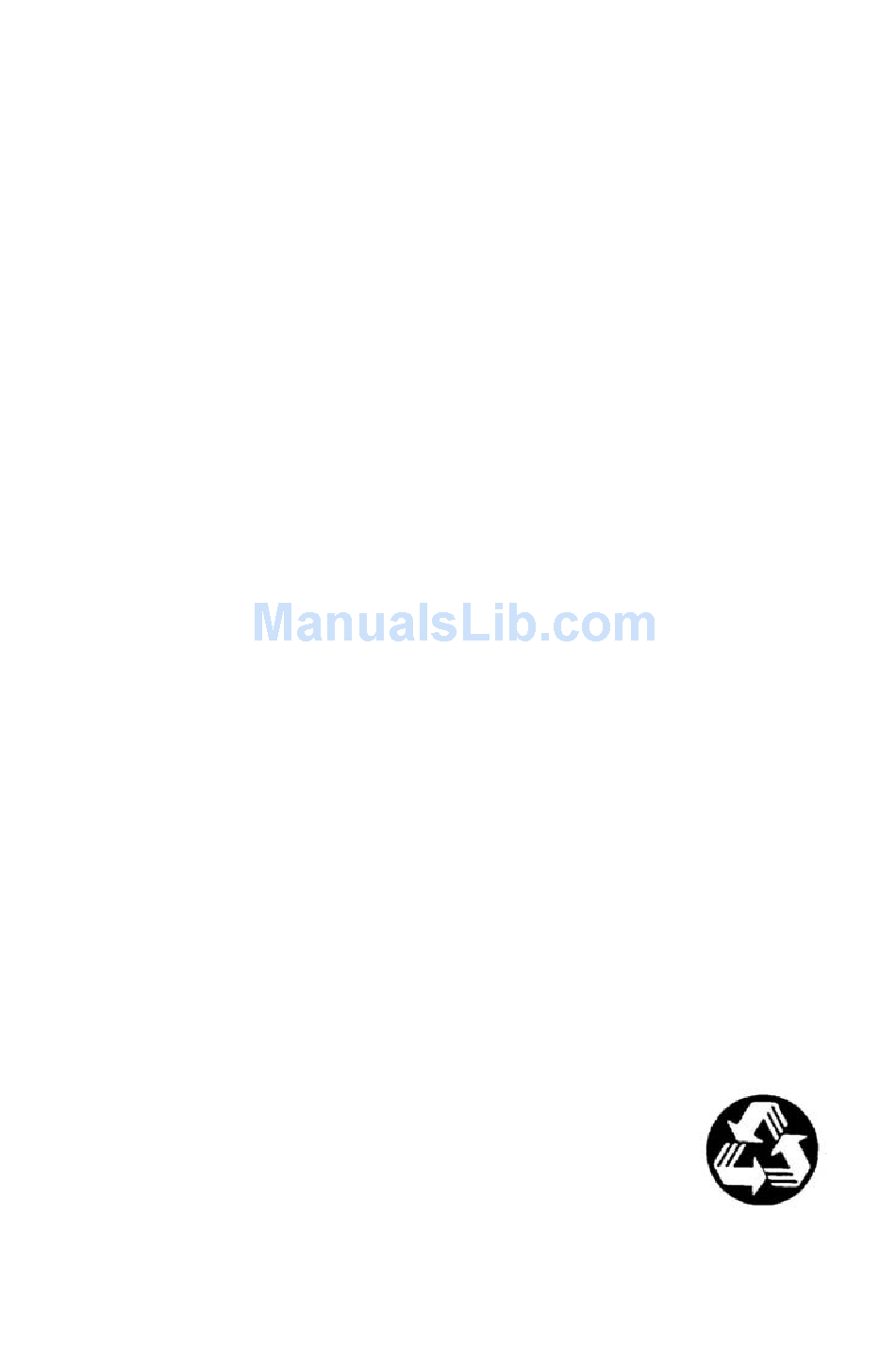

- Page 1 NuPRO-842 Series Full-Size PICMG 1.0 Single Board Computer with Pentium 4 CPU User’s Guide Recycled Paper...
- Page 3 Trademarks ® NuPRO is a registered trademark of ADLINK Technology Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
- Page 5 Getting Service from ADLINK Customer Satisfaction is top priority for ADLINK TECHNOLOGY INC. If you need any help or service, please contact us. ADLINK TECHNOLOGY INC. Web Site http://www.adlinktech.com Sales & Service Service@adlinktech.com +886-2-82265877 +886-2-82265717 Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan Please email or FAX your detailed information for prompt, satisfactory, and consistent service.
-
Page 7: Table Of Contents
Table of Contents How to Use This Guide................iii Chapter 1 Introduction ................1 Unpacking Checklist................ 2 Features 3 Functional Blocks and Main Board ..........4 1.3.1 Intel Pentium 4 Processor ..........6 1.3.2 The Intel® 845GV Graphics Chipset Memory Controller Hub (GMCH) .............. - Page 8 2.3.2 FSB Frequency ............... 27 2.3.3 COM2 Function Selection ..........27 2.3.4 COM2 Mode Selection............ 28 Chapter 3 Getting Started ..............29 CPU Installation ................29 Memory Installation ............... 30 3.2.1 Memory Configuration Options ........30 3.2.2 Installing Memory Modules ..........30 Connecting IDE Devices to the NuPRO-842 .........
-
Page 9: How To Use This Guide
How to Use This Guide This manual is intended to assist users to configure the NuPRO-842 Full-Size PICMG 1.0 Single Board Computer with Pentium 4/Pentium 4 Mobile CPU. It is divided into 5 chapters. Chapter 1 Introduction Gives an overview of the product features, applications, and specifications. -
Page 11: Chapter 1 Introduction
Introduction The NuPRO-842 is a full-size PICMG 1.0 Pentium 4-based Single Board Computer (SBC) with Intel 845GV chipset. It supports both PCI and ISA buses. The CPU module supports a front side bus (FSB) of 533MHz and a maximum CPU clock of 3.06 GHz featuring 32-bit/33MHz PCI/ISA bus with up to 2GB high performance DDR host SDRAM support. -
Page 12: Unpacking Checklist
Unpacking Checklist Check the shipping carton for any damage. If the shipping carton and contents are damaged, notify the dealer for a replacement. Retain the shipping carton and packing material for inspection by the dealer. Obtain authorization before returning any product to ADLINK. Check that the following items are included in the package, if there are any missing items, contact your dealer: •... -
Page 13: Features
Features • PICMG 1.0 Rev. 1.0 PCI/ISA Specification compliant. • PCI Local Bus Specification, Rev 2.2 compliant. • Intel mPGA478 Socket Pentium 4 FC-PGA2 CPU processor. • Supports Front Side Bus frequency of 533/400MHz • Two 184-pin DIMM sockets, support 144-bit, 266MHz, DDR DRAM. Supports a maximum of 2GB of memory. -
Page 14: Functional Blocks And Main Board
Functional Blocks and Main Board The NuPRO-842 functional block and main board diagrams are provided below: Functional Block Diagram Functional Block Diagram 4 • Introduction... - Page 15 Main Board Drawing Main Board Drawing Introduction • 5...
-
Page 16: Intel Pentium 4 Processor
1.3.1 Intel Pentium 4 Processor The NuPRO-842 is a full-sized single board computer (SBC) that supports a single mPGA478 Intel® Pentium® 4 processor or a 478-pin Micro Flip-Chip Pin Grid Array (Micro-FCPGA) Mobile Intel® Pentium® 4 Processor – M. The Pentium 4 processor runs at a core speed of up to 3.06GHz and the Mobile Intel®... -
Page 17: Video
1.3.5 Video The NuPRO-842 provides two display ports. One analog port is output on rear IO panel. The analog port uses an integrated 350 MHz RAMDAC of the 845GV GMCH that can directly drive a standard progressive scan monitor up to a resolution of 2048x1536 pixels with 32-bit color at 60 Hz. -
Page 18: Ide Controller And Floppy Interface Controller
(480Mb/s) require shielded and tested cables. NuPRO-842 will provide the standard 0.5A at 5V to the peripherals. 1.3.10 IDE Controller and Floppy Interface Controller The NuPRO-842 includes an IDE Controller (in the ICH4) and a Floppy Disk Controller (in the W83627HF). The IDE Controller provides support for internal or external IDE drives. -
Page 19: Specifications
Specifications Compliant Specifications • PICMG 1.0 Rev. 1.0 PCI-ISA Specification compliant • PCI Local Bus Specification, Rev 2.2 compliant Form Factor • Full-Size Single Board Computer, 388mm x 122mm (15.2”x4.8”) CPU/Cache • Single mPGA478 Intel Pentium 4 processor or a 478-pin Micro Flip-Chip Pin Grid Array (Micro-FCPGA) Mobile Intel Pentium 4 Processor –... - Page 20 Gigabit Ethernet • Two Gigabit Ethernet ports with an Intel 82540EM Ethernet controller • Support 1000Base-T, 100Base-TX and 10Base-T (IEEE 802.3, 802.3u, and 802.3ab). • IEEE802.3x compliant flow control, supports auto-negotiation and link setup • Speed and Link LEDs on the RJ-45 connector Graphic Display •...
- Page 21 OS Compatibility • Microsoft® Windows 2000, Windows XP, Red Hat Linux • Other OS support available upon request. Environment • Operating temperature: 0 - 60 °C (with proper airflow and active heatsink) • Storage temperature: -40 - 85 °C • Humidity: 5% - 95% non-condensed •...
-
Page 23: Chapter 2 Jumpers And Connectors
Jumpers and Connectors This chapter will familiarize users with the NuPRO-842 interfaces and connections available before getting started. It will provide information about the board layout, connector definitions, and jumper setup, including the following information: • NuPRO-842 board outline and illustration •... -
Page 24: Nupro-842 Board Outline And Illustration
NuPRO-842 Board Outline and Illustration 2.1.1 NuPRO-842 Top View 14 • Jumpers and Connectors... - Page 25 Figure 3: NuPRO-842 Top View CPU P4/P4-M GMCH 82845GV ICH4 FW82801DB Clock Generator PCI to ISA Bridge IT8888 Intel GB Ethernet 82540EM Intel GB Ethernet 82540EM Firmware Hub 842PLD RS422/RS485 PLD CN23 ATX Power CONNECTOR CPU HEATSINK SKT CPU FAN Jumpers and Connectors •...
- Page 26 CN21 CPU POWER CONNECTOR DIMM1 DDR DIMM SOCKET DIMM2 DDR DIMM SOCKET GMCH HEATSINK CN19 MINI PCI CONNECTOR FSB FREQUENCY SELECTION JUMPER EXTERNAL USB PIN HEADER CLEAR CMOS JUMPER CR2032 BATTERY HOLDER BUZZER CN15 DB-842DVI CNN CN16 USB2.0 BOX HEADER CN18 USB2.0 BOX HEADER PRINTER PORT...
-
Page 27: Vga Connector
2.2.1 VGA Connector Signal Name Signal Name Green Blue N.C. N.C. DDCDAT HSYNC VSYNC DDCCLK VGA Connector Pin Definition Jumpers and Connectors • 17... -
Page 28: Com1/Com2 Pin Header
2.2.2 COM1/COM2 Pin Header SIGNAL FUNCTION Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Ground Data Set Ready Request to Send Clear to Send Ring Indicate No Connect COM1/ COM2 Pin Definition 2.2.3 Gigabit Ethernet (RJ-45) Connector LAN1 LAN2 SIGNAL FUNCTION Green LED... -
Page 29: Parallel Port Connector
2.2.4 Parallel Port Connector Signal Name Pin # Pin # Signal Name Line printer strobe AutoFeed PD0, parallel data 0 Error PD1, parallel data 1 Initialize PD2, parallel data 2 Select PD3, parallel data 3 Ground PD4, parallel data 4 Ground PD5, parallel data 5 Ground... -
Page 30: Integrated Ps/2 Kbd/Ms Connector
2.2.7 Integrated PS/2 KBD/MS connector Both the keyboard and mouse can be connected at the same time using an ADLINK Y cable. SIGNAL FUNCTION KBDAT Keyboard Data MSDAT Mouse Data Ground KBMS5V Power KBCLK Keyboard Clock MSCLK Mouse Clock PS/2 Keyboard & Mouse Connector Pin definition 2.2.8 Floppy Disk connector Function... -
Page 31: Primary/Secondary Ide Connector
2.2.9 Primary/Secondary IDE Connector Signal Name Pin # Pin # Signal Name Reset IDE Ground Host data 7 Host data 8 Host data 6 Host data 9 Host data 5 Host data 10 Host data 4 Host data 11 Host data 3 Host data 12 Host data 2 Host data 13... -
Page 32: Front Panel Pin Header
2.2.10 Front Panel Pin Header SIGNAL FUNCTION PIN GROUP Power Watch Dog LED Power LED WDTLED# Signal PLED Power LED Signal KEYLOCK Keyboard lock Key Lock Ground Ground No connect PWRON Power-on signal ATX Power +5VSB Standby Power Connector Power PME# Management Event... -
Page 33: Mini Pci Socket
2.2.11 Mini PCI Socket PIN SIGNAL PIN SIGNAL PIN SIGNAL PIN SIGNAL +3.3V FRAME# CLKRUN# TRDY# SERR# STOP# +3.3V PERR# DEVSEL# C/BE[1] AD[14] AD[15] EX_INTC# AD[13] INTB# AD[12] AD[11] +3.3V INTA# AD[10] EX_CLK EX_INTD# AD[9] +3.3VS AD[8] C/BE[0] RESET# AD[7] +3.3V +3.3V +3.3V... -
Page 34: Usb Connector
2.2.12 USB Connector SIGNAL FUNCTION Power USB - Data (-) USB + Data (+) Pin 1 Ground 2.2.13 AC’97 Connector SIGNAL FUNCTION SIGNAL FUNCTION Ground AC_BITCLK Bit Clock Ground AC_SDIN0 Data Input 0 Power AC_SDOUT Data Output AC_SDIN2 Data Input 2 AC_SDIN1 Data Input 1 AC_SYNC Synchro-signal 10 AC_RSTJ... -
Page 35: External Kb/Ms Connector
2.2.16 External KB/MS Connector SIGNAL FUNCTION COMMENTS Keyboard KBCLK Data Mouse Data KBDATA Keyboard / Mouse Ground Combine Interface Power Keyboard Clock Jumpers and Connectors • 25... -
Page 36: Nupro-842 Jumper Setting
NuPRO-842 Jumper Setting The NuPRO-842 is designed for maximum flexibility with as few jumpers as possible. Most of the configuration options can be selected through the BIOS menu. However, some options still need to be configured by jumpers. Description Location Clear CMOS FSB Frequency Selection COM2 Function Selection... -
Page 37: Fsb Frequency
2.3.2 FSB Frequency FSB Frequency NuPRO-842 JP8 Auto 400 MHZ 533 MHZ The NuPRO-842 will automatically detect Front Side Bus speed, or you can manually force it with jumper JP8. 2.3.3 COM2 Function Selection FUNCTION Jumper Setting RS-232 RS-422 Jumpers and Connectors • 27... -
Page 38: Com2 Mode Selection
RS-485 COM2 is configurable to act in accordance with the following standards: RS-232, RS-422, and RS-485. Use jumpers J1, J2, and J3 to adjust as needed. 2.3.4 COM2 Mode Selection Jumper Setting Mode RS-422 / RS-485 RS-485+ The mode of COM2 can be changed using jumper JP4. 28 •... -
Page 39: Chapter 3 Getting Started
Getting Started This chapter gives a summary of what is required to setup an operational system using the NuPRO-842. Hardware installation and BIOS overview is discuss. CPU Installation The NuPRO-842 CPU module supports a single Intel mPGA478 Pentium 4 processor or 478-pin Micro Flip-Chip Pin Grid Array (Micro-FCPGA) Pentium 4 Processor-M. -
Page 40: Memory Installation
Memory Installation This section details the procedure for installing system memory on the NuPRO-842. Correct memory configuration is critical for proper system operation. 3.2.1 Memory Configuration Options The NuPRO-842 has flexible memory configuration options, including support for 64MB, 128MB, 256MB, 512MB, and 1GB modules. Note that the modules must all be the same type and density and must be installed in pairs and if only one pair of DIMM modules is used, populate DM1 and DM2 first. -
Page 41: Connecting Ide Devices To The Nupro-842
To install either type of module follow these procedure: Inserting DIMM into Socket Align the module to the socket so that the edge connectors on the module match the socket sections. Hold the module perpendicular to the motherboard and press the edge connector into the socket. -
Page 42: Bios Configuration Overview
BIOS Configuration Overview The BIOS has many separately configurable features. These features are selected by running the built-in Setup utility. System configuration settings are saved in a portion of the battery-backed RAM in the real-time clock device and are used by the BIOS to initialize the system at boot-up or reset. The configuration is protected by a checksum word for system integrity. -
Page 43: Operating System Installation
Operating System Installation For more detailed information about your operating system, refer to the documentation provided by the operating system vendor. Install peripheral devices. CompactPCI devices are automatically configured by the BIOS during the boot sequence. Most operating systems require initial installation on a hard drive from a floppy or CDROM drive. -
Page 45: Chapter 4 Device Driver Installation
Device Driver Installation To install drivers for the NuPRO-842, refer to the installation information in this chapter. Basic driver installation information Windows 98/ME/NT4.0/2000/XP are outlined in this section. For installation information for non-Windows Operating Systems, refer to the extensive explanation in the ADLINK CD. -
Page 46: Hardware Configuration File Installation
4.1.2 Hardware Configuration File Installation This section describes how to install the hardware configuration files into a system operating Windows 98/ME/2000/XP. Note: Record the location of the Windows 98/ME/2000/XP directory before installing the driver. Check the System Requirements. Windows 98/ME/2000/XP must be fully installed and running on the system prior to running this software. - Page 47 Installing the Drivers for Windows 98/ME Boot Windows 98/ME. The driver is included in the ADLINK CD. Run win9x131.exe under the directory: X:\CHIPDRV\VGA\I845GV . Click Next> on Welcome screen. And select Typical on Setup Type screen and click Next>. Use default program folders on Select Program Folder screen. Click Next>...
-
Page 48: Lan Driver Installation
4.2.2 LAN Driver Installation This section describes the LAN driver installation for the onboard Ethernet controllers, the Intel 82540EM . The relative drivers are located in the following directory of the ADLINK CD: X:\CHIPDRV\LAN . The Intel LAN drivers supports the following OS or platforms: Windows 98 SE, Windows ME, Windows NT 4.0, Windows 2000, Windows XP, and Linux All the above drivers are included in the ADLINK CD. - Page 49 Driver Installation on Windows NT Windows NT may ask to install a LAN driver from its own library of drivers. We recommend that users manually update the LAN drivers, which come with the ADLINK CD to guarantee compatibility. After installing Windows NT, please update to the new driver by following these procedures.
-
Page 51: Chapter 5 Watchdog Timer
Watchdog Timer This chapter explains the operation of the NuPRO-842 watchdog timer. It provides an overview of watchdog operations and features. Sample programs are located at X:\CHIPDRV\WDT\DOS\NP842 . Watchdog Timer Overview The primary function of the watchdog timer is to monitor the NuPRO-842 operation and to reset the system if the software fails to function as programmed. -
Page 52: Using The Watchdog In An Application
5.1.1 Using the Watchdog in an Application The following topic is provided to help users learn how to use the watchdog in an application. The watchdog reset function is also described. The watchdog reset is controlled through the watchdog "Control and Status Registers." Watchdog Reset An application using the reset feature enables the watchdog reset, sets the terminal count period, and periodically strobes the watchdog to keep it from... -
Page 53: Warranty Policy
Warranty Policy Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the following carefully: Before using ADLINK’s products please read the user manual and follow the instructions exactly. When sending in damaged products for repair, please attach an RMA application form.
