6.3

Cross-over Ethernet connection

The instructions in this section are only applicable if it is not possible to connect to the PF via
the network or via USB connection and when the serial connection is used by the Serial port
adapter.
Network configuration in Power Focus
Configure network settings (IP-address and Subnet mask) directly on the Power Focus.
On Power Focus compact, use F8, on Power Focus Graph, set parameters C300 IP address and C301
Subnet mask. Default router is not required for this connection.
Setting up PC network configuration
The PC must be configured for fixed IP address. The following instructions show an example from
Microsoft Windows XP.
1. Open the start menu and click
2. Right-click on the

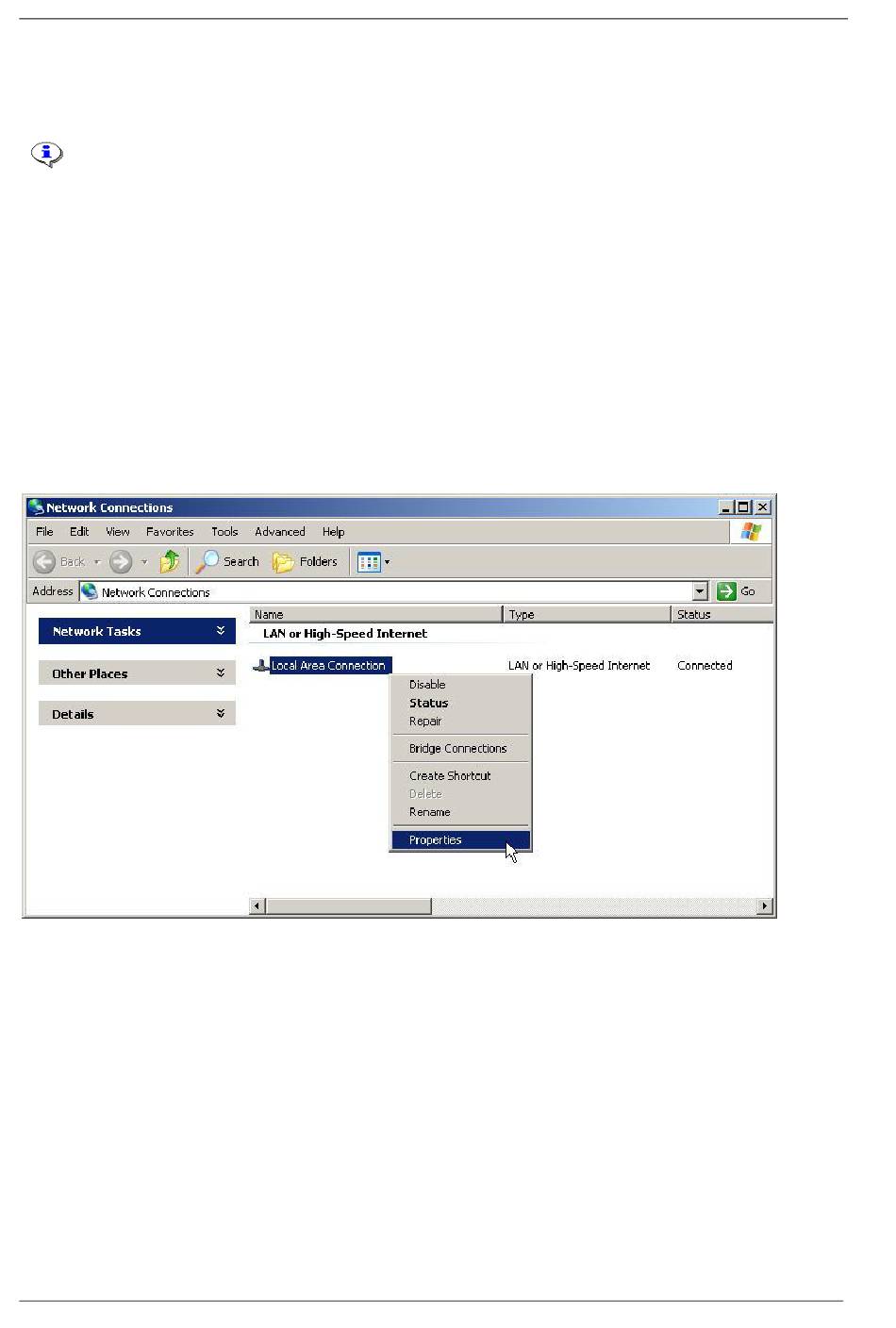

Figure 34 Network Connections
32 (36)
Settings > Network Connections
Local Area Connection
.
and select (Figure 34).
Properties
