Antenna placement

The antenna must be located with free line of sight to
the tool, for example above pallets and other
equipment.
The antenna on the serial port adapter can be
adjusted to optimize performance.
In IRC Focus, the antenna is built-in behind the front
panel.
Since the IRC Focus has a smaller antenna, it is
especially important to ensure proximity and
obstruction-free placement.
Place the controller in free line of sight to the tool.
3.3

Tool preparation

The battery must be charged before proceeding.
3.4

Setting up the Power Focus software

The Power Focus can be programmed from ToolsTalk Power Focus or directly on Power Focus Graph.
ToolsTalk Power Focus:
1. Establish a connection with program control from ToolsTalk.
2. Open
Power Focus Map > Tool > Configuration > Connection
parameters.
3. Proceed to section
Power Focus Graph:
1. Press
PROG > Tool > Configuration > Connection
2. Proceed to section
3.5

Setting up tool communication

You need to set up how to communicate with the tool, i.e., type of connection.
9836 3043 01
3.5 Setting up tool communication
3.5 Setting up tool communication

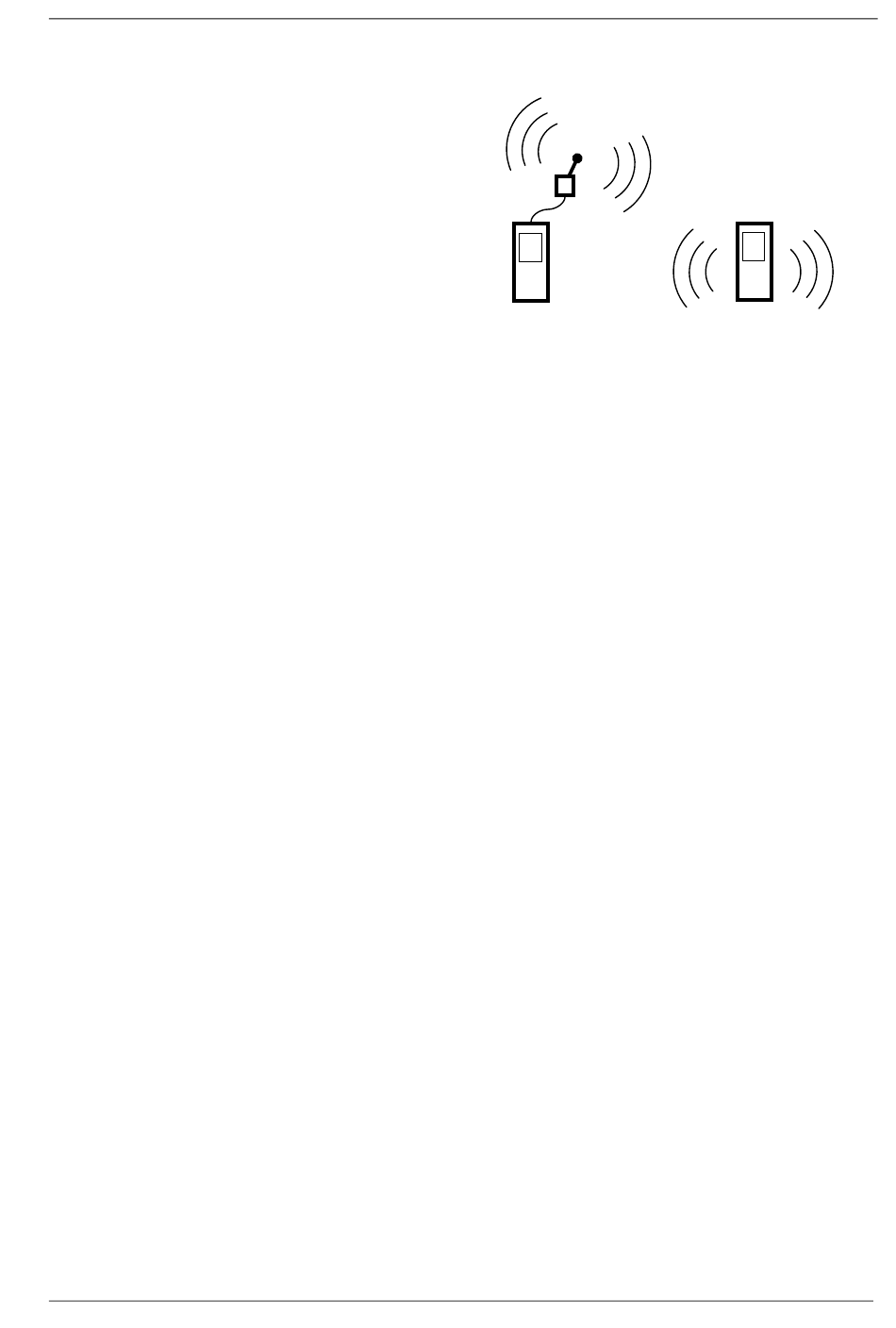

Figure 9 Antenna placement of the controller
to access the radio and connection
and select connection type.
to access the radio and connection parameters.
and select connection type.
