IRC-W (dualband)
 13 (22 MHz) infrastructure channels in the 2.4 GHz band.
 21 infrastructure channels in the 5.0 GHz band (Unii-band 1, Unii-band II, Unii-band-IIe and Unii-
band III)
 11 ad-hoc channels in the 2.4 GHz band (channels 1-11)
 4 ad-hoc channels in the 5.0 GHz band (Unii-band 1)
 1 fixed channel used for communication.
 Frequency planning needed.
 Installation support from IT department needed.

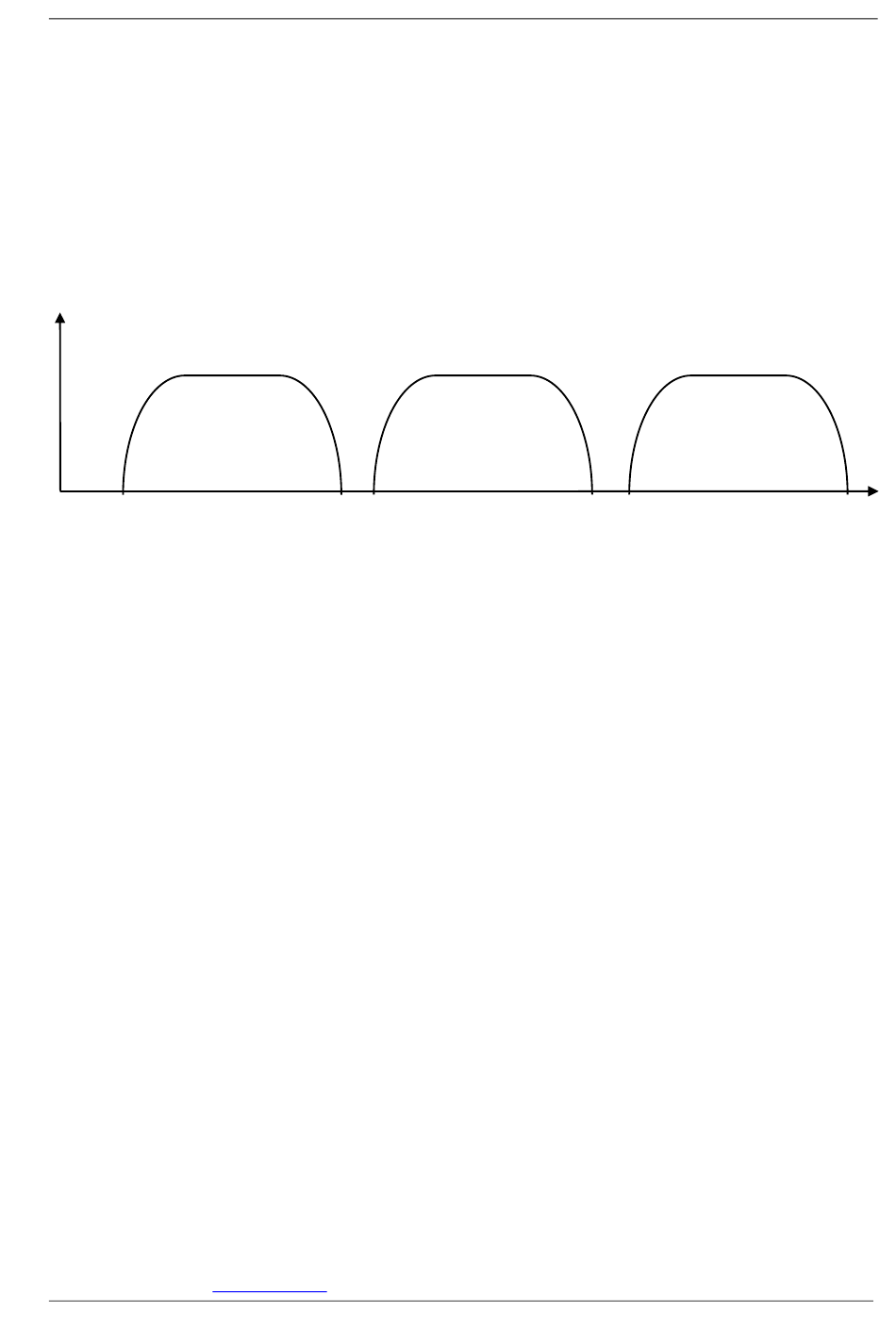

Figure 6: IRC-W, three channels occupying the 2.4GHz ISM band with a channel bandwidth of 22 MHz.
Channel No. Band (GHz)
0 Automatic
1-14 2.412GHz-
2.484GHz
36 5.15-5.25 GHz
40
44
48
52 5.25-5.35 GHz
56
60
64
100 5.5 GHz
104
108
112
116
132 5.6-5.7 GHz
136
140
149 5.745-5.825 GHz
153
157
161
165
More information at www.wi-fi.org.
9836 3043 01
Description
2.4 GHz or 5.0 GHz band, where channel is chosen automatically to optimize performance.
Channel distribution:
North America or FCC domain (1-11)
Europe or ETSI domain (1-13)
Japan (1-14) – not supported
Unii-band 1
Unii-band II (restrictions for ad-hoc usage – please contact Atlas Copco representative)
Uniband IIe (restrictions for ad-hoc usage – please contact Atlas Copco representative)
