System setup
This is done by pressing the right button again until the right number is shown on the display.
Mode 3 works exactly the same way as Mode 1.
4. When the right number is displayed, it is stored by pressing the left button again. The selector
is now ready to be used.
The mode will be stored in the selectors memory even after power off.
3.8

Connecting tool with ToolsTalk Service

The docking station is useful when configuring the tool to operate in an infrastructure W-LAN
environment. It is also useful for service operation on the tool software or tool parameters.
:
1. Connect the tool to
the docking
station. For
instructions on
how to connect the
tool, see section
6.1 Docking
station setup.
2. In ToolsTalk
Service, open
Options > Settings
3. Select and
Port
device.
USB
4. Click .
OK
5. Click the
Connect
when the tool is
connected to the
Tensor STB docking
station.
The tool stays connected
during the session with
ToolsTalk Service.
6. Open
Configuration > IRC-W
Power Focus, and
Power Focus IP port
18 (36)
.

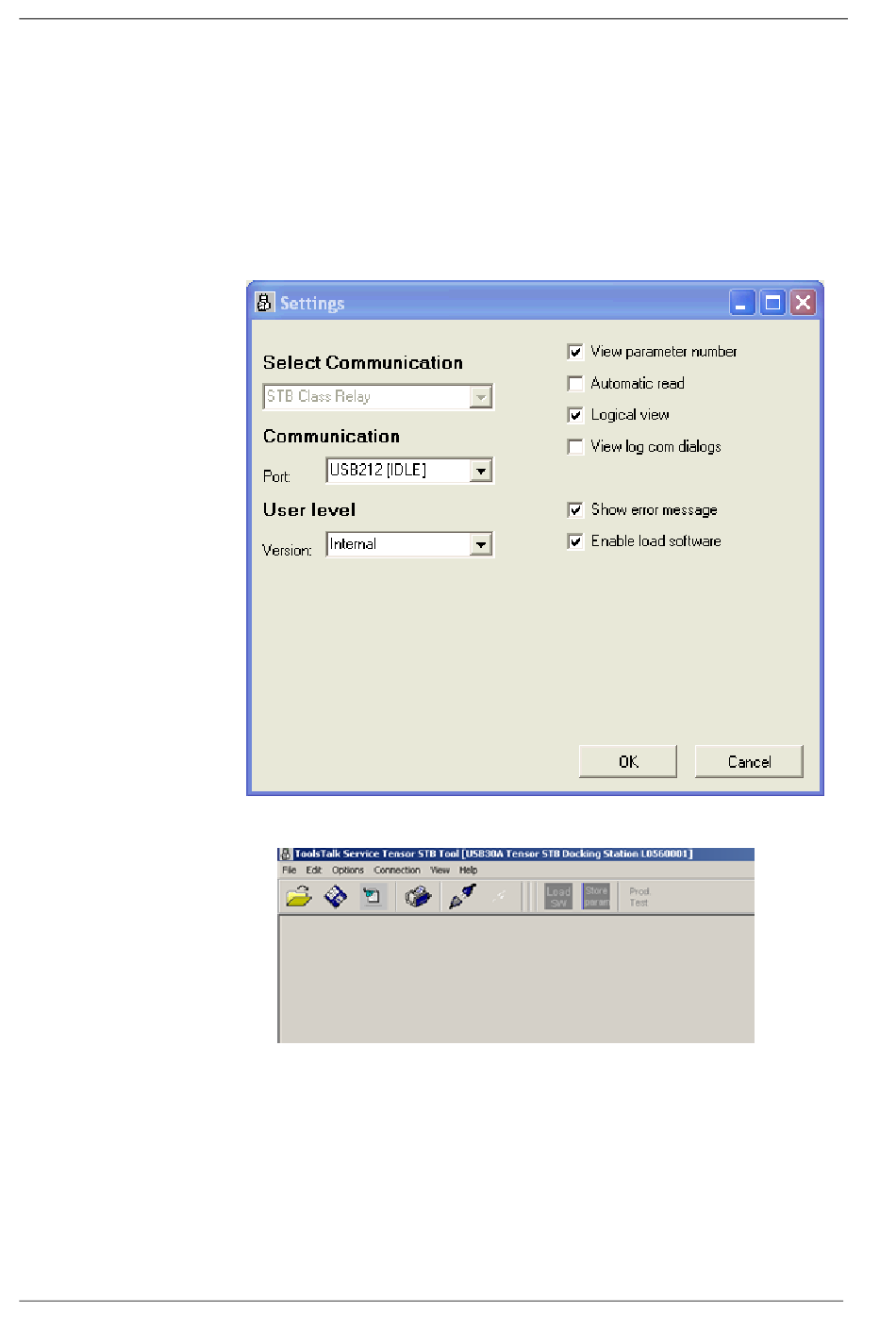

Figure 20 TTS settings
icon
Figure 21 Connect icon
. Set parameters
to the port number same as the controller parameter
106403 Remote Port
, default ..
6677
106402 Remote IP Address
to the IP address of the
T293
9836 3043 01
