System setup

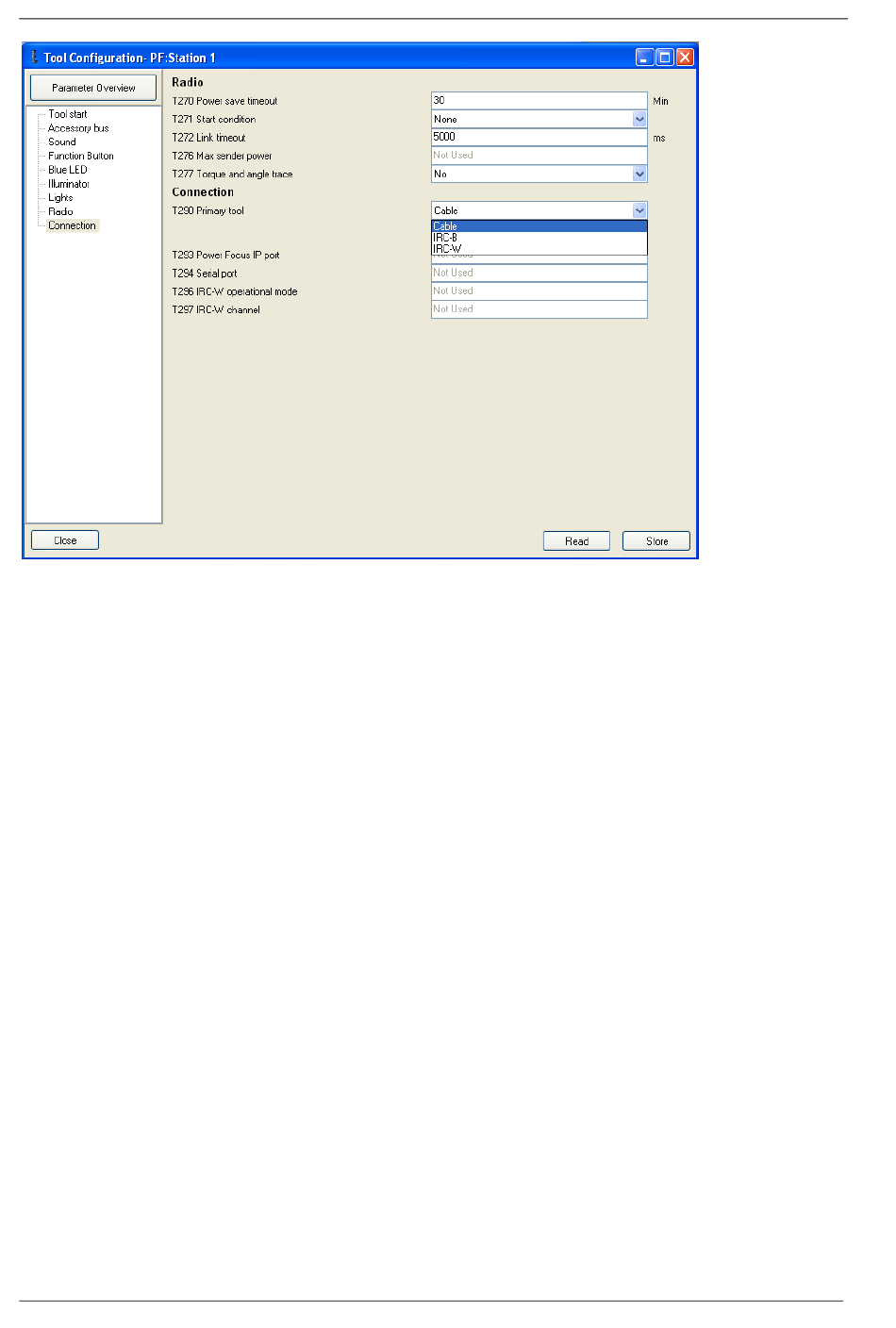

Figure 10 Tool configuration
3.5.1

Getting started with IRC-B

In ToolsTalk Power Focus do the following settings:
1. Set parameter
2. Set
T294 Serial port
3. Reboot the Power Focus.
4. Continue to section 3.6 Connecting tool with Power Focus (Pairing).
NOTE: It is possible to use a Serial Port Adapter on an IRC Focus, but the Serial Port Adapter will have
precedence and will disable the Internal radio module. Only a reboot will re-enable it.
Getting started with IRC-W – Infrastructure
3.5.2
IRC-W connection requires the following settings.
 Network settings: The network administrator must open the network for UDP traffic for the MAC
address of the STB tool.
 Supports IEEE 802.11 a/b/g/n
 Thorough frequency planning is needed for the premises
 Network settings from the administrator must be entered in ToolsTalk Service.
See section 3.8 Connecting tool with ToolsTalk Service.0
 Autentication/encryption standards supported:
 WEP: 64 (Open or shared)
 WEP 128 (Open or shared)
 WPA-PSK, TKIP
 WPA2-PSK, AES/CCMP
 LEAP,WEP128
 LEAP, TKIP
 LEAP, AES/CCMP
 PEAP, WEP128
12 (36)
to
T290 Primary tool IRC-B
to if a Serial Port Adapter is used or
Serial 2
.
for IRC Focus.
Internal
9836 3043 01
