Connecting STB tool to ToolsTalk Service
1. Place the Tensor STB tool in the Tensor STB docking station.
2. Select
Connection > Connect
The indicator on the docking station marked
See User guide for ToolsTalk Service to perform the tool programming.
Disconnecting
To finish and disconnect, follow the sequence below.

Select
Connection > Disconnect
The indicator on the docking station marked
 Disconnect the tool from the docking station.
6.2

ToolsTalk Service with Serial port adapter

For old Tensor STB32 tools which are adapted to blue tooth communication it is possible to connect to
ToolsTalk Service with the help of an IRC-B module connected to the PC with a regular RS232 serial

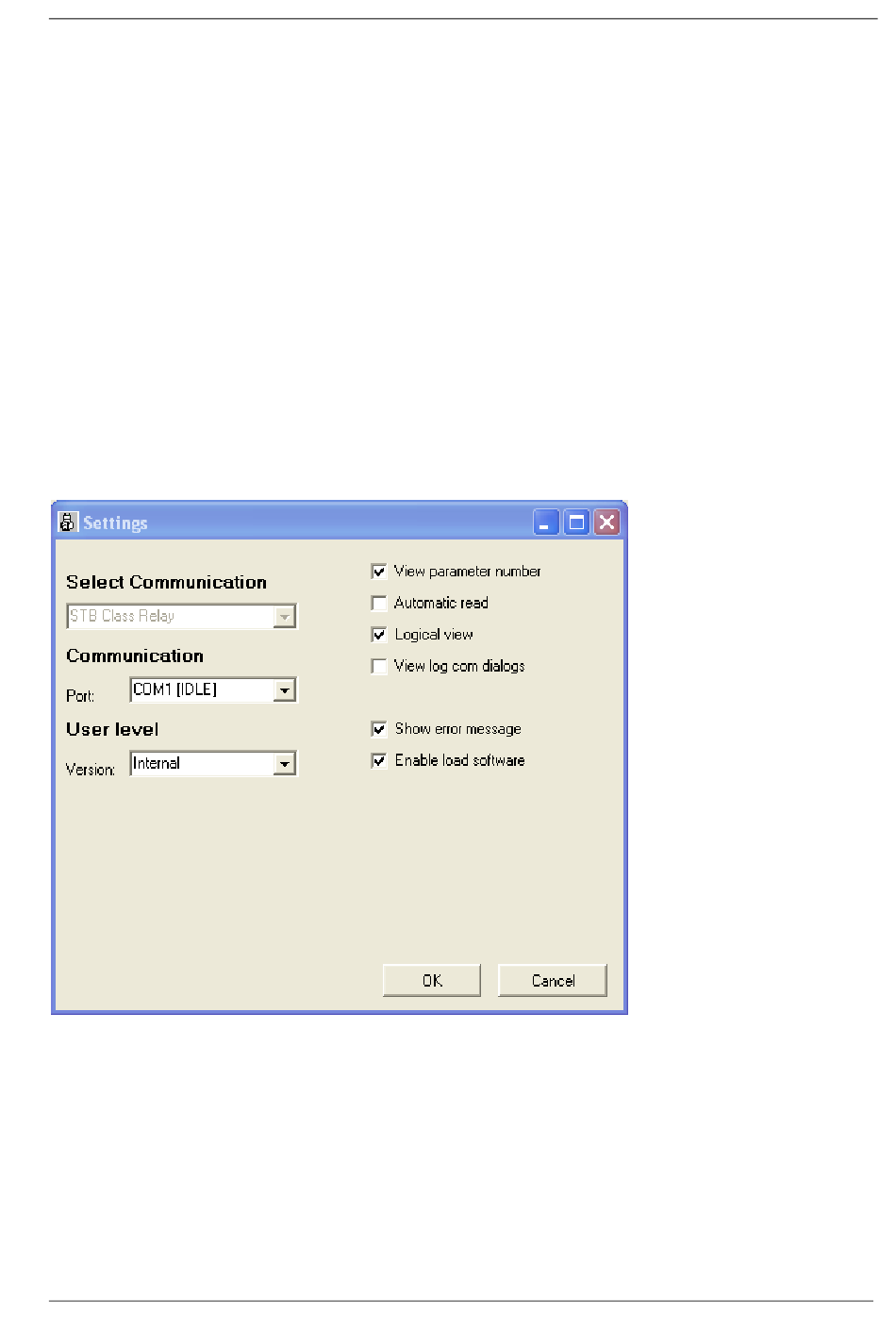

cable. In Options->Settings specify an appropriate port for the communication.
Figure 33 Connecting to Toolstalk Service with an IRC-B module
Perform a pairing with the same method as described in Section 3.6 Connecting tool with Power Focus
(Pairing).
9836 3043 01
or click the Connection button on the toolbar.
is lit and ToolsTalk Service opens the main window.
Pwr
or click the Connection button on the toolbar.
is off.
Pwr
