System setup
3.9

Other settings in ToolsTalk Power Focus

Open
Power Focus Map >
Tool > Configuration >
Radio
The following settings are
available.
Tool can be set to go into power save after a specified timeout. This function can also
T270 Power save:
be turned off.
Tool turns off after this time, if inactive. To restart, press trigger once.
T270 Power save timeout:
Connection takes approximately 10 seconds.
The start condition if using IRC connection for tool.
T271 Start condition:
 None: Up to 25 tightenings can be performed if IRC connection is lost (Blue LED off).
 Connected: IRC connection must be established (Blue LED on) to run tool.
 Start request: IRC connection must be acknowledged before start of each tightening.
: If the tool looses IRC connection it is considered offline and the connection LED (blue)
T272 Link timeout
on the tool turns off after the link timeout time.
See Parameter list.
T276 Max sender power.
T277 Torque and angle trace:
 None: No traces will be available in the Power Focus. NOTE: This is the default value.
 All: Both torque and angle trace will be available in the Power Focus
 Not OK: Only NOK traces will be present in the Power Focus.
Tool can be configured how the tool lock shall behave:
T279 Delay lock tool:
 Yes: If the lock condition occurs during ongoing tightening the lock will be executed after
tightening completion
 No: If the lock condition occurs during ongoing tightening the lock will be executed immediately
(provided the tool is in radio range).
3.9.1

Batch count

Batch count is supported by the Tensor STB tool family according to the functionality described in the
Power Focus User guide, 9836 3123 01 with the following exceptions in standalone mode:

Batch count will only work for the first Pset programmed in the tool, even if the tool has more
than 1 Pset

If batch count also counts NOK tightenings the NxOK led on the tool will blink upon completion
of the batch
21 (36)

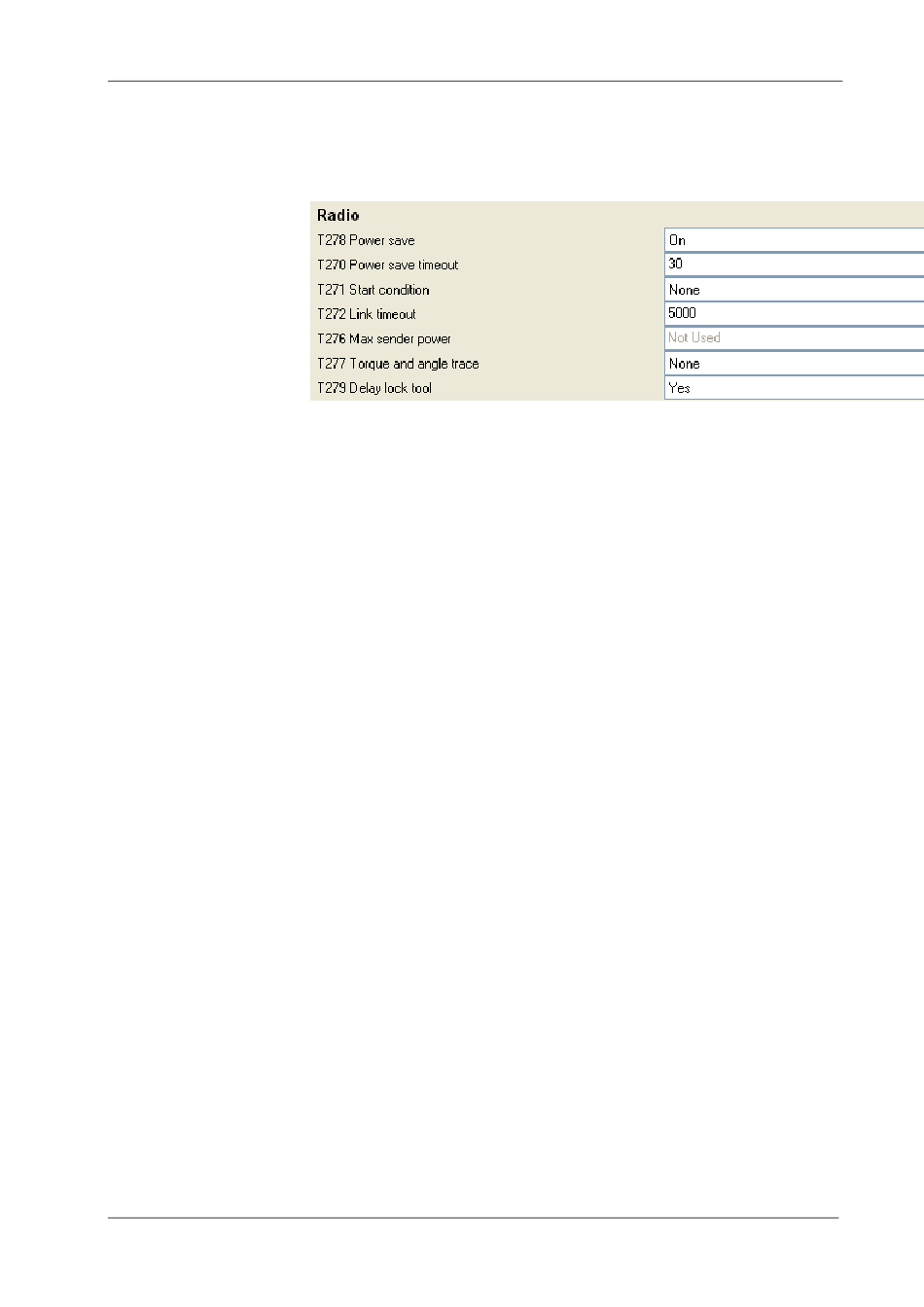

Figure 25 Radio settings
Up to 10 traces can be stored in the tool. The following selections exist.
