System setup
3.6

Connecting tool with Power Focus (Pairing)

The Power Focus and the tool need to be paired together in order to establish the IRC-B or IRC-W ad hoc
connection. This is not needed when running in infrastructure mode.
1. Disconnect the (charged) battery from the tool.
2. Press the tool trigger while reattaching the battery.
3. When the tool LEDs are off, release the tool trigger.
4. When the tool LEDs are on again, press the tool trigger.
5. When the tool LEDs are off again, release the tool trigger. Both LEDs start
to flash (after approximately 10 seconds).
Do not start the Power Focus pairing procedure before both LEDs on tool are flashing.
Initiate pairing within 30s or the tool might time out.
Power Focus Compact or IRC Compact:
1. Press the F-button 10 times (
2. Press the return-key to confirm the selection.
Power Focus Graph or IRC Graph:
1. Press
PROG > Tool > Configuration > Connection > IRC Pairing > right arrow
2. Press the soft key marked
3. Press to exit setup.
OK
ToolsTalk Power Focus:

Select
Power Focus Map > Tool > Configuration > Radio > IRC pairing
Wait a few seconds until the blue connection LEDs on the
tool and the Serial Port Adapter (if used) are on.
The pairing is consistent until the tool or the
Serial Port Adapter is replaced.
Event E559 indicates a successful pairing completed and event E550 indicates connection with the tool.
The connection to Power Focus is established within one minute.
14 (36)
).
F10
to confirm the selection.
Start

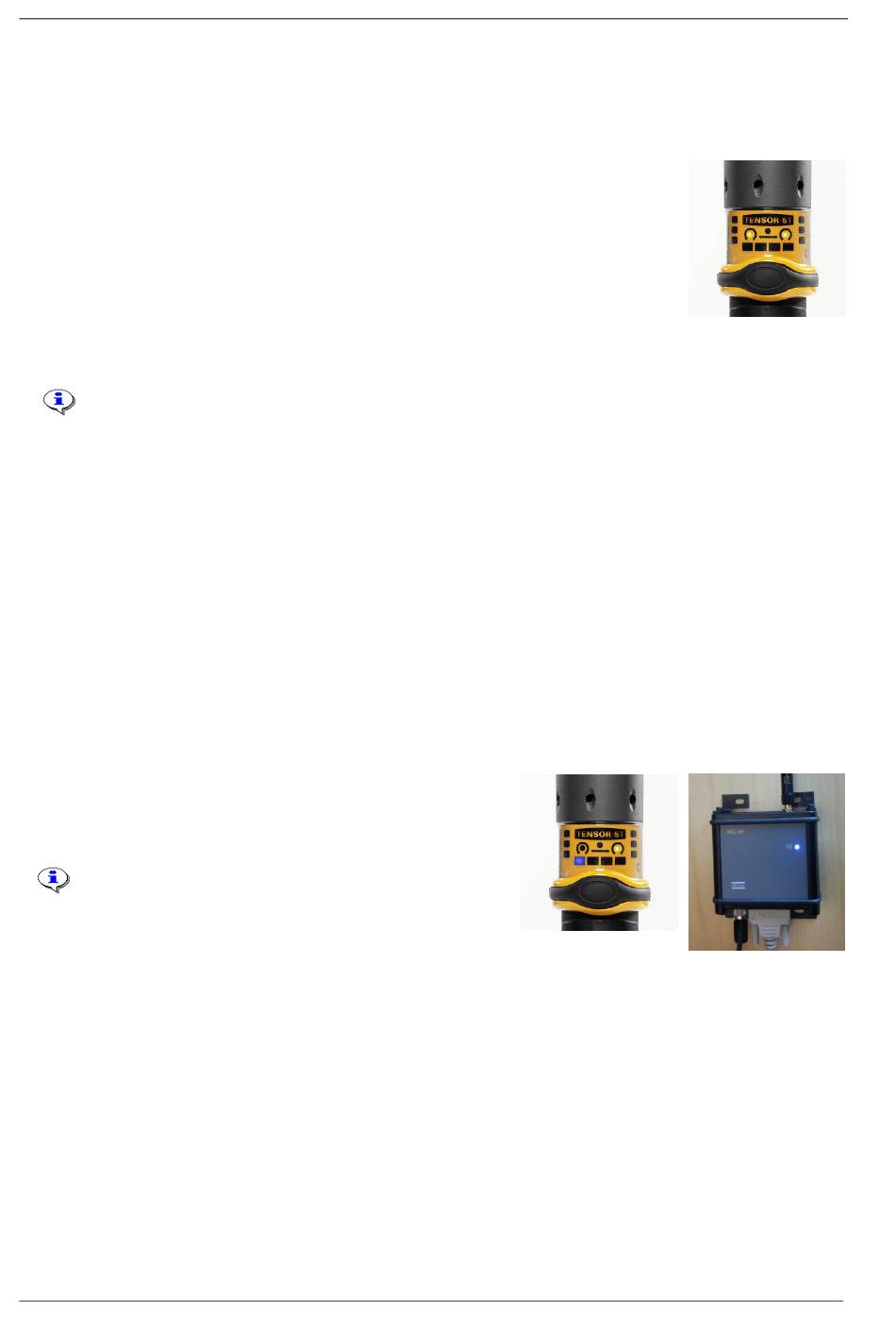

Figure 11 LED on
Figure 12
Connection LED on
Figure 13
tool
Connection LED on,
Serial Port Adapter
9836 3043 01
