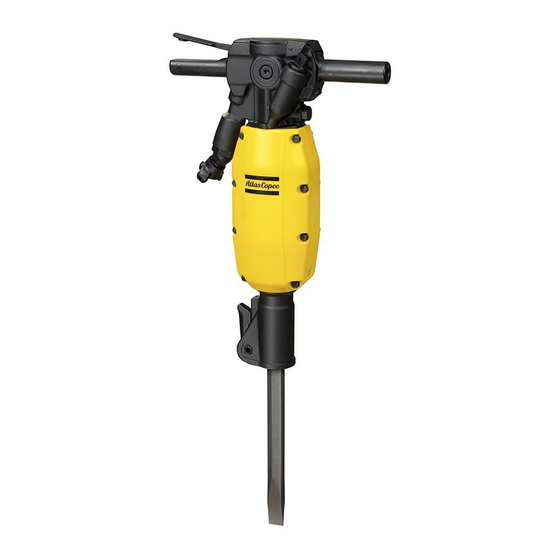

Atlas Copco TEX 140PS Overhaul Instructions
Pneumatic breakers
Hide thumbs
Also See for TEX 140PS:
- Safety and operating instructions manual (228 pages) ,
- Safety and operating instructions manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco TEX 140PS
Summary of Contents for Atlas Copco TEX 140PS
- Page 1 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Pneumatic breakers © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01 2007-10-01...
-
Page 3: Table Of Contents
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Contents Contents SAFETY INSTRUCTIONS ............5 Safety symbols used . - Page 4 TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work.
-
Page 5: Safety Instructions
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions SAFETY INSTRUCTIONS Drugs, alcohol or medication Drugs, alcohol or medication may impair your To reduce risk of serious injury or death to yourself judgment and powers of concentration. or others, read these safety instructions before WARNING Poor reactions and incorrect operating or servicing the machine. -
Page 6: Machine Overview
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Machine overview Valve housing Main valve Cylinder Main parts Piston Intermediate part For a complete overview of all parts see the Spare parts list. Tool chuck Design and function... -
Page 7: Overhaul
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Overhaul Drop the piston into the cylinder. If there is a contact sound between the piston and the intermediate part, then replace the After each operating period of approximately 150 intermediate part and proceed to point 2. -
Page 8: Disassembly
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Disassembly Handles Silencer Cover © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01 2007-10-01... -
Page 9: Valve
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Valve © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01 2007-10-01... -
Page 10: Lubricator
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Air inlet Lubricator © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01 2007-10-01... -
Page 11: Tool Retainer
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Tool retainer Piston © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01 2007-10-01... -
Page 12: Intermediate Part
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Intermediate part Checking the function of the piston Drop the piston into the cylinder. If there is a contact sound between the piston and the intermediate part, then replace the intermediate part and proceed to point 2. -
Page 13: Tool Chuck
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Tool chuck Assembly Before re-assembly do the following: Properly clean all parts of the machine. tons Oil all parts of the machine. Replace all O-rings. Replace all worn or damaged parts. -
Page 14: Intermediate Part
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Intermediate part tons Put grease on the inside of the intermediate part and slide it onto the piston. © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01... -
Page 15: Piston
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Piston Tool retainer Insert the spring pin with the opening pointing in a 45° angle downwards and outwards. Air inlet © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01... -
Page 16: Lubricator
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Use Loctite® 243™. Lubricator If the dosing feeder was removed during disassembly, then scrap the old dosing feeder and replace it with a new one. Valve Tightening torque, 200 Nm. -
Page 17: Handles
TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Overhaul instructions Handles Tightening torque, 47 Nm. Cover Screw the guide shaft (A) onto the mandrel (B) ( 3310 1543 00). © 2007 Atlas Copco Construction Tools AB No. 9800 0800 01... -
Page 18: Silencer
Overhaul instructions TEX 140PS 150PE 180PS 190PE 220PS 230PE 270PS 280PE Disposal A used machine must be treated and disposed of in such a way that the greatest possible portion of the material can be recycled and any negative influence on the environment is kept as low as possible. - Page 20 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings. www.atlascopco.com...
