System setup
3.7

Setting up standalone

This can be done after setting up the tool communication according to section 3.5
and performing a pairing. Standalone mode can be configured preferably when working
communication
with IRC-B or IRC-W ad-hoc mode.
3.7.1

Getting started with Standalone

The STB power tool can be used in standalone mode, i.e., without being connected to the controller.
To setup the tool in standalone mode follow this instruction:
1. Start by pairing the tool and controller.
2.
In the PF Map Tool branch, double-click on
Standalone settings.

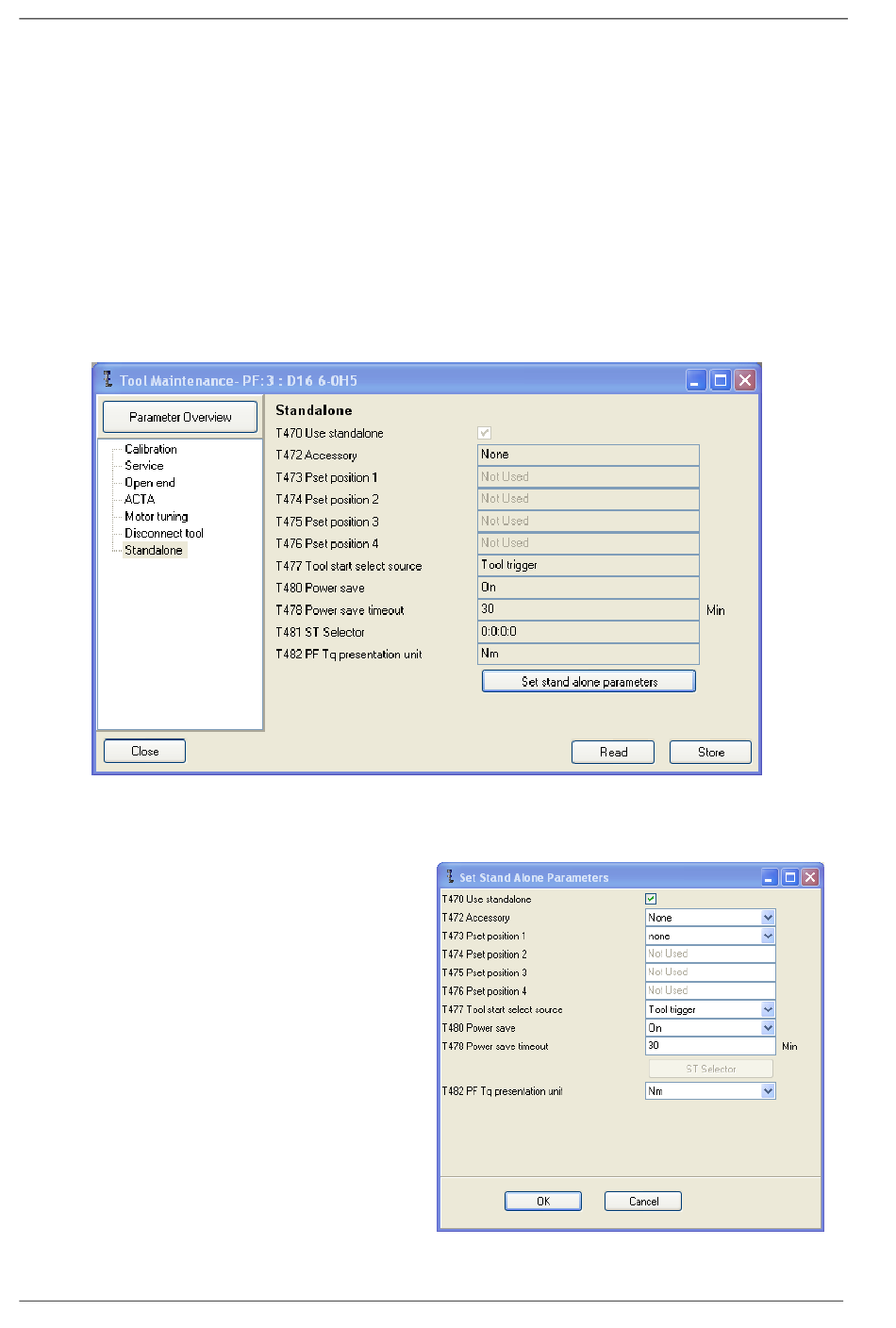

Figure 16 Standalone parameter settings
3. To edit the standalone parameters click Set
stand alone parameters.
4. In the
Set Stand Alone Parameters
box select the
and then select type of accessory.

None: Only one Pset can be used.

ST Selector: Up to four Psets are
available. The ST Selector must be
set to mode 1. To set up the ST
Selector, please refer to section
3.7.2 Setting ST-selector in stand-
alone modeFel! Hittar inte
referenskälla..

GPIO: Up to four Psets are
available.
5. Select a Pset for each position.
6. Click when finished to store the
OK
standalone configuration to tool.
16 (36)
dialog
check box,
Use standalone
and then click
Maintenance
Figure 17 Standalone parameter settings
Setting up tool
to view the
Standalone
´
